Claypaky is on the ‘A Team’ for Ed Sheeran world tour

Claypaky is on the ‘A Team’ for Ed Sheeran world tour

Year

2017

Location

United Kingdom

Photo credits

Ralph Larmann

Lighting designer

Production Designer: Mark Cunniffe - Lighting Director: Matt Jones

Production/Rental

Lights Control Rigging (LCR)

Related products

posted: July 18, 2017

UK – The Claypaky Scenius Unico and Claypaky Mythos2 have been selected by award-winning lighting and production designer Mark Cunniffe and lighting director Matt Jones as the workhorse fixtures for multi-award-winning artist Ed Sheeran in his current record-breaking worldwide new album tour.

Cunniffe has been working with Ed since the artist began touring in 2011, developing a close creative partnership that has evolved over time as the star’s music has spread to reach international acclaim.

“The first thing that we created for Ed was so small it fitted into the back of a truck,” says Cunniffe. “Since then the shows have grown to reflect Ed’s natural career progression. For this tour, we wanted a show that could go from arena to stadium. We wanted it to play as wide as it possibly could.”

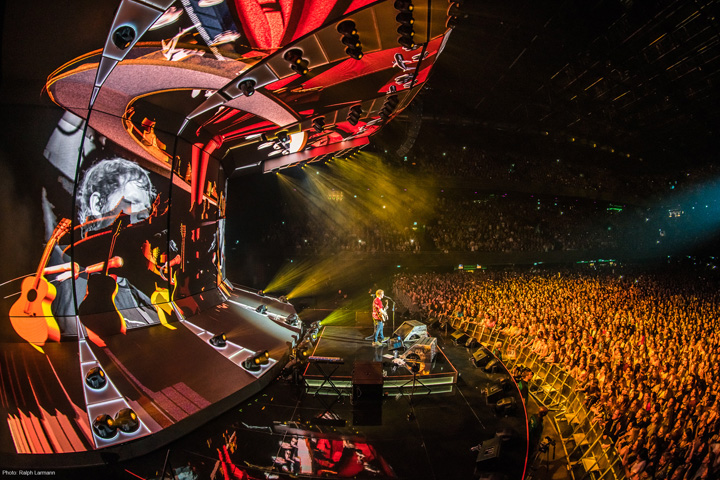

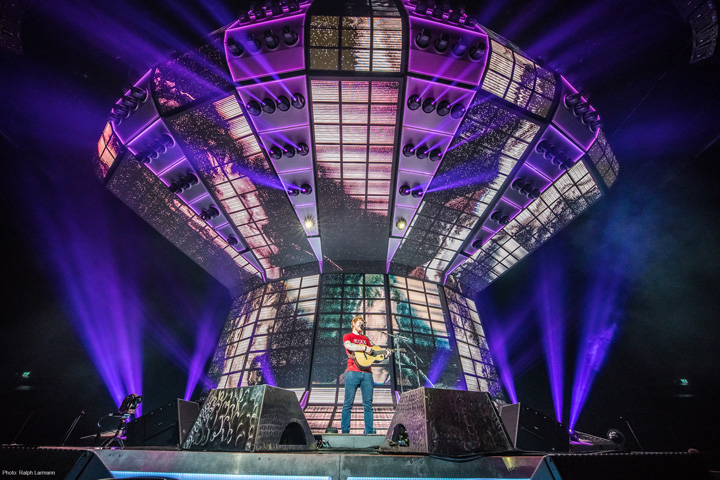

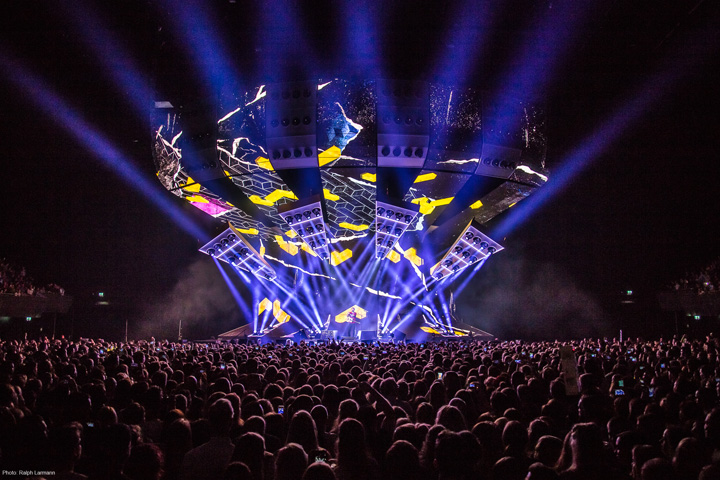

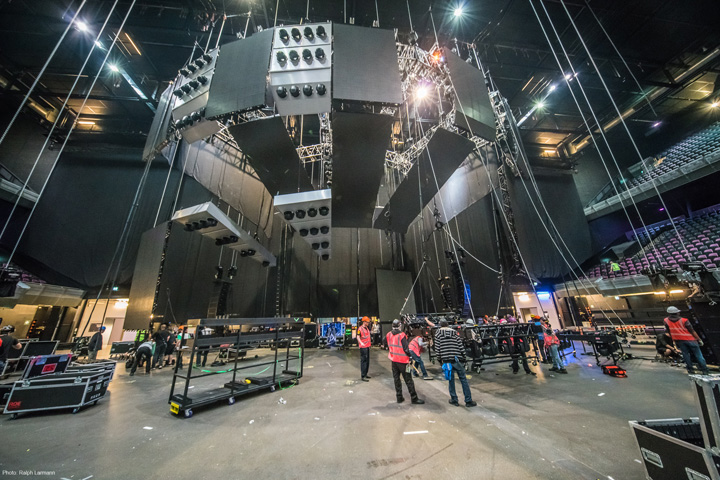

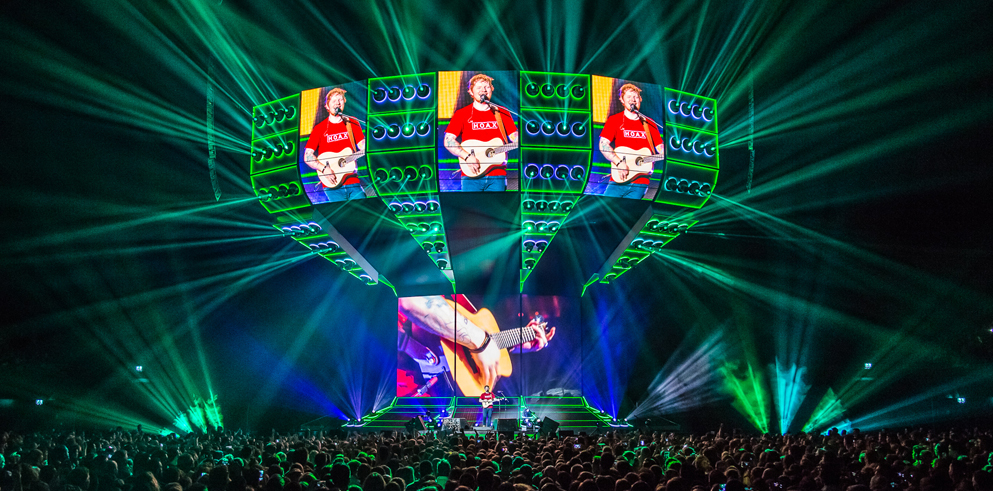

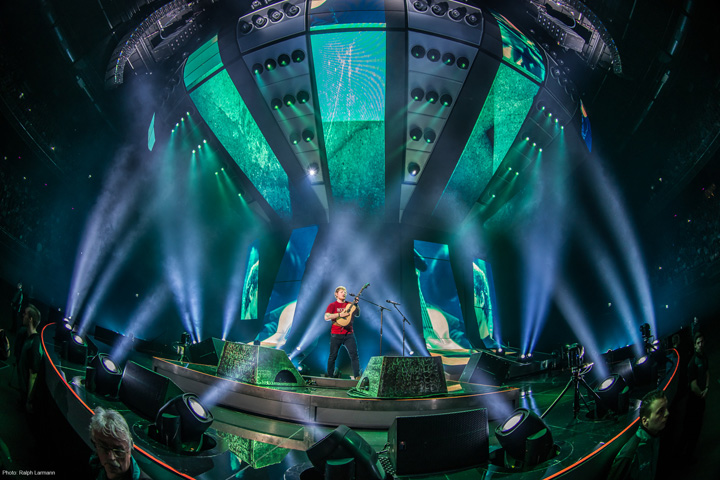

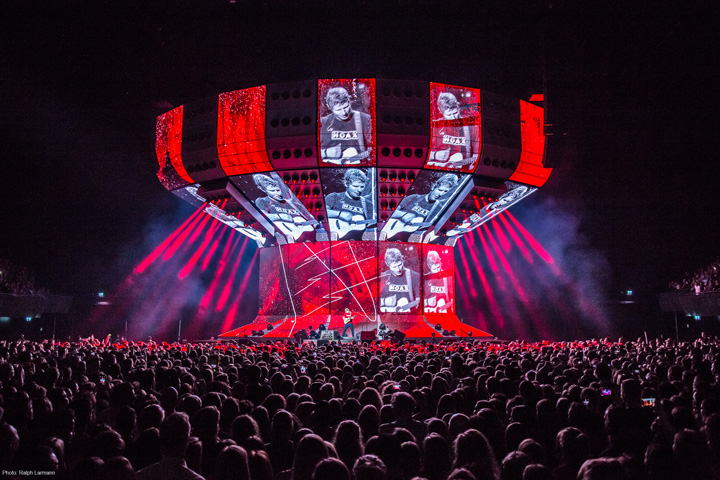

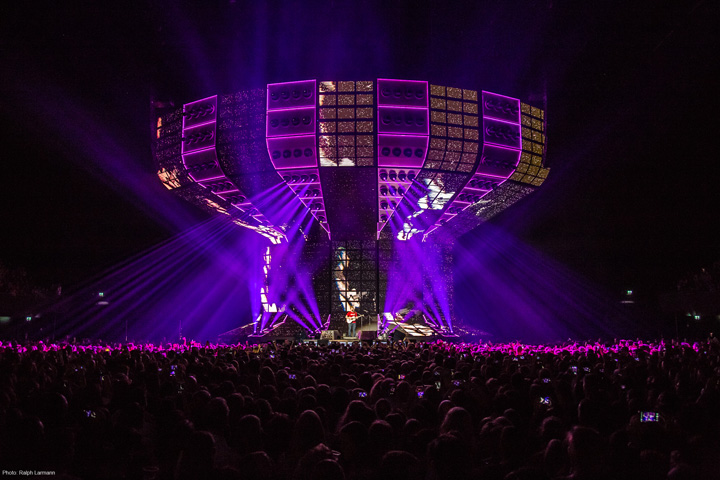

To achieve this, Cunniffe designed a goblet-shaped set, fondly named ‘the chalice’ by the designer who worked closely with Production Manager Chris Marsh and Jeremy Lloyd from international technical production practice, Wonder Works, in blue-printing the construction of the concept. The chalice comprises five curved video screens that begin at stage level and run up a central stem to flare out to create a live stage ‘ceiling’ of video and light before curving upward again to form a top rim. The structure was engineered by Tait Industries.

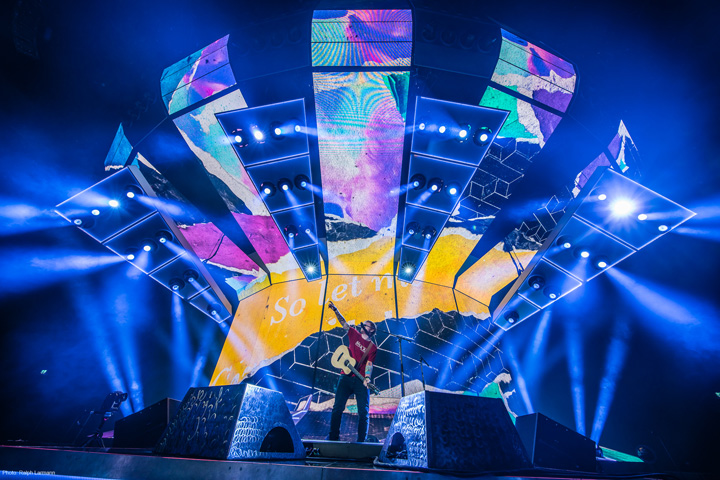

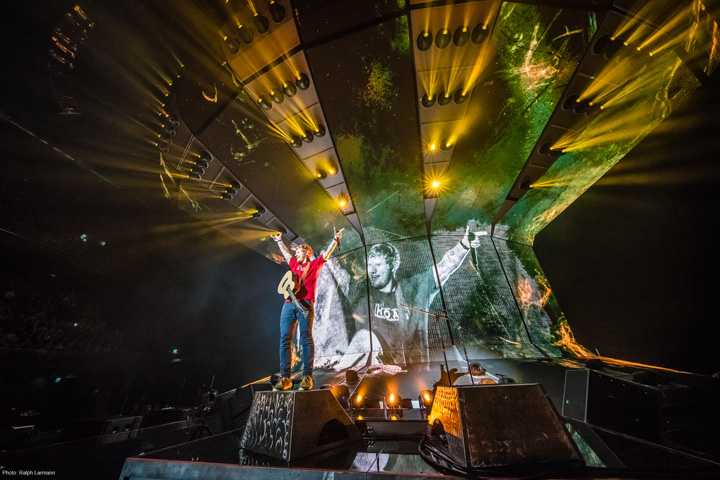

Between each of the video screens forming the chalice’s ceiling is a triangular pod – there are four in total - containing 10 Mythos2. Each pod moves in and out of the set via a Kinesys system recommended by Mike Oates, director of the tour’s lighting equipment and crew supplier Lights Control Rigging (LCR), who are working in conjunction with SES in the US.

One of the driving factors behind choosing the Mythos2 was its size,” says Cunniffe. “I knew I could hang the fixture on its side - it’s relatively light and it can fit through an aperture. I can hide 30% to 40% of the unit behind the structure and you just see the aperture and the lens. It looks as though it’s built into the production, as opposed to being hung on it.”

Sixteen Scenius Unico are also hidden in the mother gird in four trusses of four, with a further four fixtures positioned on either side of the stage.

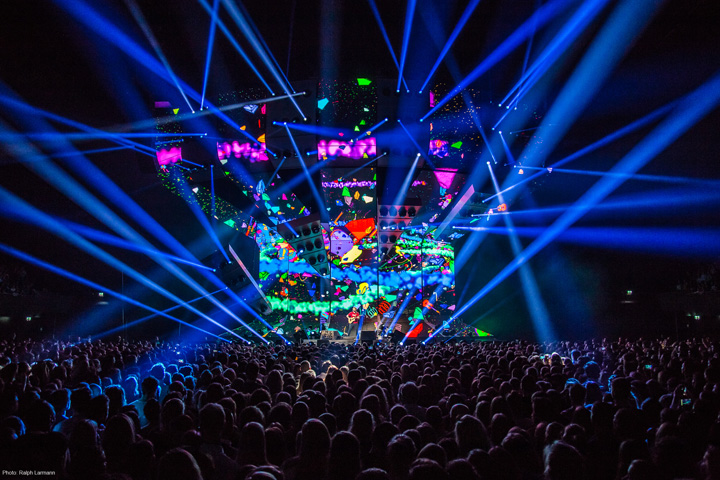

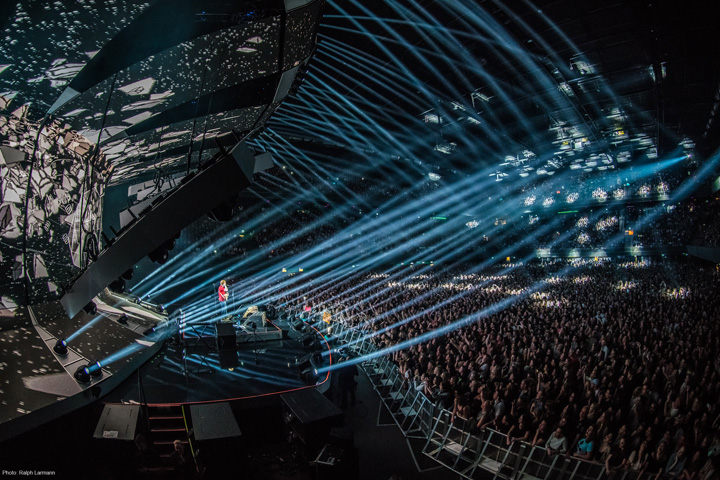

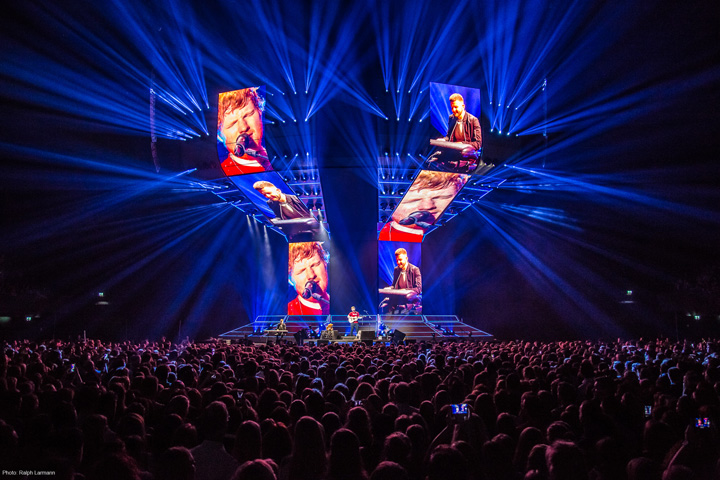

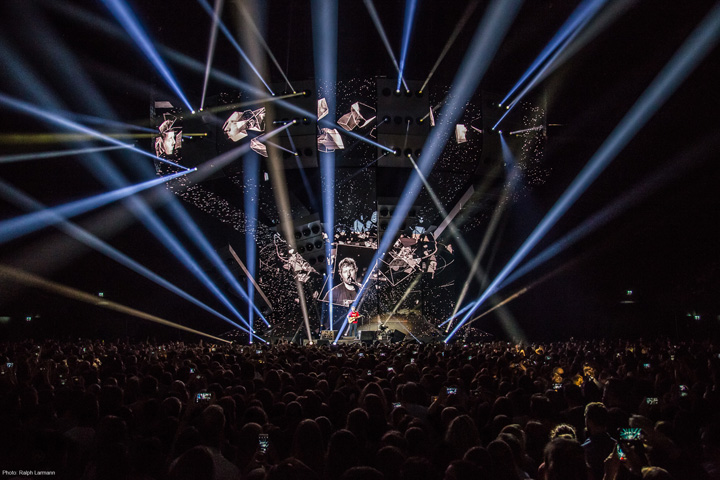

“When the lighting pods come in, upstage of that are four linear trusses with 24 of the Scenius Unicos that shine through the holes,” says Cunniffe. “However, you can’t see source, as the source is 56ft high. What you can see are the beams of light. It’s a secondary level of lighting that’s not visible.”

Discussing why he chose Claypaky’s multi-functional Spot and Wash light, Cunniffe says, “The Scenius Unico is the midpoint between theatre and rock and roll, so it has a bright beam, it’s at least twice the size of the Mythos and it has full shuttering. I think the Scenius Unico is a fantastic stadium profile, because it’s so bright and has such an advanced shuttering system. It just has a bigger presence.”

Adding to Cunniffe’s reasoning behind the selection of the Scenius Unico is Jones who, as the tour’s lighting director, is in direct contact with the units nearly every day.

“What is useful about the Scenius Unicos is that they offer us a dynamic output; they can go from a wide flood to a narrow spot,” says Jones. “The fixture’s shaping system also allows us to go wide with the fixture and still trim down the horizontal plane of the beam.”

Lastly, in order not to undermine the production’s attention-grabbing video content created by Montreal-based Moment Factory and Bristol, UK-based Shop, Jones and Cunniffe were keen to access fixtures able to provide a smooth and reliable dimming curve, devoid of any flickering.

“Ed is just one man on stage with a guitar, so what happens on stage in terms of light and video is extremely important,” adds Jones. “The audience would notice an imperfect dimmer curve. The Mythos2 dimmer curve is doing a great job of being uniform. It does well down at the low end, and it does well quite high too. Overall, equipment-wise it’s been a pleasure to work with the Claypaky fixtures - they just have great dynamics.”

Cunniffe agrees, “They’re a great bunch of people at Claypaky, and they’ve designed some really good products. They asked me for my input when designing both the Mythos and the Scenius Unico. I worked closely with Francesco Romagnoli, Paolo Dozzo and Marco Zucchinali at Claypaky who listened and incorporated my resulting opinions into their final product design, for which I will be forever grateful.”

The Ed Sheeran world tour is currently in South America. Following his headline slot at Glastonbury 2017, the US leg of the tour will commence in Kansas City on 29 June. The artist’s third studio album, Divide, has reached number one in 14 countries.

Contact: Davide Barbetta davide.barbetta@claypaky.it
