Mini-B Aqua

CL3026
Claypaky Mini-B Aqua

The Mini-B Aqua is IP66 protection rated, making it suitable for outdoor use. However, it is also ideal for indoor installation since it does not require the same maintenance as ordinary IP20 fixtures thanks to the total protection of its internal components against dust.

Mini-B Aqua offers all the features that made its twin – the Mini-B – successful in optics, electronics, effects, and performance. The two fixtures are even perfectly interchangeable on the lighting rig! Its light source is based on 40W RGBW LEDs. Combined with a Claypaky optical unit which includes a collimator and seven surface lenses, these LEDs produce a highly efficient light output with low power consumption. The central LED can be controlled separately from the outer ring for striking frontal visual effects.

The fixture comes complete with fifty pre-installed color macros. It has linear electronic color temperature correction from 2500K to 8000K. The crossfade channels between color and CTO and between macros allow a linear transition from the pre-set whites to any RGBW value or a smooth transition between various color macros.

The Mini-B Aqua has features typical of more expensive, larger units, like the five-curve, 24-bit electronic dimmer that maintains balanced colors throughout its dimming range. It also features a wide zoom, ranging from 4° to 55°, that makes this little luminaire extremely versatile.

Thanks to its compact size and lightweight, the pan and tilt movements can be driven at high speed and used to create exciting moving light effects ideal for rock concerts.

The Mini-B Aqua is the lightweight, versatile, weather-resistant washlight everyone has been waiting for, ideal for every use and stage, indoors and out.

  • Light Source
    7 x 40W RGBW Osram Ostar LEDs (7000K)
  • Light Output
    3,420 lm

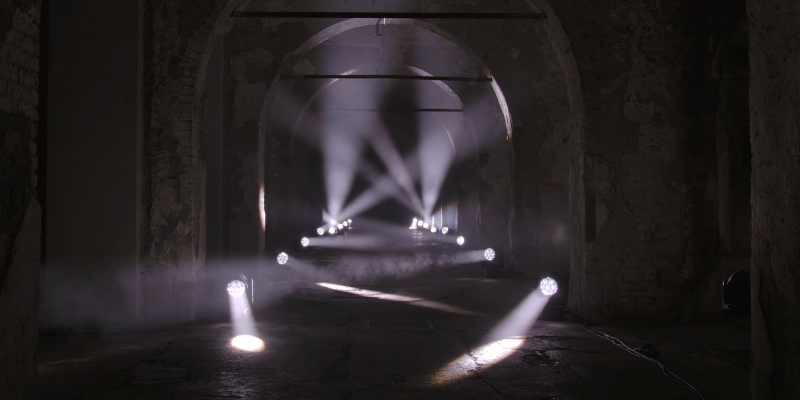

  • Zoom range
    4° to 55°
  • Effects
    5-curve, 24-bit digital dimmer with output color balance; Independent control of the central LED; Pre-installed color macros; 2500K-8000K linear CTO; Crossfade channels between color and CTO, and between macros; Electronic strobe @ 25 f/sec; 4 Operating modes.
Data Sheet DMX Channels Photometrics PDF

Highlights

Specs

Save as pdf and print

LIGHT SOURCE TYPE

  • 7x Osram 40W RGBW LEDs
  • LED life expectancy: 50000Hrs (20000 L70*)
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 55°
  • 3420 Lumen Output
  • Front lens assembly diameter: 153mm
  • High efficiency optical system

NOISE LEVEL

  • SLN fan mode: 40.2 dBA
  • AUTO fan mode: 46.0 dBA
  • Theatre fan mode: 46.8 dBA
  • Constant fan mode: 50.3 dBA

CONTROL and CONNECTIONS

  • Personalities: four modes with 17/21/21/29 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours:
    • RGB+W colour mixing 16bit
    • Linear 16bit CTO 2500K to 8000K
    • Preset macro colors
  • Movement:
    • Tilt: 260° - 16bit (3.5 sec Max speed)
    • Pan: 540° - 16bit (5.4 sec Max speed)
    • Automatic repositioning
    • Fast/Normal/Boost speed selectable by Function channel
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit, 5 curves
    • High speed electronic Strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic handles and glass cover
  • Two side handles for transportation (standard)
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 2300VA, 6(2) fixtures @ 200-240Vac (@ 100-120Vac); Max 8.25A
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 375W

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T6.3A – 250V + battery fuse
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (6 positions)

WEIGHT - SIZE

  • 12.7 Kg (27.9 lbs)
  • 194x331mm (base dimension) – 415mm with vertical head (h)
  • Distance between two fixtures 400mm

ACCESSORIES

  • Power cord: CAB02B-802 (included)
  • Omega clamp: 1x 433060-801 (included)
  • Foam shell: F21339-001 (optional)
  • Flight case with 6 foam shell: CF1023F (optional)
  • Safety Chain: 105015-802 (optional)
  • Clamp: C21070 (optional)
  • PowerCon True1 connector: CON00O (optional)
