The new Claypaky B-EYE Family
Discover Claypaky’s next-generation RGBL ecosystem: a family of IP66 multilens moving heads engineered to deliver unmatched color consistency, fast and endless motion, and powerful creative performance across every stage size. From the ultra-compact B-EYE 7 to the bigger B-EYE K30, every fixture speaks the same visual language.
The B-EYE Multilens Family is a fully modernized multilens platform. A new RGBL color engine with an extended gamut, richer pastels, and improved whites; new optics and mechanics; a new movement architecture with fast, endless motion across the range; and one optical philosophy built on pixel mapping, fast zoom, and multi-layer effects.
The result is consistent performance from the smallest wash to the biggest, all IP66-rated for true all-weather use.
Whatever your stage, scale, or weather, the B-EYE Multilens Family brings your creative vision to life.
-
The RGBL Color Engine
Every fixture in the family runs the same RGBL color engine (Red, Green, Blue, and Lime) for an extended gamut, richer pastels, improved white calibration, and a CRI greater than 82. Color matching is consistent across every model, on stage and on camera.
-
Pixel Mapping & Multi-Layer Effects

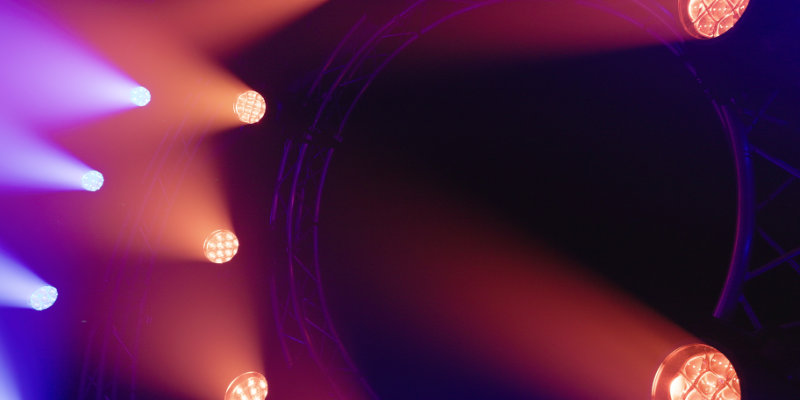

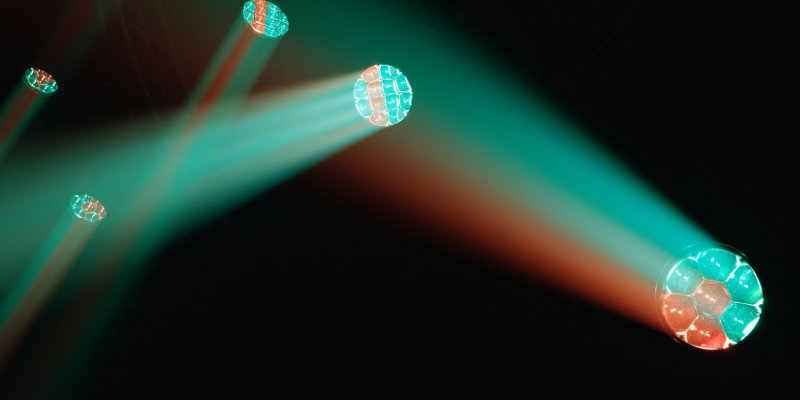

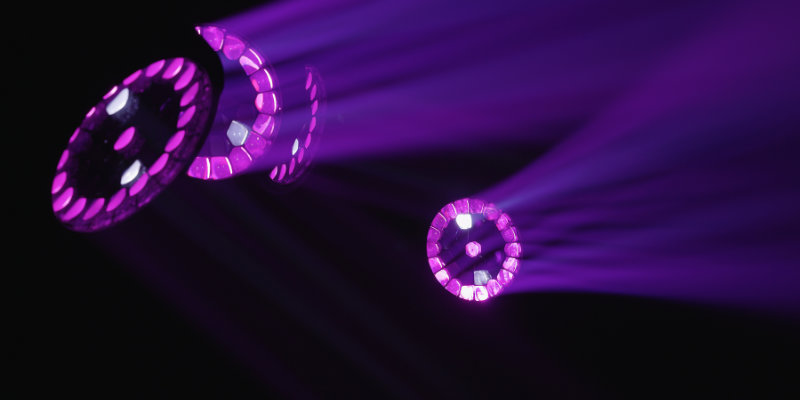

Individually controllable RGBL sources turn each fixture into a built-in effects engine for dynamic color chases, split-beam looks, and video-style content, with multi-layer FX that scale from the smallest wash to the flagship.
-
Fast & Endless Motion

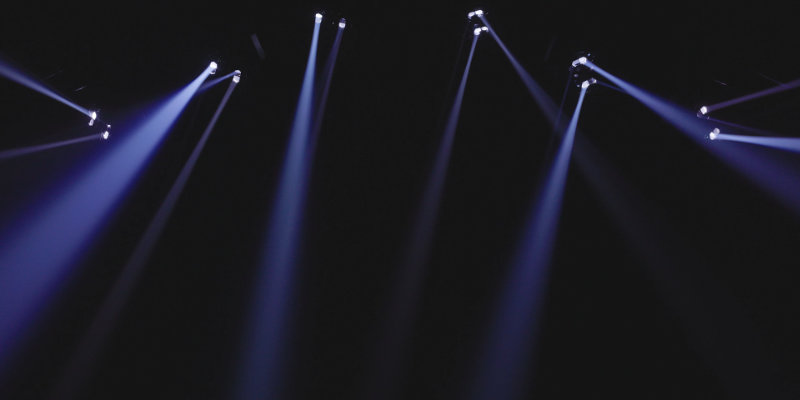

A new movement architecture brings ultra-fast zoom and endless Pan & Tilt rotation across the range, unlocking instant transitions, continuous spins, and kinetic looks.
-

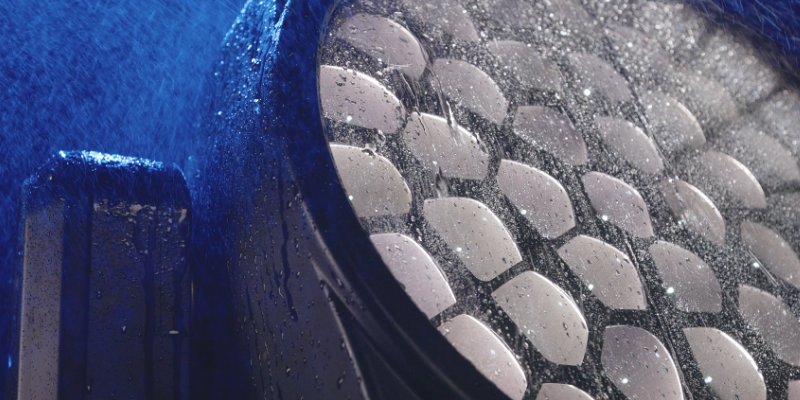

IP66-Rated. Built for the Elements
Part of Claypaky’s Shield Family, every B-EYE Multilens fixture is fully sealed against water and dust, with anti-condensation optics and Sun Safe Protection — ready for outdoor festivals, touring, and permanent installations.
-
Versatility that Scales
From compact rigs to flagship touring setups, the family scales without breaking the look. Build a fleet around one platform and deploy the right format for every job.

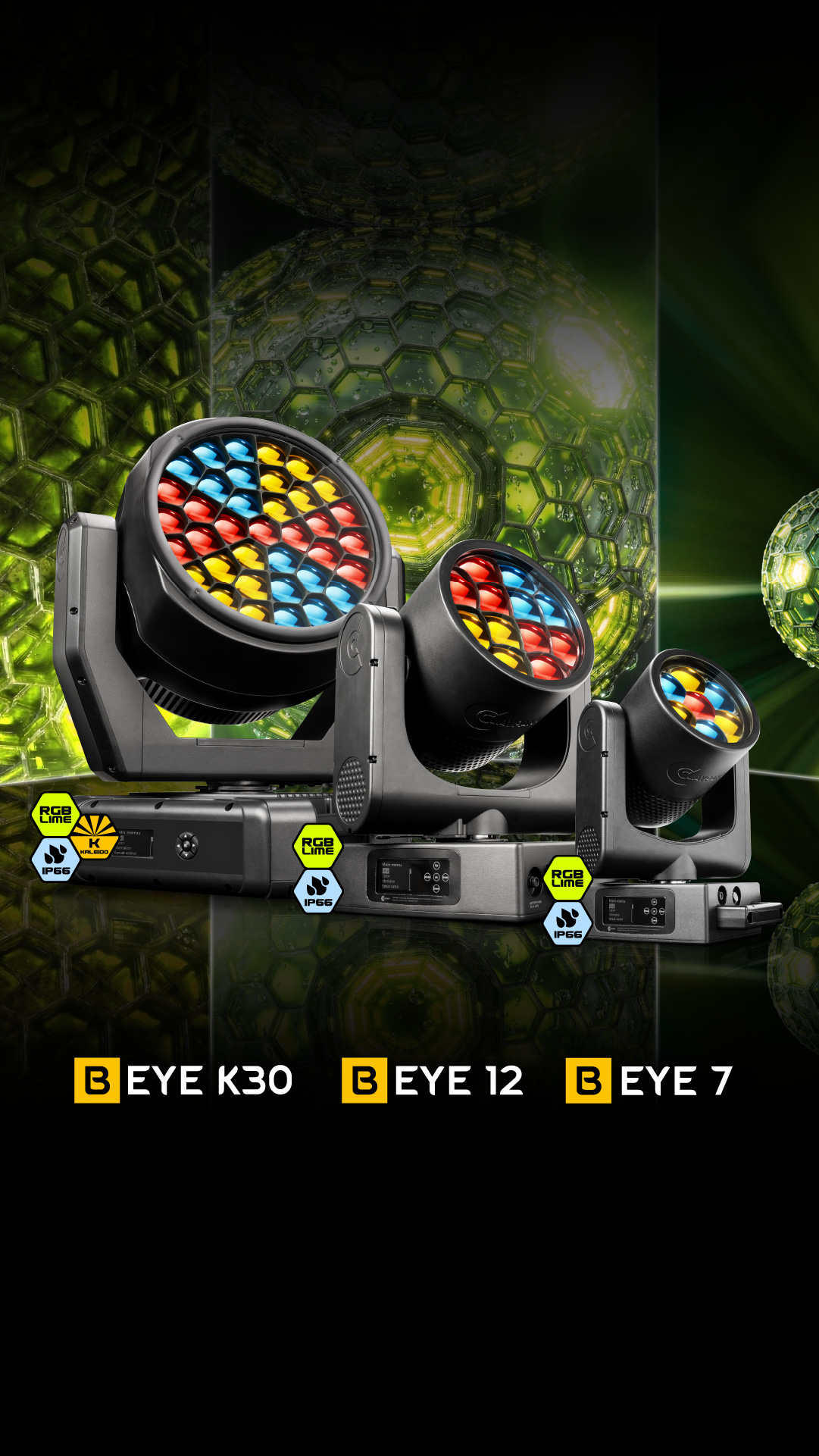

Meet the new B-EYE Family Members

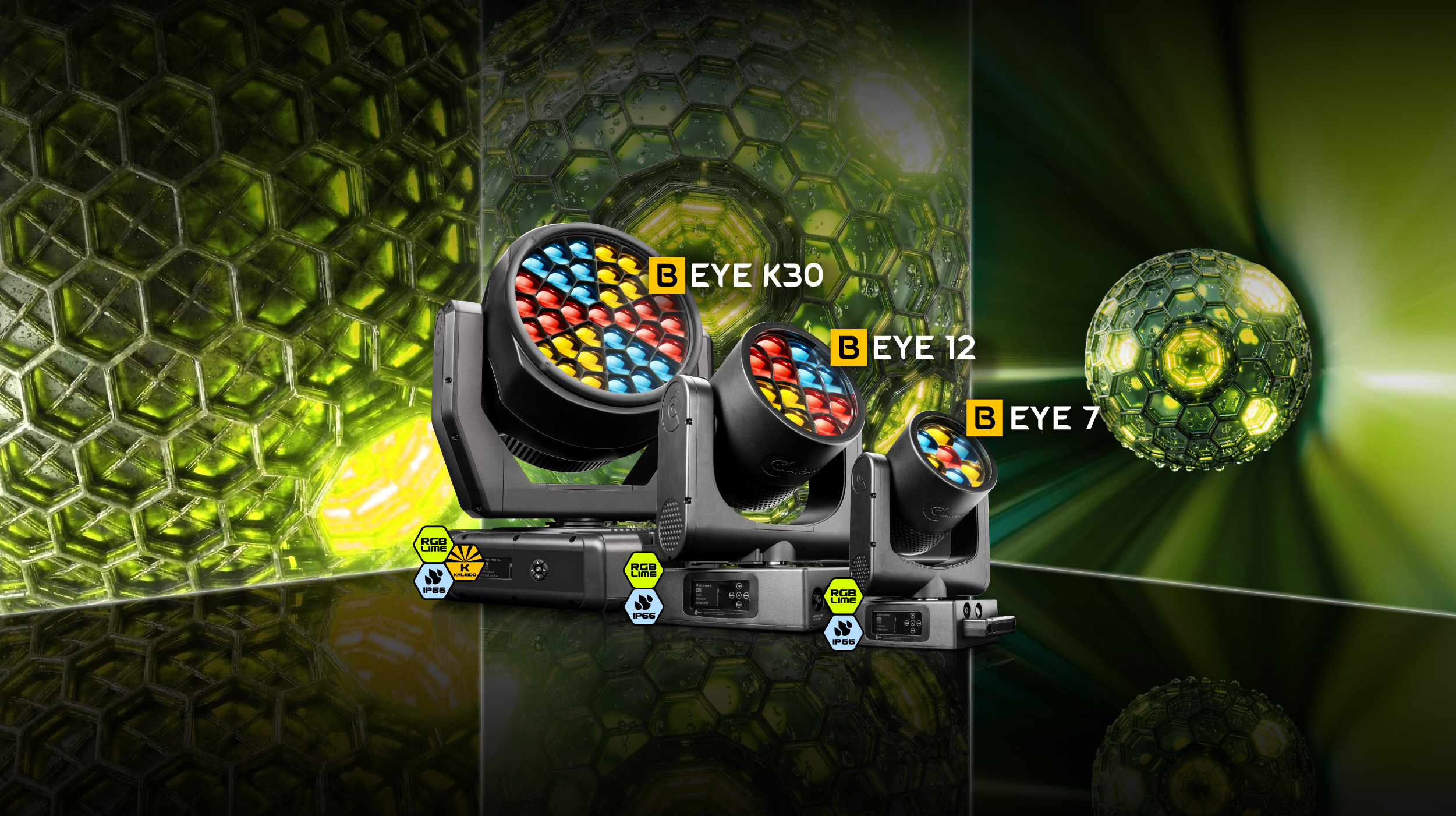

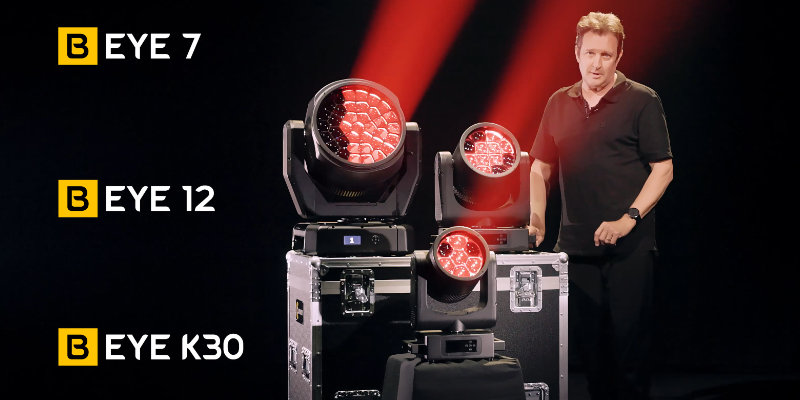

The B-EYE Multilens Family launches with three RGBL multi-lens moving heads: the ultra-compact B-EYE 7, the mid-size B-EYE 12, and the large-format B-EYE K30, each built on the same color and control platform, at different scales.

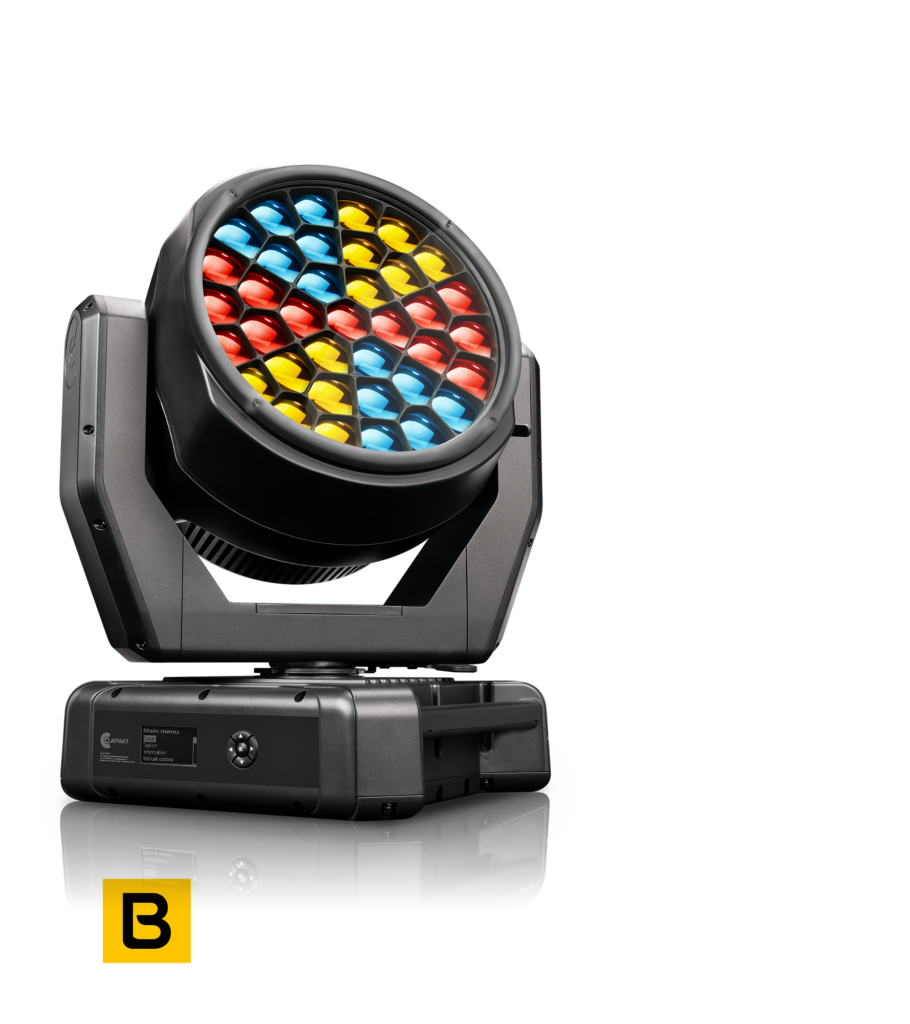

More RGBL output, zero compromise on color.

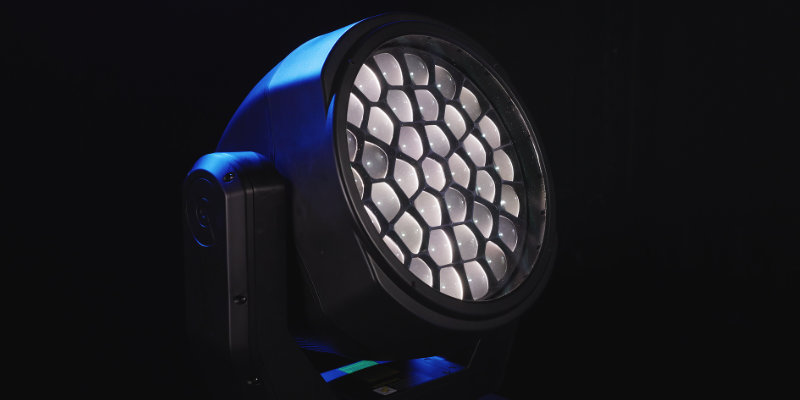

• 37 x 55W RGBL LED sources, all individually controllable
• up to 28,000 lm output
• 330 mm (13.0 in) diameter front lens
• 3.7°–54.5° motorized zoom (stepper motor-driven)
• 3-in-1 operation: wash, beam, and Kaleidoscopic effects with individual pixel control, endless Pan rotation
• DryCore active defogging system
• DMX, Art-Net, RDM, sACN, Wireless DMX; CloudIO ready; Claypaky App (NFC)
• Weight 37.6 kg (82.9 lbs) — IP66 grade protection (Shield Family)

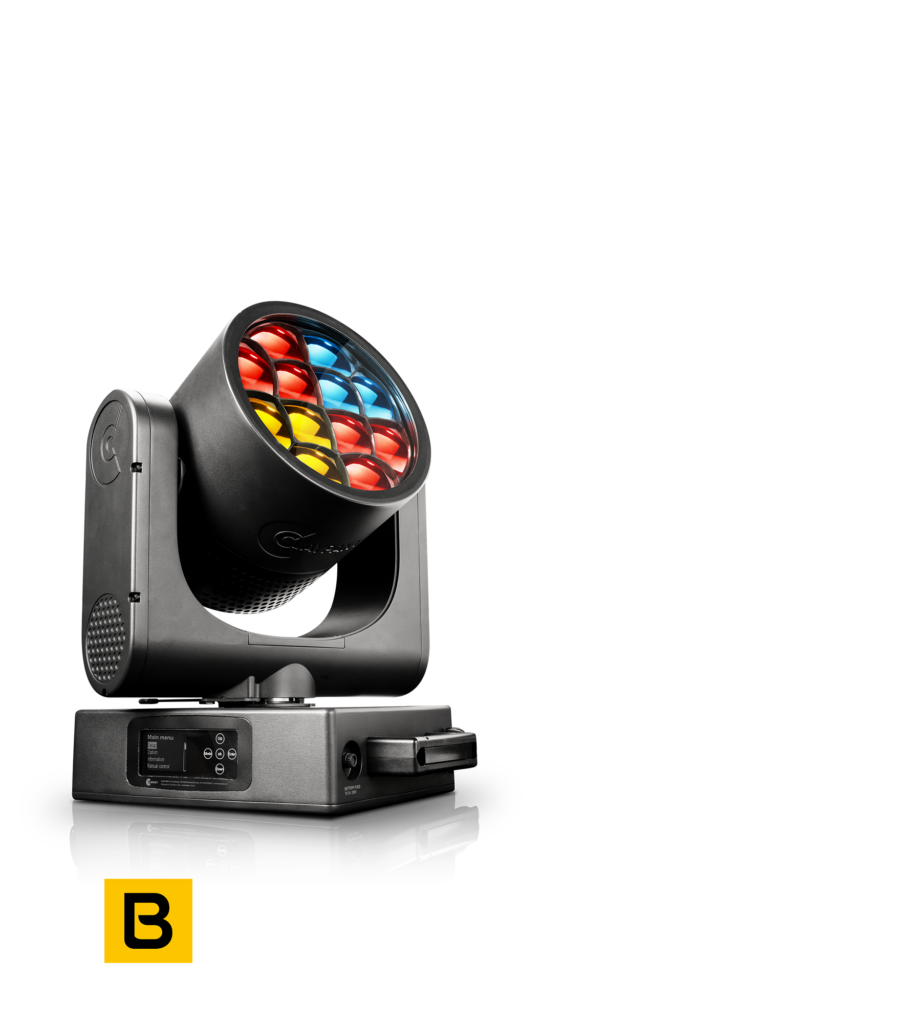

The versatile RGBL pixel wash for every stage.
• 12 x 55W RGBL LED sources, all individually controllable
• up to 15,200 lm output
• 215.7 mm (8.5 in) diameter front lens
• 3.8°–51.1° high-speed motorized zoom
• Full pixel mapping; endless Pan & Tilt rotation; plastic + magnesium alloy hybrid chassis
• Dual-glass anti-condensation front panel
• DMX, Art-Net, RDM, sACN; CloudIO ready; Claypaky App (NFC)
• Weight 18.5 kg (40.8 lbs) — IP66 grade protection (Shield Family)

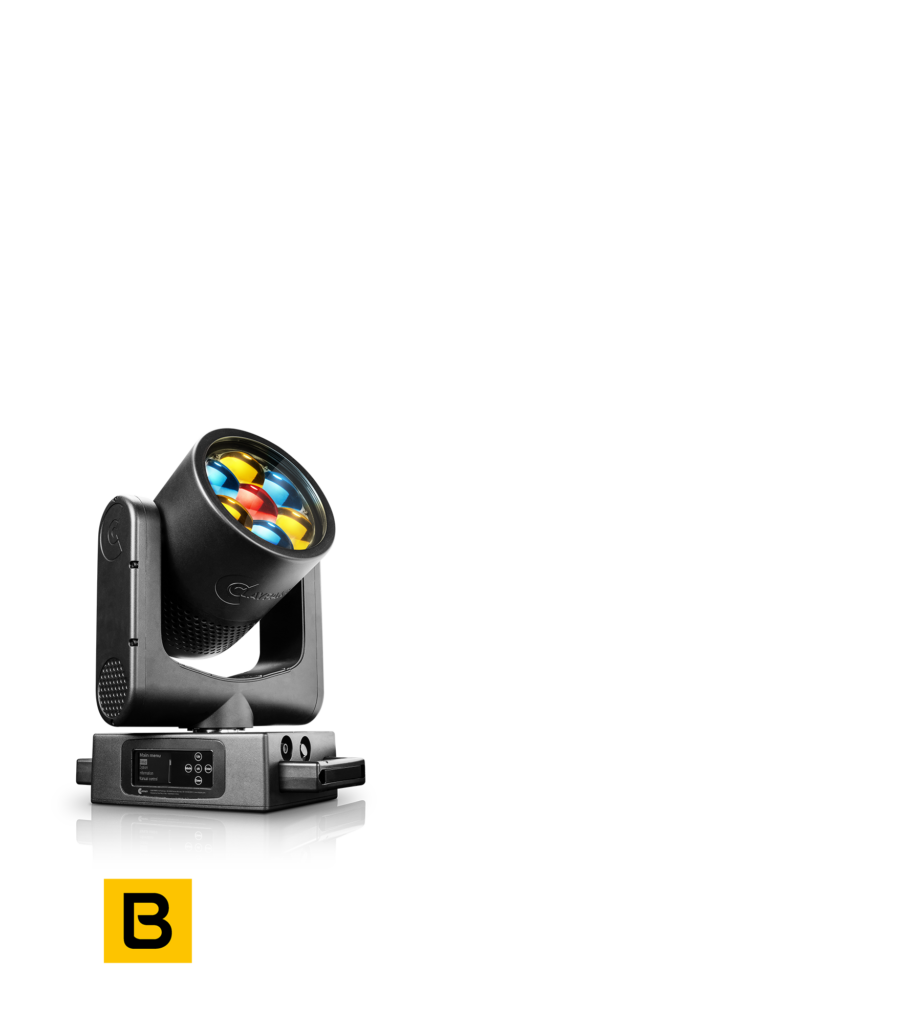

Fast, light, powerful. Big impact, small footprint.
• 7 x 55W RGBL LED sources, all individually controllable
• up to 7,700 lm output
• 177 mm (7.0 in) diameter front lens
• 4°–45.4° high-speed motorized zoom
• Full pixel mapping; endless Pan & Tilt rotation; plastic + magnesium alloy hybrid chassis
• Dual-glass anti-condensation front panel
• DMX, Art-Net, RDM, sACN; CloudIO ready; Claypaky App (NFC)
• Weight 13 kg (28.7 lbs) — IP66 grade protection (Shield Family)
Watch the Videos
B-EYE K30
More RGBL output, zero compromise on color.
B-EYE 7 & B-EYE 12
The versatile RGBL pixel washlights for every stage.
-
The future of RGBL, IP66 multi-lens lighting is here. Build your next-generation rig with the B-EYE Multilens Family.
