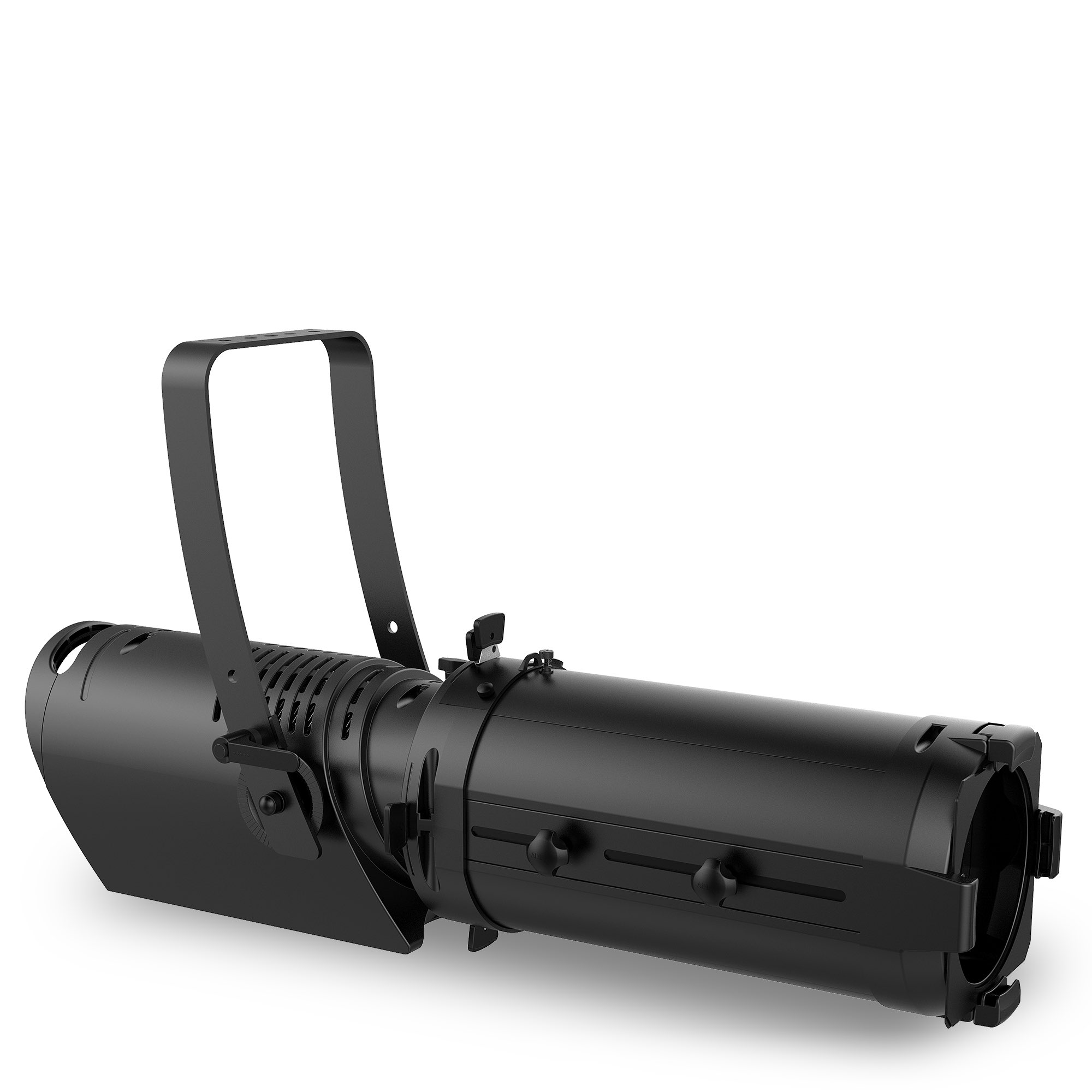

Lexpert Profile

AG2300E41200 - AG2500E41200

The Lexpert Profile is a white LED light able to produce a powerful, high quality light beam. The two versions available in the catalogue have different color temperatures: warm (3200K) or daylight (5600K).

They are built to be modular: the body containing the LED source works together with an optical unit with either a 15°-30° or a 25°-50° zoom. The two zoom modules are perfectly interchangeable with each other.

The Lexpert Profile is equipped with a very versatile dimming system. You can choose between 8 and 16 bit operation on five channels modes, with four preset dimmer curves. Alternatively intensity can be manually adjusted using an easily accessible knob on the back of the unit.
The shaping system consists of four plates, which shape the light beam precisely. The unit also houses a gel holder for inserting color or frost filters, and a pattern holder, or an optional 18-blade iris.
The frequency of this very silent light may be set to between 600 and 4800 Hz and you may choose either DMX512, RDM or ArtNet3 control. The Lexpert Profile is the ideal unit for lighting theatres, TV studios and multifunctional venues.

  • Light Source
    280W White LEDs
  • Light Output
    Beam 3200K (Warm White): 15° 6423 lux @ 4m (standard mode) 30° 2278 lux @ 4m (standard mode) 25° 2482 lux @ 4m (standard mode) 50° 911 lux @ 4m (standard mode) Beam 5600K (Daylight): 15° 8452 lux @ 4m (standard mode) 30° 3116 lux @ 4m (standard mode) 25° 3976 lux @ 4m (standard mode) 50° 1209 lux @ 4m (standard mode)
  • Zoom range
    15°-30° or 25°-50° (interchangeable)
  • Effects
    Excellent smooth light output; Interchangeable optical unit; Two color temperatures: warm white (3200K) or daylight (5600K); Powerful, high-quality beam (high CRI); Beam shaping system and gobo holder; Extremely smooth 16-bit dimming; Strobe effect and gradients effect
Data Sheet Photometrics PDF (3200 K version) Photometrics PDF (5600 K version)

Specs

Save as pdf and print

MODELS

  • Lexpert Profile L Daylight (AG2300)
  • Lexpert Profile L Warm White (AG2500)

LIGHT SOURCE TYPE

  • Source: WHITE LED 280W.
  • Color Temperature:
  • Warm white: 3100K±150K,
  • Daylight: 5600K±200K.
  • CRI: ≥ 90 in Warm white, ≥ 85 inDaylight.
  • Lamp life expectancy: 20000 hrs
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Optical Zoom.
  • Beam Angle: 15°-30°
  • Beam Angle: 25°-50°
  • High efficiency optical system

NOISE LEVEL

  • Max noise level: 30 dB(A) @ 1m Standard mode
  • Max noise level: 25dB(A) @ 1m  Silent mode.

CONTROL and CONNECTIONS

  • Control protocols: DMX512 / RDM / ArtNET3.
  • Data IN connector: Neutrik® 5 pins XLR.
  • Data OUT connector: Neutrik® 5 pins XLR.
  • Ethernet connector: Neutrik® EtherCon™.

FUNCTIONAL DATA

  • Interchangeable Zoom barrel.
  • Rotating Zoom barrel, including shutters and gobo.
  • Available in two color temperatures Warm white and Daylight.
  • High CRI.
  • 8-bit and 16-bit ultra-smooth dimming
  • different dimming curves available.
  • Flicker-free, thanks to PWM frequency adjustment from 600 Hz to 4800 Hz.
  • 4 fan selection: boost, standard, silent, ultra-silent.

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Painting: Black epoxy powder painting.
  • LCD display.
  • Aluminum and steel structure with plastic covers
  • Cooling System: forced ventilation with axial fan.
  • IP20 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Power supply: Electronic auto-ranging.
  • Input Voltage range: AC 100-240V, 50/60Hz.
  • Max power consumption:
  • AC 230V: 382W, 1.7A,
  • AC 120V: 399W, 3.3A.
  • Units daisy chain (max):
  • AC 230V, 7 pcs.
  • AC 120V, 4 pcs.

THERMAL SPECIFICATION

  • Minimum distance to illuminated surface: 0.50 m.
  • Ambient temperature: Max +40°C.
  • Max surface temperature: 80°C

SAFETY SPECS

  • Minimum distance of illuminated objects 8 meters (26’ 3”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • CE / ETL

PACKAGING

  • Packaging Dimensions (Length x Width x Height):
  • Body - 610 x 360 x 355 mm
  • Zoom 15-30 - 600 x 320 x 330 mm
  • Zoom 25-50 - 490 x 20 x 330 mm
  • Net Weight: Body – 9 Kg,
  • Zoom 15-30 - 7,8 Kg,
  • Zoom 25-50 - 7,2 Kg,
  • Packed Weight: Body - 12 Kg,
  • Zoom 15-30 – 9,6 Kg,
  • Zoom 25-50 - 8,9 Kg)

WEIGHT - SIZE



  • Product Dimensions (Length x Width x Height):
  • Body - 441 x 298 x 506 mm
  • Zoom 15-30 - 509x282x282 mm
  • Zoom 25-50 - 400x282x282 mm
  • Net Weight: Body – 9 Kg,
  • Zoom 15-30 - 7,8 Kg,
  • Zoom 25-50 - 7,2 Kg,

ACCESSORIES

  • Metal filter frame 185x185 mm (included)
  • Gobo holder: Gobo size 90 mm (included)
  • Power cord:  (included)
  • Iris 20 leaves, code AA2000000200 (optional)
  • Hook Clamp (optional)
  • Safety chain (optional)
