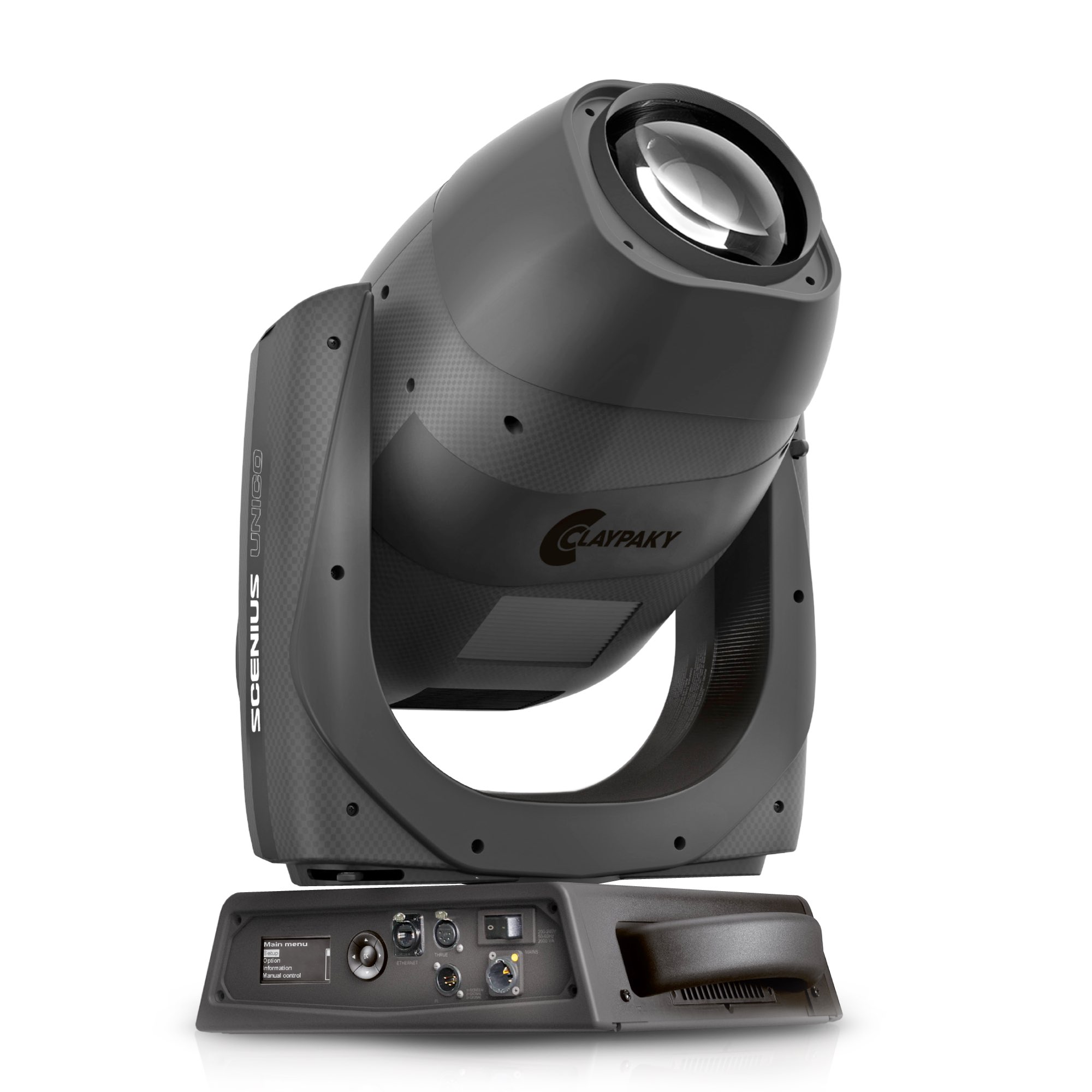

Scenius Unico



The Scenius Unico is the latest addition to the Scenius family, therefore its first highly appealing feature is the quality of its light (1400W Osram lamp, 6500K, very high CRI). It is a magnificent spot light for projecting effects, with six rotating gobos, a rotating prism a beautiful animation wheel, and it is equipped with the most sophisticated and most precise framing system on the market today. The Scenius Unico is also an excellent wash light, since it features a system with different diffusion filters, which may be inserted gradually. However the most amazing feature is that the Scenius Unico can also generate a powerful narrow beam of super concentrated light, with a minimum beam angle of only 5 degrees.

  • Light Source
    OSRAM Lok-it! HTI 1400/PS Lamp
  • Zoom range
  • Effects
    4-blade framing system; CMY Color System; Linear CTO; Color Wheel with 7 color filters; One wheel with 6 rotating gobos; Animation Wheel; Rotating Prism with 4 faces; 16 blades fast Iris; Variable "soft edge" frost; Variable flood frost; Very precise 0-100% dimmer; Fast stop/strobe effect
Data Sheet DMX Channels Photometrics PDF


Save as pdf and print
  1. Immagine prodotto


  • OSRAM Lok-it! HTI 1400/PS Lamp
  • Color Temperature: 6.000 K
  • Very high CRI
  • Base PGJ28 Lok-it!
  • Light can be run at 1400W or 1200W in Energy Saving mode
  • Lamp life expectancy: 750 hrs
    *It may vary depending on various factors, as type of use and environment


  • Zoom range: 5° to 55°
  • Luminoux flux: 120000 lm
  • Front lens diameter: 180mm
  • High efficiency optical system


  • Personalities: two modes with 40/44 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Built In Web Server


  • Colours:
    • CMY System
    • Linear CTO
    • Color Wheel with 7 color filters
  • Gobos:
    • 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system
    • “Total Curtain" effect allowing the full blackout with each single blade
  • Frost:
    • Linear "soft edge" frost
    • Linear flood frost
  • Rotating Effects
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 1 prisms 4 facet with rotation in both direction at variable speed
  • Iris:
    • Motorized with variable pulse and random effects
  • Movement:
    • PAN
    • Angle Rotation: 540°
    • Fast speed: 4.210 sec
    • Normal Speed: 4.958 sec
    • PAN Resolution: 2.10938°
    • PAN FINE Resolution: 0.00824°
    • Accuracy:
    • Resolution ± 0.1° (Range 0.2°)
    • TILT
    • Angle Rotation: 268°
    • Fast speed: 2.536 sec
    • Normal Speed: 3.246 sec
    • Resolution 1.04688°
    • TILT FINE Resolution: 0.00409°
    • Accuracy:
    • Resolution ± 0.1° (Range 0.2°)
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • Shutter and Strobe effect
    • High resolution dimmer 16 bit


  • Long life self-charging buffer battery
  • ON/OFF lamp control from the lighting desk
  • Function reset from the lighting desk
  • “AUTOTEST” function from menu ARTNET
  • Electronic monitoring with status error
  • Cooling system monitoring
  • DMX level monitoring on all channels
  • Internal data transmission diagnostics
  • Firmware Upgrade with no power
  • Firmware upload from another fixture
  • Remote access through RDM
  • CloudIO compatibility


  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate


  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain


  • Operating Voltage: 200-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 1800VA


  • Bipolar circuit breaker with thermal protection
  • Automatic break in power supply in case of overheating
  • Forced ventilation with axial fans


  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • ETL This product is available, on demand, with cETLus Listed Mark, that complies with the UL 1573 and CSA C22.2 No. 166 standards.


  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)


  • 45,6 Kg (100.5 lbs)


  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
  • Foam shell: F21284 (optional)
  • Flight case 2 positions: F21279 (optional)
  • Safety Chain: 105041/003 (optional)
