Volero Cube

CL3031

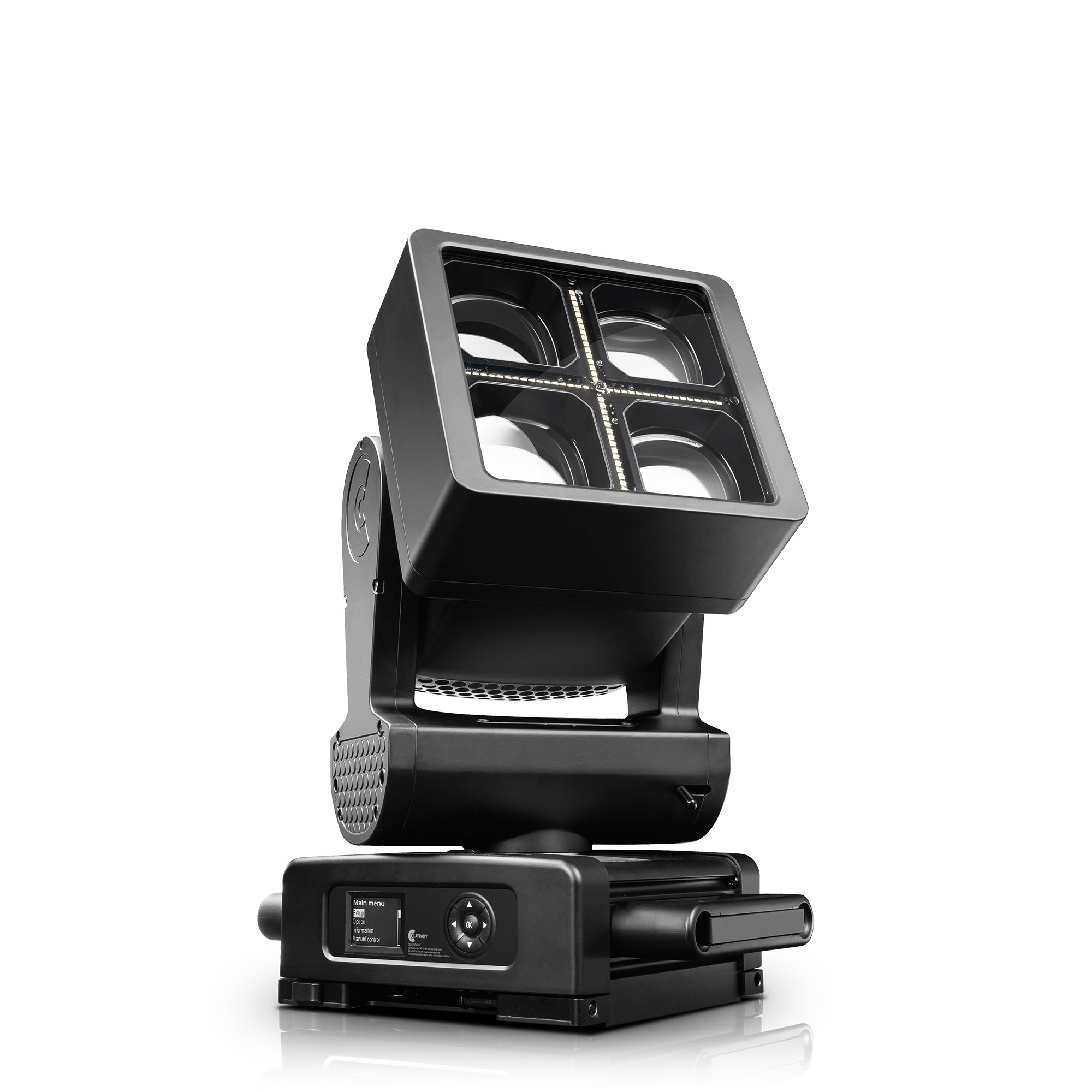

Claypaky Volero Cube
NEW

Imagine a compact IP66 moving head seamlessly merging beam, wash, and strobe effects – also with pixel-to-pixel control. Imagine configuring it to create stunning and dynamic lighting elements, either as single units or on multiples for complex arrangements. Impossible? Not with Volero Cube!
Volero Cube can be your ultimate creative building block: it’s not just a single tool, but a whole toolbox bursting with playful possibilities, packed into one compact and versatile unit. It is a unique fixture in Claypaky’s portfolio, the first of a new series of compact, powerful, and versatile moving heads.

What makes Volero Cube so special:

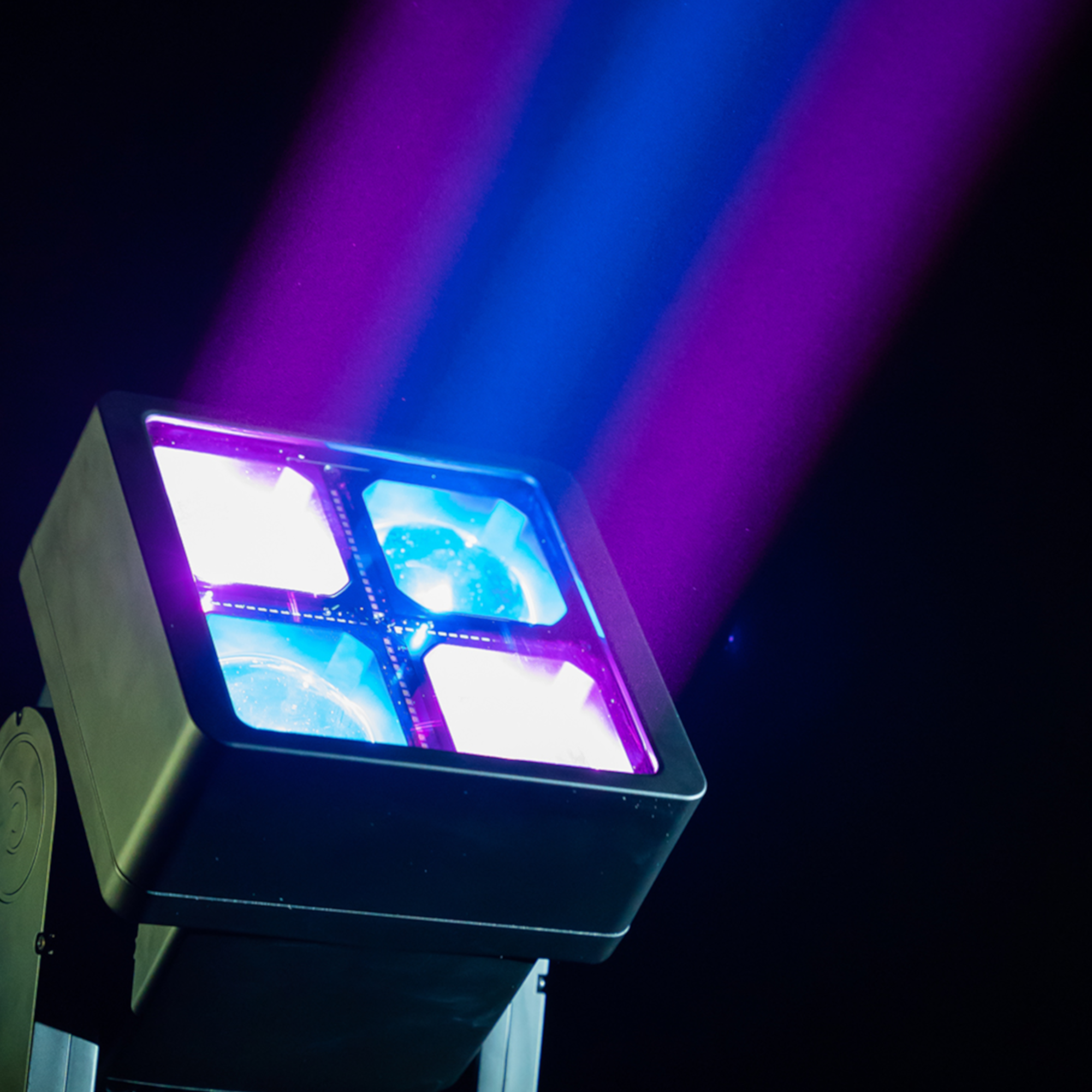

  • Multi-purpose Master: Forget needing a separate tool for every lighting effect. Volero Cube is like having multiple creative sets in one: beam, wash, and strobe plus pixel mapping!
  • Powerful Performer: Don’t be fooled by its compact size, Volero Cube packs a serious punch – it combines 4 RGBW LED modules by 60W each and cross-shaped powerful cool white LED strips for strobe effects, intersecting the four 80x80mm square lenses for crisp, focused beams that pierce the darkness and grab the audience’s attention.
  • Zooming the light: Need to adjust your light beam on the fly, like reshaping your creative vision? Volero Cube’s motorized zoom lets you effortlessly switch between a tight spot for pinpointing specific details and a wider wash to illuminate the entire stage.
  • Pixel Control at your Fingertips: With individual pixel control, you have the power to create stunning color effects, gradients, and chases, allowing you to bring your lighting design to life like building a vibrant and dynamic masterpiece.
  • Creativity Unleashed: With customizable effects and lighting sequences, you can explore new possibilities with just the push of a button. Our Advanced Layers Management system is key, allowing you to bring any artistic vision to life. You can effortlessly combine three layers of effects: start with a background color, blend in external video content, and enhance it with a built-in macro. This seamless fusion creates a mesmerizing visual experience!
  • Space-Saving: Tight on space? No problem! Its compact size makes it like a versatile building block that fits perfectly into any design, even the most space-constrained ones. You can easily mount it on trusses or lighting stands.
  • Modular dream: Create awesome matrix effects by mixing and matching multiple fixtures. The synchronized movement produces a stunning graphical effect: the more overwhelming the more fixtures are connected. Customize your setup with as many fixtures as desired. A neat alignment system with hidden spacers enables PAN to rotate freely.
  • Weather-proof: Volero Cube is the latest addition to the Shield family, boasting an IP66 protection rating against dust ingress and water jets. Designed for outdoor use in diverse weather conditions, Volero Cube, ensures the safety and reliability of your lighting setup, regardless of the elements.

So, if you are looking for a do-it-all solution, that can handle many tasks without breaking the bank, Volero Cube is the ultimate playful building block for you. It’s a reliable and feature-packed unit that empowers you to create stunning visuals and unforgettable lighting experiences.

  • Light Source
    4 x 60W RGBW LEDs and 4 lines of cold white strobe LEDs split into 8 areas
  • Zoom range
    4°- 55°
  • Effects
    RGBW color mixing system; White CT emulation 8000K to 2500K; 16bit resolution with 5 different dimmer curves; Electronic strobe/stop from 1 to 25 f/sec; Pixel mapping control; Advanced Layer Management
Data Sheet

Highlights

Specs

LIGHT SOURCE TYPE

  • Source type:
    • 4 LED RGBW (x 60W)
    • 64 LED White (x 10W)
  • Power: 240 W
  • Colour Temperature: 2500 to 8000K
  • CRI: ≤ 70
  • Lamp life expectancy: 50000hrs
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 4°- 55°
  • Front lens diameter: Ø 187 x 1 87 mm
  • Optical system: High efficiency

NOISE LEVEL

  • Auto fan mode: 49.3 dBA

CONTROL and CONNECTIONS

  • Personalities:
    • 3 mode s with 22 / 41 / 45 control channels
    • Pixel engine: with 16 channels
    • Strobe engine: with 8 channels
  • Protocols: DMX, Art-Net, RDM, sACN
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • RJ45 IN /OUT
  • Power con: PowerCon True1 IN/OUT
  • Web Server: Built In Web Server
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Electronic CTO 2500 8000K
    • Advanced layers management (color, internal shape, pixel mapping + strobe)
    • Individual LED control of four central RGBW LEDs
    • Pre programmed shape selection of static and dynamic patterns, adjustable in color , speed, direction, fade, and strobe
  • Movement:
    • Tilt: 194° - 16bit
    • Pan: 540° - 16bit
    • Mechanical Pan lock for safe transportation and maintenance
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:
    • High resolution electronic dimmer
    • Electronic strobe 25 f/sec
    • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • Two side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system: with fast lock Omega clamps (1/4) turn on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100 120 / 200 240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 500W

THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • MAX temp. of ext. surface: 90°C (194°F)
  • Total heat dissipation: BTU/hr ±10% / kJ/hr ±10%

SAFETY SPECS

  • Min. dist. of illum. objs: 0,2 m 8 in
  • Min. dist. from flamm. mat.: 0,2 m 8 in
  •  Protections:
    • Thermally protected power supply (overheating and cooling)
    • Forced ventilation with axial fans
    • 6.3A 250V fuse

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/ 35/EU Low Voltage Directive (LVD)
    • 2014/ 30/EU Electromagnetic compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2017 N.1206
    • S.I. 2012 N.3032
    • S.I. 2021 N.745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell

WEIGHT - SIZE

  • 15.4 Kg ( 33.95 lbs)
  • Base Dimensions: 233 x 338 mm - 91.7 x 13.30 In
  • Height with vertical  head (h): 476 mm - 18.74 In

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
