ReflectXion is a moving mirror offering 540° PAN and unique, continuous TILT movement at adjustable speeds. The ReflectXion’s mirror is the same on both sides, giving you two highly reflective surfaces with which to direct light beams.

Not all the lighting equipment on stage must be a lighting fixture. Claypaky introduces a new tool for lighting designers to expand on their creativity called ReflectXion, the next generation moving mirror.

This moving mirror has a highly reflective 390 by 280mm mirror, featuring up to 99% reflectance without chromatic aberrations.

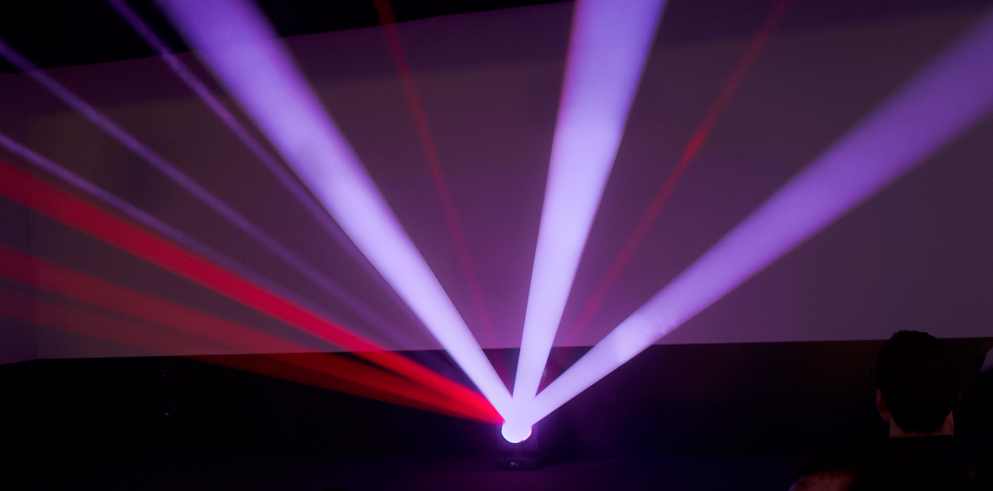

ReflectXion can redirect beams of light from any stage light with the same intensity as it receives them. The unit offers 540° PAN and unique, continuous TILT movement at adjustable speeds. Furthermore, the ReflectXion’s mirror is the same on both sides giving you two highly reflective surfaces with which to direct light beams.

Using the same omega clamp hanging system as with all Claypaky luminaires, this compact moving mirror can be used virtually anywhere on or off stage in any working position. For control, the unit uses only six DMX channels and pan and tilt resolution are both 16-bit for precise movements. The unit’s onboard LCD menu system is very user friendly and makes addressing and setup a snap.

The ReflectXion is a simple, yet effective tool that adds a touch of magic to any light show.

  • Effects
    Size of mirror: 390x280mm (15.4”x11.0”); Mirror type: 99% reflectance without chromatic aberrations (double sided); 540°; pan and continuous tilt movements; 16-bit Pan and Tilt Resolution; Adjustable rotation speed
Data Sheet DMX Channels



Save as pdf and print



  • Personalities: Single mode with 6 control channels
  • DMX 512, 5 pin In & Out connector / Art-Net
  • Control signal USITT DMX 512, RDM, Art-Net, sACN
  • Display Graphic LCD backlit b/w Display
  • Display battery Long life self-charging buffer battery
  • Pan/Tilt Resolution 16 bit
  • Ethernet Input


  • Movement:
    • Pan range 540°
    • Tilt (continuous movement from min 0.08rpm to max 40 rpm) range 360


  • Long life self-charging battery
  • Function reset via on-board menu
  • Function reset from the lighting desk
  • “AUTOTEST” function from menu
  • Electronic monitoring with status error reporting and logging
  • DMX level monitoring on all channels
  • Internal data transmission diagnostics
  • Firmware upgrade with no power (CPU only)
  • Firmware upload from another fixture (CPU only)
  • Firmware Upgrade via Web Server
  • Protocols/Functions: RDM, Web Server, ArtNet
  • Extremely reliable communication RS485 bus


  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • Device locking PAN and TILT mechanisms for transportation and maintenance
  • Optional safety chain


  • Working in any position
  • Optional safety chain
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base


  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 750VA


  • Max ambient temperature 40°C (104°F)
  • Safety devices circuit breaker with thermal protection


  • In conformity with the European Directives:
  • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
  • 2014/30/EU - Electromagnetic Compatibility (EMC)
  • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • ETL
  • cETLus Listed Mark


  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 position)


  • 13.5 Kg (29.76 lbs)


  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
  • Foam shell: F21318/001  (optional)
  • Flight case 2 positions: CF1004 (optional)
  • Safety Chain: 105041/003 (optional)

Dimensioni prodotto
