Actoris Fresnel

AL2700
Claypaky ADB Actoris Fresnel
NEW

Step into the next generation of lighting technology with Actoris Fresnel from ADB by Claypaky. Designed for broadcast, film, and theatre, it is an essential addition to our renowned Multispectral range, setting new standards in lighting quality and color precision. Featuring a powerful 6-color RGBAL + Royal Blue LED engine and an impressive CRI of up to 97, this fixture delivers exceptional color fidelity and breathtaking, lifelike velvet-smooth hues. Whether you’re looking for a soft wash or dynamic spot effects, Actoris Fresnel ensures versatility, flawless dimming, and unmatched control with a range of customizable options.

Actoris Fresnel’s key features in focus:

  • Next-Level Color Performance: Experience rich, high-fidelity lighting with the 6-color RGBAL + Royal Blue LED engine. With a high CRI 97, Actoris Fresnel ensures vibrant, true-to-life colors for theater, broadcast, and film.

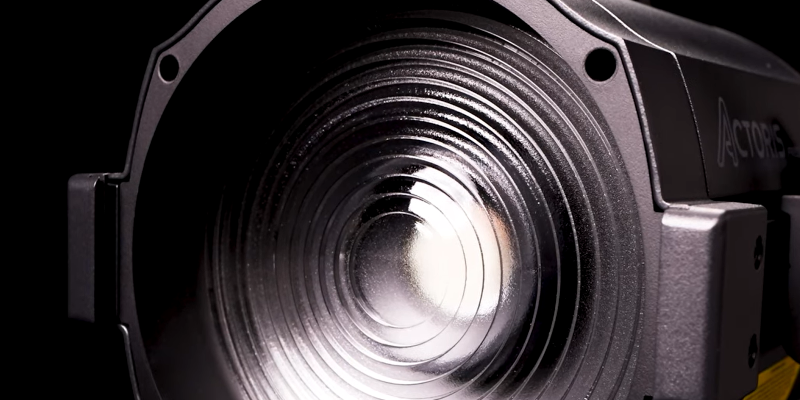

  • Soft-Edged Perfection: Its premium Fresnel lens delivers a smooth, diffused wash with an adjustable 10°–60° zoom, adapting effortlessly from tight spots to wide-area coverage.
  • Dynamic White & Color Consistency: With Dynamic White (2500K–10000K) and Plankcurve CCT accuracy, achieve perfect whites with green/magenta correction. Plus, CloudIO On-Field Color Calibration keeps your rig perfectly matched over time.
  • Fast, Flexible & Reliable: Setting up your light has never been easier. The exclusive Pointing Mode streamlines aiming, while Standalone Mode lets you store looks without a console. Built for pros, it features a lightweight magnesium housing, sliding stirrup for balance, and dual Ethernet for seamless integration.
  • Flawless Dimming & Complete Control: With 24-bit selectable dimming, enjoy ultra-smooth fades with no flicker. Customize your beam with barndoors, gel holders, snoots, and soft panels for ultimate control.

Ready to experience the real velvet-smooth washes for every color shade? Contact us today for more info.

  • Light Source
    6-color (RGBAL+Royal Blue) LED Engine (370W max)
  • Zoom range
    10°-60° zoom
  • Effects
    Tungsten mode to emulate the behavior of a tungsten lamp during dimming from 0 to 100% and vice versa, including Color temperature adjustment; Color temperature: dynamic white ranging from 2,500K to 10,000K, with perfect Plankcurve CCT; Tint correction: +/–green/magenta adjustments; Fixture to fixture Color repeatability, thanks to tight wavelength binning selection and 100% fixture calibration
Press Kit Data Sheet DMX Channels Photometrics PDF
Get In Touch

Highlights

Specs

Save as pdf and print

LIGHT SOURCE

  • Source type:
    • LED (Red + Green + Blue + Amber + Lime + Royal Blue)
  • Power:
    • 370 W
  • Colour Temperature:
    • 2500 to 10.000K - with perfect Plank-curve CCT
  • CRI:
    • Up to 95

PHOTOMETRIC DATA

  • Zoom range:
    • 16°- 80°
  • Lumen output:
    • Up to 12.750 Lumen output (integrating shere)

NOISE LEVEL

            • Fixed presets:
              • Auto mode: 34.9 dB
              • 35 dB: 35.0 dB
              • 30 dB: 30.0 dB
              • 27 dB: 26.7 dB
              • 25 dB: 24.7 dB
              • Fanless: 23.9 dB

CONTROL and CONNECTIONS

  • Personalities: 4 modes + 1 stand alone with 33 / 17 / 9 / 4 DMX control parameters
  • Protocols:
    • DMX, Art-Net, RDM, sACN, Webserver
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • RJ45 IN /OUT
  • Power con:
    • PowerCon True1 IN/OUT
  • Web Server:
    • Built In
  • CloudIO:
    • Fully compatible, On-field calibration for color consistency

DYNAMIC EFFECTS

  • Colours:
    • Color control mode RGBAL + ROYAL BLUE
    • Tungsten mode, to replicate the behavior of a tungsten lamp during dimming from 0 to 100% and vice versa;
    • Tint correction: ± green/magenta adjustments;
    • Flicker-free, thanks to PWM frequency adjustment
    • Color control with Advanced, Standard, White and Single-channel modes
    • Color temperature adjustment
    • Wide color gamut and extended spectrum, including deep blue and deep red
    • Combined fixture calibration ensures colors consistency despite changes in temperature and over time
    • Wavelength binning selection and 100% fixture calibration ensures color repeatability fixture-to-fixture
  • Dimmer/Shutter:
    • High resolution electronic dimmer, 24 bit, 5 curves

HARDWARE and SOFTWARE

  • Long life-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • One handle for transportation
  • IP20 protection rate
  • Built-in bracket
  • Working in any position
  • Optional safety chain

ELECTRICAL

  • Operating Voltage:
    • 100-240V, 50 / 60 Hz
  • Max Power consumption:
    • 570W (5.7A) @ 100V

THERMAL SPECIFICATION

  • Max ambient temperature:
    • 45°C (113°F)
  • Min ambient temperature:
    • -20°C (-4°F)
  • Max temperature of the external surface:
    • 90°C (194°F)
  • Total heat dissipation:
    • 1400 BTU/hr ±10% / 1476 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects: 0.2 meters (8’')
  • Minimum distance from flammable materials: 0.2 meters (8”)
  • Protection:
    • Forced ventilation with axial fans
    • T6.3A fuse 250V – 5x20 mm (External main fuse)
    • T6.3A fuse 250V – 5x20 mm (External fuse)

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35 EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2016 N. 1101
    • S.I. 2016 N. 1091
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box
  • Flight case

WEIGHT - SIZE

  • Weight:
    • 11 Kg (24,25 lbs)
  • Dimensions:
    • 342 x 560 x 341 mm
    • 13.4 x 22.0 x 13.4 in

ACCESSORIES

  • ETL Power cord: CAB02B/802 (included)*
    * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Clamp: C21070 (Optional)
  • Safety chain: 105041/001 (Optional)
