Arolla Aqua HP

CL3035 - CL3042 (FS version)
NEW Claypaky Shield Family IP66 logo

Bring your biggest creative ideas to stunning life. Arolla Aqua HP, or Unico LED, is the most powerful white LED moving head in the Arolla Aqua family and the brightest fixture in the market in its category (1400W and over 60,000 lumen output), engineered to deliver uncompromising performance in any environment for captivating long-throw projections and impactful aerial effects. From intimate venues to massive stadiums, this all-weather long-throw workhorse combines exceptional brightness, precision control, and Swiss Army knife versatility in one rugged fixture.

Key Features That Set Arolla Aqua HP Apart:

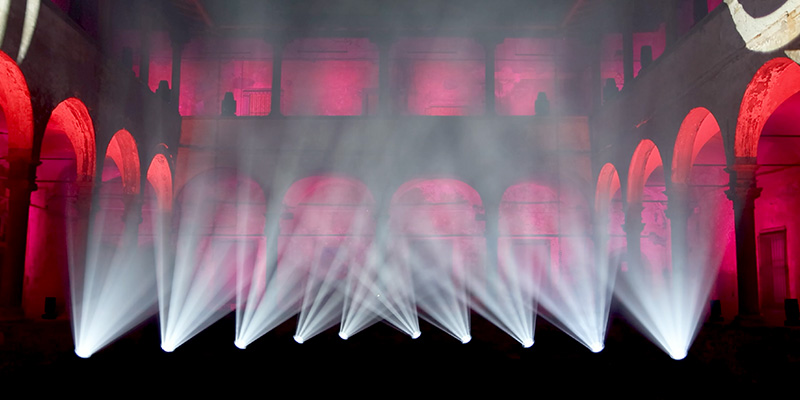

  • Unmatched Power & Brightness: Custom 1400W white LED engine pumps out over 60,000 lumens with razor-sharp fat beam quality thanks to the extra-large 220mm front lens (8.7 in)
  • Performance-to-cost Ratio: With an exceptional cost-to-performance ratio, it sets a new standard for efficiency, allowing designers to achieve their artistic vision without compromising on quality.
  • True Long-Throw performance: it delivers stunning long-throw projection with sharp gobos and defined beams that hold their shape over extreme distances

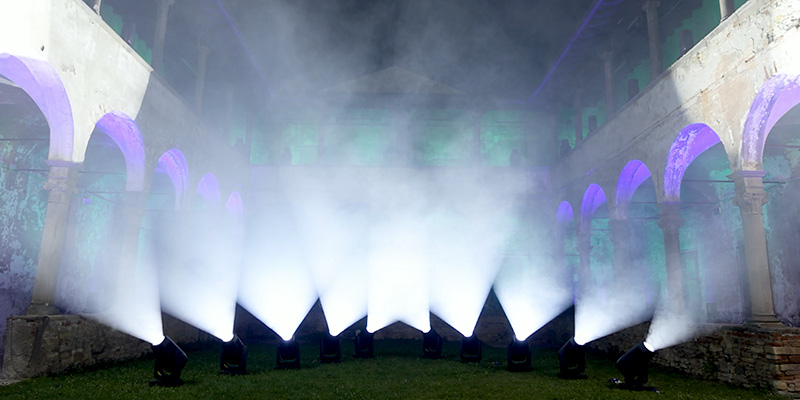

  • Ultimate Versatility – 3.6°-50° zoom range transitions seamlessly from piercing aerial effects to immersive wide washes, perfect for any creative vision
  • Advanced Color Control – CMY plus linear CTO mixing, dual color wheels, and a sophisticated framing system deliver unprecedented creative possibilities

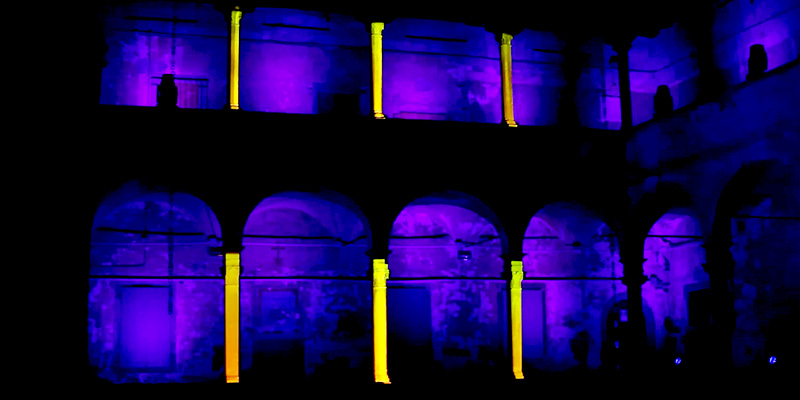

  • Precision Beam Shaping – Advanced Four-Plane Framing System with built-in macros enables precise shaping and signature effects like the “Total Curtain”, a precise and instant blackout effect using individual blades
  • All-Weather Reliability – IP66 weatherproof rating with advanced dehumidification and SunSafe Protection ensures flawless performance in any condition
  • Precision Positioning – Absolute Position sensor system and Advanced Electronic Brake maintain rock-solid stability and perfect repositioning without recalibration
  • Complete Creative Toolkit – Dual rotating gobos, prisms, animation wheel, and Lineguard frost provide endless texture and movement options

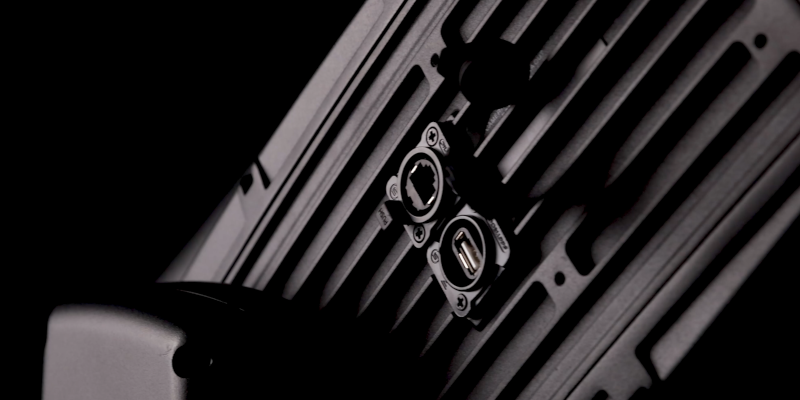

Arolla Aqua HP FS (code CL3042) elevates followspot operations with an integrated external digital camera system that provides operators with real-time live feed control, enabling precise remote operation from any position while maintaining perfect target tracking throughout performances (digital camera not included).

The advanced cooling system keeps Arolla Aqua HP quiet across all operating modes.

Ready to gain your competitive advantage and deliver shows that set you apart from the competition? Contact us today to discover how Arolla Aqua HP transforms your lighting vision into reality.

  • Light Source
    custom 1400W cold white LED engine (6500 K)
  • Light Output
    +60,000 lm (in integrating sphere)
  • Zoom range
    3.6°- 55° linear zoom
  • Effects
    Linear CMY color mixing; Linear CTO 2800-6500K; CRI up to 70 with selectable filter for CRI up to 88; 2 color wheels with 5 dichroic colors each, including CRI filter; 2 rotating gobo wheels with 6 HD gobos each (30mm gate); Go Bright Technology, the special coating on gobos for no light loss; Animation wheel; 2 4-facet rotating prisms; 16-blades motorized iris with variable pulse and random effects; Framing system: four focal planes blades, +/- 60° rotation and macro channel control; “Total Curtain” effect allowing the full blackout with each single blade; Motorized zoom and focus; Built-in macros; Lineguard: a new frost system (5°) using two pairs of blades instead of two individual ones
Data Sheet Photometrics PDF
Get In Touch

Highlights

Specs

LIGHT SOURCE TYPE

  • Cold white LED
  • Power: 1400W
  • CRI: Up to 70 with selectable filter for CRI up to 88
  • Colour Temperature: 6500K

PHOTOMETRIC DATA

  • Zoom range: 3.6° to 55°
  • 60000 Lumen Output (Integrating Sphere)
  • Front lens diameter: 220 mm
  • High efficiency optical system

NOISE LEVEL

  • Auto fan mode: 40.2 dBA
  • Constant fan mode: 43.6 dBA
  • Silent fan mode: 36.3 dBA
  • Theatre fan mode: 36.2 dBA

CONTROL and CONNECTIONS

  • Personalities: 1 mode with 43 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN, CRMX (TiMo FX) (Lumen Radio)
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN/OUT
  • In addition with FS version: USB 12V + RJ45 for camera version
  • Power connector: PowerCon True1
  • Built In Web Server

DYNAMIC EFFECTS

  • Colours:
    • CMY colour mixing
    • Linear CTO 2800-6500K
    • Two fixed color wheels with 5 dichroic colors each
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system and macro channel control
    • Framing system with 90° rotation
  • Gobos:
    • 2 rotating gobos wheels with 6 HD gobos each (30 mm gate)
    • “Go bright” tech: no light loss or color shift when gobos are inserted in the beam
  • Frost:
    • 1x5° frost filter (Lineguard technology)
  • Rotating Effects:
    • 2 rotating prisms:
      • 4-facet linear
      • 4-facet circular
    • 1 animation wheel
  • Iris:
    • 16-blades motorized
  • Movement:
    • Tilt: 270°
    • Pan: 540°
    • Automatic positioning
    • Special feature: sunsafe protection
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • High resolution dimmer 24 bit
    • Electronic strobe

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Magnesium structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 1900W

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 6500 BTU/hr ±10% / 6900 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 5 meters (16’ 4”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • External mains fuse T16A 250V - 6.3x32mm
  • External fuse T6.23A 250V - 5x20mm
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans and heatsink

COMPLIANCE

  • CE marking (in conformity to the following):
    • 2014/53/EU - Radio Equipment Directive (RED)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
  • UKCA conforms to UK regulations:
    • S.I. 2017 N.1206
    • S.I. 2012 N.3032
    • S.I. 2021 N.745
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N.166:2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell

WEIGHT - SIZE

  • 55 Kg (121.3 lbs)
  • 502x470mm (19.7x18.5 In) (base dimension) – 885mm (34.80 In) with vertical head (h)
  • Distance between two fixtures 760mm (29.9 In)

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
