Arolla Aqua S-LT

CL3029

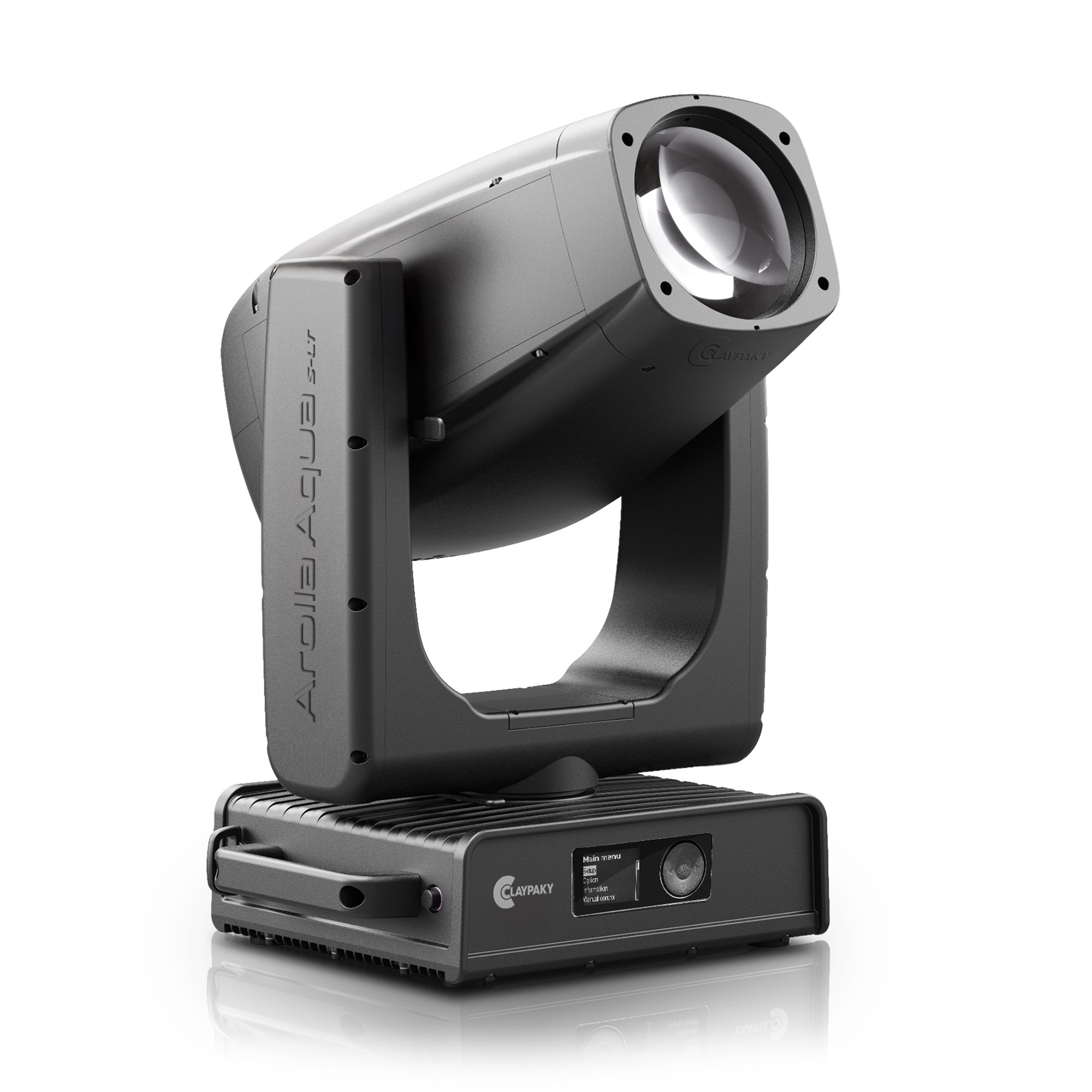

Claypaky Arolla Aqua S-LT
NEW Claypaky Shield Family IP66 logo

Do you need a profile that blends seamlessly behind the scenes, performs flawlessly in tight setups, and keeps full creative control at your fingertips? Arolla Aqua S-LT is your answer. This ultra-compact, weatherproof fixture is engineered for lighting designers who demand both power and precision, without the bulk. It packs full power, infinite motion, high-end optics, and a complete set of effects, shrinking its footprint to 25.9 kg (57.1 lbs). Engineered for both indoor and outdoor use, it’s built to perform without compromise.

At its heart is a custom 350W white-LED engine (6500K) that pumps out an impressive 21,000 lumens. Whether you’re working indoors or facing the elements outside, the Arolla Aqua S-LT delivers the full creative expression you need, exactly when you need it: just reliable performance in a smarter, lighter package that adapts to your vision.

Why you’ll love Arolla Aqua S-LT:

  • Maximum Power, Compact Form: 25.9 kg (57.1 lbs) and 637 mm (25.07 in) high, setting a new benchmark for long-throw IP66 profiles. Arolla Aqua S-LT fits anywhere.
  • Impact at Every Distance: Arolla Aqua S-LT features a 140 mm (5.5 in) front lens and 3.8°–52° (13:1) linear zoom, engineered with a refined hotspot for high-impact aerials and crisp projections over distance.
  • IP66-Rated: Designed for all-weather use, featuring SunSafe auto-head protection to guard lenses in direct sunlight.
  • Full Creative Suite: Includes dual gobo wheels, animation wheel, 4-blade framing system, 4-facet prisms, 16-blade iris, and 5° and 1° frosts for rich creative flexibility. Plus, GoBright beam optimization preserves output and color integrity, even with gobos inserted.
  • Accurate Color Performance: Fast CMY + linear CTO mixing, along with a 6-slot color wheel, deliver flawless gradients and vivid tones for broadcast or live events.
  • Smart Positioning and Recovery: Arolla Aqua S-LT offers Absolute Position tracking and an Electronic Brake to maintain head position, even after power loss, ensuring seamless recovery in critical show environments.
  • Next-Gen Control and Connectivity: Built-in Wireless DMX, web interface, and CloudIO compatibility for streamlined remote configuration, diagnostics, monitoring, and firmware updates.
  • Infinite Motion, Dynamic Look: Continuous pan & tilt rotation enables fluid, uninterrupted motion effects, saving programming time with no need to “re-center” and increasing the creative possibilities for slow rotation, fast spins, or continuous sweeping effects.
  • Versatile Yet Robust: The ideal hybrid fixture for small to medium festivals, broadcast & TV studios, permanent installations, corporate events, and high-trim outdoor venues.

Arolla Aqua S-LT is the most compact member of the Arolla Aqua family, bringing the same cutting-edge design and powerful performance into a smaller, more agile form. It completes the Arolla Aqua ecosystem with seamless consistency in style, technology, and creative versatility.

If your design demands full creative control and your rig demands compactness and reliability, Arolla Aqua S-LT delivers both. Infinite motion, sharp framing, rich effects, all in a footprint that works harder for you. Ready to test it in your own venue? Contact us today, and let’s bring Arolla Aqua S-LT to your next show.

  • Light Source
    custom 350W cold white LED engine (6500 K)
  • Light Output
    +21,000 lm (in integrating sphere)
  • Zoom range
    3.8°-52° (13:1) zoom
  • Effects
    Linear CMY color mixing; Linear CTO 2800-6500K; CRI up to 70 with selectable filter for CRI up to 88; 2 color wheels with 5 dichroic colors each, including CRI filter; 2 rotating gobo wheels with 6 HD gobos each (30mm gate); Go Bright Technology, the special coating on gobos for no light loss; Animation wheel; 4-facet radial prism; 4-facet linear prism; 16-blades motorized iris with variable pulse and random effects; Framing system: four focal planes blades, +/- 60° rotation and macro channel control; “Total Curtain” effect allowing the full blackout with each single blade; Motorized zoom and focus; Built-in macros; Lineguard: a new frost system (5°) using two pairs of blades instead of two individual ones
Data Sheet
Get In Touch

Highlights

Specs

LIGHT SOURCE TYPE

  • Power: 350W
  • CRI: 70+
  • Color Temperature: 6500K ± 300K
  • Lamp life expectancy: 20.000 hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 3.8° to 52°
  • Lumen output: 21.000 Lumen Output (Integrating Sphere)
  • Front lens diameter: 140mm
  • High efficiency optical system

    CONTROL and CONNECTIONS

    • Personalities: 2 modes:
      • Basic: 44 control channels
      • Standard: 54 control channels
    • Control Protocol:
      • DMX, Art-Net, RDM, sACN
      • CRMX (TiMo FX)
    • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
    • Ethernet port: RJ45 IN/OUT
    • Power connector: PowerCon True1 IN/OUT
    • Built In Web Server
    • CloudIO: fully compatible

    DYNAMIC EFFECTS

    • Colors:
      • Linear CMY/CTO color mixing
      • Linear CTO filter 3000K – 6500K
      • 1 color wheel with 6 dichroic colors, tint channel
    • Gobos:
      • 1 static gobo wheel with 9 fixed interchangeable gobos
      • 1 rotating gobo wheel with 7 interchangeable glass gobos
    • Framing system:
      • 4 blades (± 35° inclination) with ± 60° rotation of the full system
      • “Total Curtain" effect allowing the full blackout with each single blade
      • Built-in macros
    • Frost:
      • 2 frost filters: 1 heavy and one soft
    • Rotating Effects:
      • 1 four-facet conical prism with rotation in both directions at variable speed
      • 1 four-facet linear prism with rotation in both directions at variable speed
      • 1 aluminium animation disc with continuous rotation in both directions at variable speed movement
    • Iris:
      • 15 edges 3% - 100% linear adjustment
      • Motorized with variable pulse and random effects
    • Movement:
      • Tilt: endless
      • Pan: endless
      • Absolute position
      • Automatic repositioning
      • Tilt brake
      • Mechanical Pan/Tilt lock for safe transportation and maintenance
    • Beam:
      • Motorized Zoom and Focus
    • Dimmer/Shutter:
      • High resolution dimmer - 24 bit, 5 curves
      • Shutter and Strobe effect

    HARDWARE and SOFTWARE

    • Long life self-charging battery
    • Display Graphic LCD backlit b/w Display
    • Firmware upload from another fixture
    • Firmware Upgrade via Web Server
    • Diagnostic
    • DMX monitoring
    • Remote access through RDM

    HOUSING

    • Magnesium and steel structure with plastic covers
    • Two side handles for transportation
    • IP66 protection rate

    WORKING POSITION

    • Working in any position
    • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
    • Optional safety chain

    ELECTRICAL

    • Operating Voltage: 100-240V, 50/60 Hz
    • Power Supply: Electronic auto range with active PFC
    • Max Power consumption: Max 600W (5,5A) @ 100V - 600W (2,4A) @ 240V

    THERMAL SPECIFICATION

    • Max ambient temperature: 45°C (113°F)
    • Min ambient temperature: -20°C (-4°F)

    SAFETY SPECS

    • Minimum distance of illuminated objects: 4.5 meters (8’ 2”)
    • Minimum distance from flammable materials: 0.2 meters (8”)
    • Battery fuse: T6.3A 250V
    • Main fuse: 10A 250V
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

    COMPLIANCE [Expected]

    • CE Marking (in conformity to the following):
      • 2014/53/EU - Radio Equipment Directive (RED)
      • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
      • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
    • UKCA conforms to UK regulations:
      • S.I. 2017 N.1206
      • S.I. 2012 N.3032
      • S.I. 2021 N.745
    • cETLus LISTED:
      • UL 1573:2003
      • CSA C22.2 N.166:2015

    PACKAGING

    • Carton box + Polystyrene
    • Carton box + Foam shell
    • Flight case + Foam shell

    WEIGHT - SIZE

    • 25.9 Kg (59.3 lbs)
    • 299x256mm (base dimension) – 634 with vertical head (h)

    ACCESSORIES

    • Omega bracket: 2x183102/805 (Included)
    • ETL Power: CAB02B/802 (Included)*
      * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
    • Safety Chain: 105041/001 (Optional)
    • Clamp: C21070 (Optional)

    Technical Documentation

    E-ASSIST

    For all other detailed documentation login E-Assist

    You can find manuals, datasheets, DMX channel charts, photometrics, CAD symbols, spare parts, firmware files, schematics, technical notes, etc... in the new dedicated Claypaky Customer Care website (restricted access)
