Arolla Aqua Wash HC

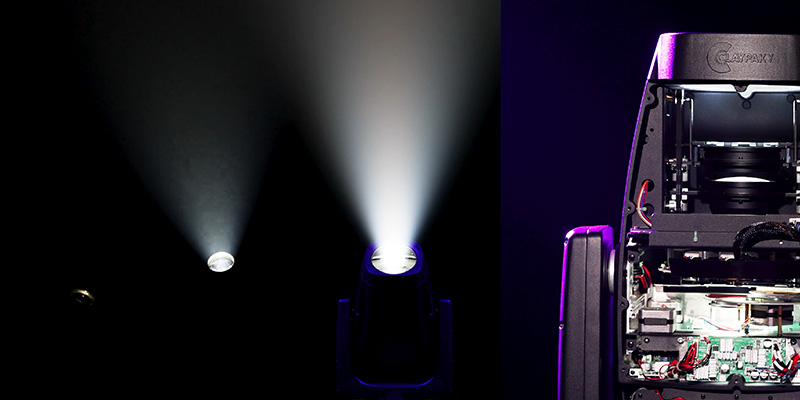

LIGHT SOURCE

• Source type: White LED (6500 K) + Calibration of the white (TrueCurve TM.)
• Power: 960W
• Colour Temperature: 6400K
• CRI: Up to 94
• LED life expectancy: 4000 L70*
  * It may vary depending on various factors, such as the type of use and environment

PHOTOMETRIC DATA

• Zoom range with PC Lens:
  • Beam: 6.1°
  • Field: 49°
• Zoom range with Fresnel lens:
  • Beam: 6.4°
  • Field: 58.1°
• Lumen Output with PC lens: 31.318 lm
• Lumen Output with Fresnel lens: 27368 lm
• PC lens: Ø 160 mm
• Fresnel lens: Ø 180 mm
• Optical system: high efficiency

NOISE LEVEL

• Fixed preset:

  • Auto mode: 46.7 dB
  • Constant mode: 46,8 dB
  • Silent mode: 34,8 dB
  • Theatre mode: 35,1 dB

CONTROL and CONNECTIONS

• Personalities: 1 mode with 30 control channels
• Protocols: DMX, Art-Net, sACN, CRMX (TiMo FX by Lumen Radio)
• Connectors: Locking 5 pin XLR IN/OUT, RJ45 IN/OUT
• Power connector: PowerCon True1 IN/OUT
• Web server: Built-in
• CloudIO: Fully compatible

DYNAMIC EFFECTS

• Colours:
  • CMY color mixing (16-bit);
  • 1 fixed color wheel with 6 dichroic colors;
  • Linear CTO 2700K – 6500K
• Strobe:
  • Electronic strobe
• Barndoor system:
  • Internal 2 focal planes
• Frost:
  • 1 manually interchangable 60°
• Movement:
  • Tilt: 270° - 16bit
  • Pan: 540° - 16bit
  • Accuracy:
    • Resolution: ± 0,22° (±0° 13′ 12″)
    • Range: 0,44° (0° 26′ 24″)
  • Automatic repositioning
  • Mechanical Pan/Tilt lock for safe transportation and maintenance
• Dimmer/Shutter:
  • Electronic control (24-bit) with 5 selectable dimming curves

HARDWARE and SOFTWARE

• Display graphic LCD blacklit B/W display;
• Firmware upload from another fixture,
• Firmware upgrade via Web Server;
• Diagnostic;
• DMX monitoring;
• Remote access through RDM

HOUSING

• Aluminium and steel structure with plastic covers
• Two-side handles for transportation
• IP66 protection rate
• Working in any position
• Hanging system with fast-lock Omega clamps (1/4 turn) on the base
• Optional safety chain
• Special:
  • Sun safe protection

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power supply: electronic auto range with active PFC
• MAX power consumption: 1580W

THERMAL SPECIFICATION

• Max ambient temperature: 40°C (104°F)
• Min ambient temperature: -20°C (-4°F)
• MAX temperature of the external surface: 90°C (194°F)
• Total heat dissipation: 5397 BTU/hr ±10% / 5688 kJ/hr ±10%

SAFETY SPECIFICATIONS

• Minimum distance of illuminated objects: 2.5 m (8'2'' In)
• Minimum distance from flammable materials: 0.2 m (8'' In)
• Protections:
  • External Mains Fuse T 16A 250V - 6,2 x 32mm
  • External Fuse (to disconnect battery during flights transportation) T 6,3A 250V - 5x20mm
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE:

• CE Marking (in conformity to the following):

  • 2014/53/EU Radio Equipment Directive (RED)
  • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
  • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
• UKCA: conforms to UK Regulations:
  • S.I. 2017 N. 1206
  • S.I. 2012 N. 3032
  • S.I. 2021 N. 745
• cMETus Listed:
  • UL 1573:2003
  • CSA C22.2 N. 166: 2015

PACKAGING

• Carton box + Polystyrene
• Carton box + Foam shell
• Flight case + Foam shell (2 position)

WEIGHT - SIZE

• Weight:
  • 36,0 Kg (79,4 lbs).
• Dimensions without handles:
  • 320 x 450 x 765 mm
  • 12,60 x 17,72 x 30,1 In
• Distance between two fixtures: 650 mm (25,6 In)

ACCESSORIES

• Omega braket: 2 x 183102/805 (included)
• ETL Power cord: CAB02B/802 (included)*
  * Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
• Fresnel kit: CA30690000102 (optional)
• PC lens: CA30700000102 (optional)
• Flight case 2 position: CF1044F (optional)
• Safety Chain: 105041/001 (optional)
• Clamp: C21070 (Optional)
