Arolla Aqua

CL3027
NEW

The Arolla Aqua is Claypaky’s top-of-the-range weather-resistant light. It is a true workhorse with IP66 rating and technical and construction features which were once unimaginable for this kind of light. The Arolla Aqua sets a new benchmark for professionals who are looking for a high-power IP66 light which is compact, reliable and complete in every aspect, with top performance and an unparalleled cost-performance ratio.

In recent years, lighting professionals have made increasingly precise demands, and manufacturers have geared their production to certain market trends which have become impossible to ignore.

One of these, IP66 weather-resistant lights, has been taking an ever-greater market share. They are not only seen as the perfect fixture for outdoor events, but also as ideal lights for indoor productions, since they are protected against the harmful effects of dust and a variety of other external agents, and therefore require less maintenance. In the long run, this results in time and cost savings, and a better return on investment.

The Arolla Aqua is Claypaky’s top-of-the-range weather-resistant light. It is a true workhorse with IP66 rating and technical and construction features which were once unimaginable for this kind of light.

Claypaky’s R&D department’s challenge was principally to design a high-power, high-brightness fixture with top-level performance while at the same time limiting its weight and size. The Arolla Aqua’s dimensions are indeed remarkable: less than 750 mm in height and only 38.5 kg in weight, thus enabling fast pan and tilt movements.

The Arolla Aqua fits a white 900 W (7000 K) LED light source, capable of a 40,000-lumen output. This means it can compete with both high-power-range lights (given its output) and medium-power-range lights (given its small size and weight).

Its uniform light beam is another key feature. The high quality of the beam, its density, and the total absence of spurious lights can be appreciated with the naked eye, and its zoom can be adjusted over a linear 5.5°-50° range (9:1).

The Arolla Aqua boasts an effects section consisting of two gobo wheels (one of which rotating) with very high-definition dichroic glass gobos; an innovative animation wheel which brings out some of the most typical effects of this feature, a four-sided prism, a 16-blade motorized iris, a framing system on four focal planes with rotation between +/- 60°, and a separate macro control channel.

Thanks to our exclusive “Go-Bright” technology, there is no light loss or colour shift when gobos are inserted into the beam. The gobos can be swapped and morphed with each other and the animation wheel to create new, exciting textures.

The colour section consists of CMY colour mixing with 16-bit controllinear CTO and a six-colour wheel (including an 88+ CRI enhancement filter). This outstanding moving head comes complete with a soft edge frost filterflood frost effectultra-precise 24-bit digital dimmer, digital stop strobe and four fan operating modes, right up to the highest level of quietness.

The Arolla Aqua sets a new benchmark for professionals who are looking for a high-power IP66 light which is compact, reliable and complete in every aspect, with top performance and an unparalleled cost-performance ratio.

  • Light Source
    custom 900W white LED engine (7000 K)
  • Light Output
    40,000 lm
  • Zoom range
    5.5°-50° (9:1) linear zoom
  • Effects
    16-bit CMY color mixing; Linear CTO; Six-color wheel (including high CRI filter); 7 HD interchangeable rotating gobos; 8 HD interchangeable fixed gobos; Go-Bright Technology: no light loss or colour shift when gobos are inserted into the beam; Animation wheel; Four-sided rotating prism; 16-blade motorized iris; Framing system: four focal planes, +/- 60° rotation and macro channel control; Soft edge frost and flood frost filters; 24-bit digital dimmer with 4 user-selectable dimming curves; Digital stop-strobe effect
DMX Channels Photometrics PDF

Highlights

Specs

LIGHT SOURCE TYPE

  • 900W White LED Engine
  • CRI: 70+ with selectable filter for CRI 88+
  • Colour Temperature: 7000K
  • Lamp life expectancy: 40000 hrs
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 5.5°- 50°
  • 18800 Lumen Output (Integrating Sphere)
  • Front lens diameter: 140mm
  • High efficiency optical system

NOISE LEVEL

  • Theatre fan mode: 40.0 dBA
  • SLN fan mode: 42.3 dBA
  • Constant fan mode: 50.2 dBA
  • Auto fan mode: 50.3 dBA

CONTROL and CONNECTIONS

  • Personalities: Single mode with 38 control channels
  • Integrated Wireless DMX system as standard (Wireless Solution / Lumen Radio)
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1 INOUT
  • Built In Web Server

DYNAMIC EFFECTS

  • Colors:
    • Linear 16bit CMY color mixing
    • Linear 16BIT CTO
    • Fixed color wheel with 6 dichroic colors
  • Gobos:
    • 1 Static gobo wheel with 8 replaceable gobos
    • 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
    • Ext diam.26.95mm
    • Image diam. 20.5mm
    • Thickness 1.1mm
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system
    • “Total Curtain" effect allowing the full blackout with each single blade
    • Built In macros
  • Frost:
    • Linear heavy frost 5° for wash effect
    • Light frost 1° for soft diffusion
  • Rotating Effects:
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 4 Facets prism with rotation in both direction at variable speed
  • Iris:
    • Motorized with variable pulse and random effects
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Automatic repositioning
    • P/T Smooth speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • High resolution electronic Dimmer - 24 bit
    • 5 selectable by Function channel
    • Shutter and Strobe effect

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 1100VA

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 4782 BTU/hr ±10% / 5040 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 2.5 meters (8’ 2”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T6.3A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)

WEIGHT - SIZE

  • 38.7 Kg (85.3 lbs)
  • 325x450mm (base dimension) – 750mm with vertical head (h)
  • Distance between two fixtures 700mm

ACCESSORIES

  • Omega clamps:...............................................................................................2x183102/805 (included)
  • Power cord:.......................................................................................................CAB0NL/802 (included)
  • Foam shell:........................................................................................................F21340-001 (optional)
  • Flight case 2 positions:............................................................................... CF1024 (optional)
  • Safety Chain:....................................................................................................105041/001 (optional)

dimensioni



Technical Documentation

E-ASSIST

For all other detailed documentation login E-Assist

You can find manuals, datasheets, DMX channel charts, photometrics, CAD symbols, spare parts, firmware files, schematics, technical notes, etc... in the new dedicated Claypaky Customer Care website (restricted access)

Sign In

Catalogues and Brochures

Arolla Aqua leaflet

Download PDF

Video

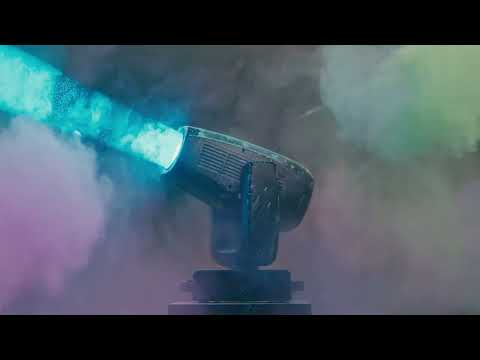

Arolla Aqua teaser video
