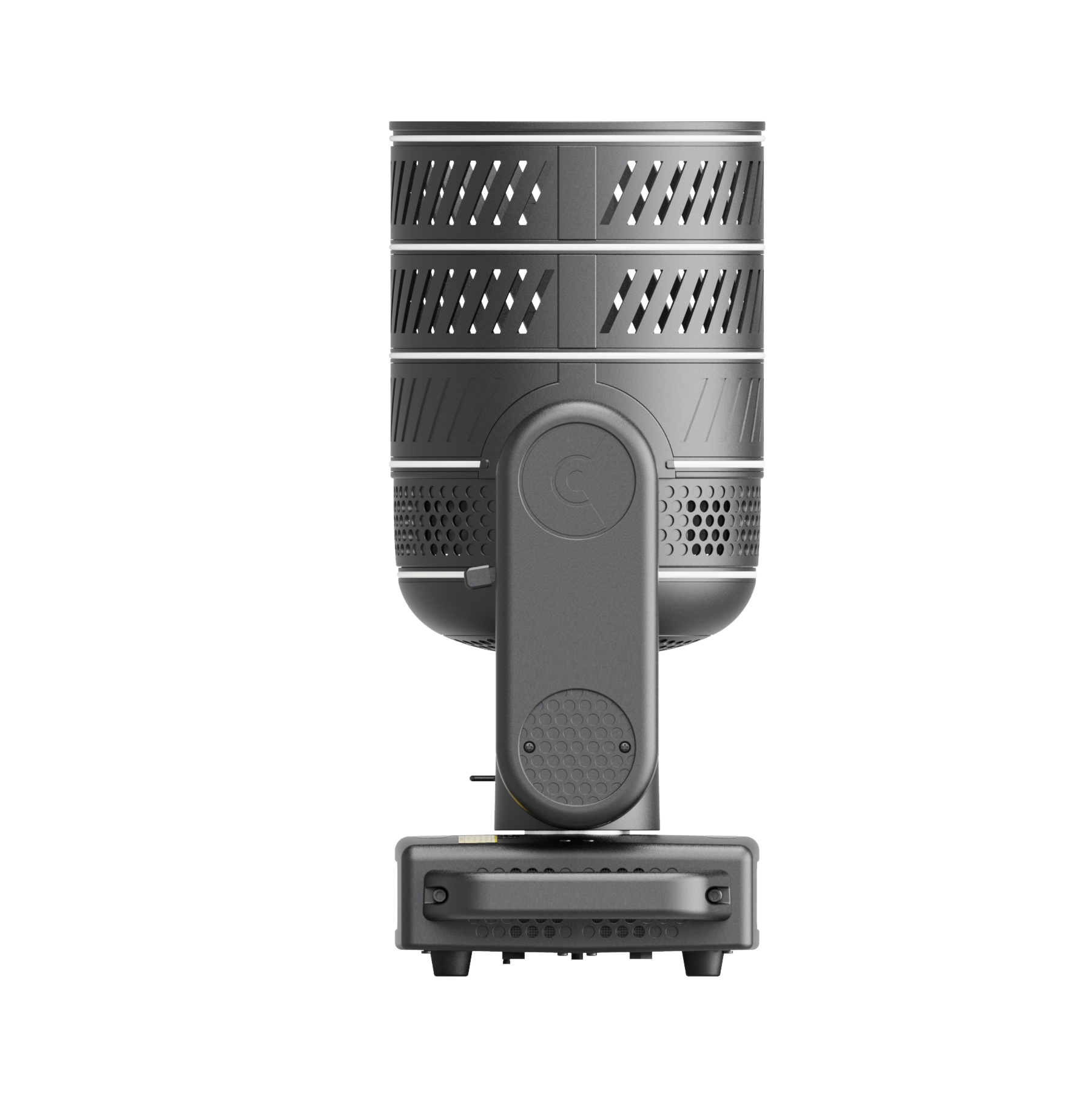

  • Midi-B FX side view
  • Midi-B FX rear view
  • Midi-B FX wash light
  • Midi-B FX independently controllable LED rings
  • Midi-B FX creative visual impact
  • Midi-B FX creativity
  • Midi-B FX wash and effect light
    • Go to photo 1
    • Go to photo 2
    • Go to photo 3
    • Go to photo 4
    • Go to photo 5
    • Go to photo 6
    • Go to photo 7
    • Go to photo 8
    NEW

    Midi-B FX: From Wash to Wow!

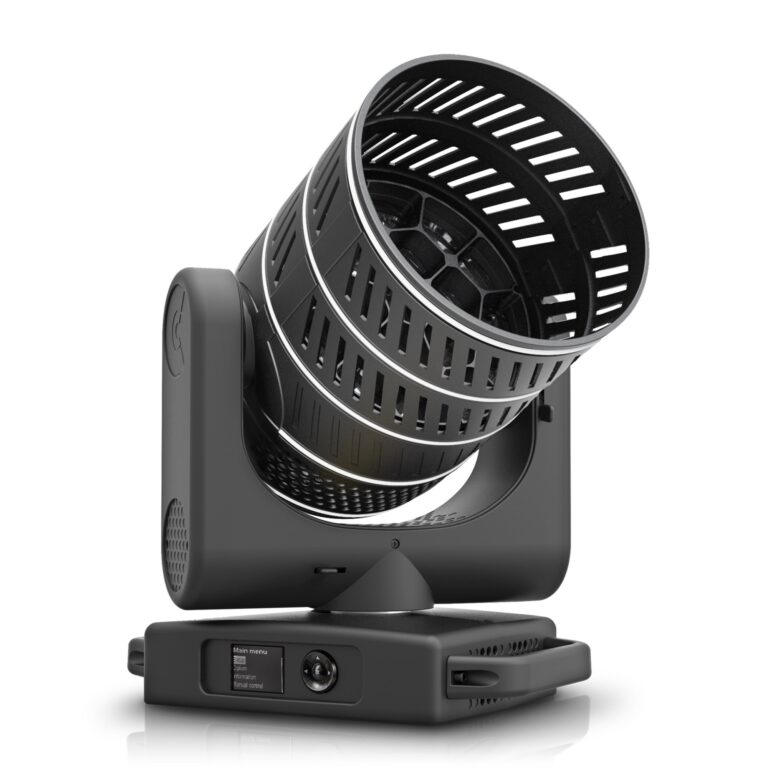

    Midi-B FX is a versatile moving head washlight that also serves as a stunning visual effects tool. It combines powerful RGBW lighting with a unique top hat design featuring five LED rings, each independently controlled for a wide range of colors. This innovative design enhances set dynamics and adds a new creative dimension to any lighting setup for a unique blend of performance and creativity.

    Here are the key features that set the Midi-B FX apart:

    • Dual-Purpose Design: Midi-B FX combines RGBW wash lighting with decorative lighting effects, making it both a practical and aesthetic addition to any set design. Whether you’re lighting a stage or creating a dynamic visual backdrop, this fixture can do it all.

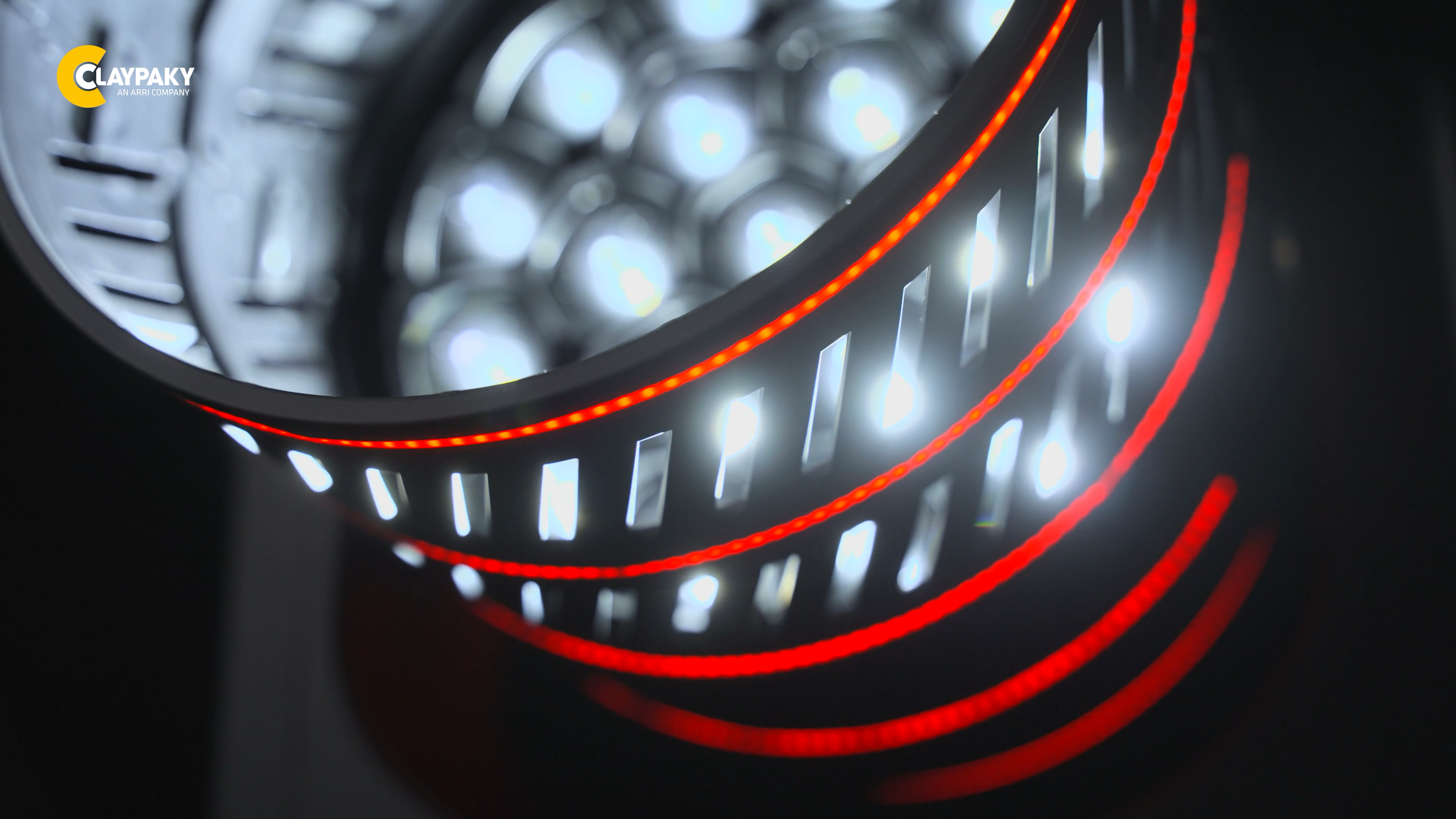

    • Innovative LED Ring Technology: The fixture features five independently controllable parallel rings of LEDs mounted around a long top hat, for a wide range of colors. This patent-pending technology creates dynamic color plays, enhancing visual appeal, particularly in TV studios, corporate events, and touring shows.
    • High-Performance Washlight Features: Midi-B FX shares the same powerful features as the original Midi-B, including an optimized HD optical system for bright and efficient output, precise and quiet movements, and a versatile zoom range of 4° to 50°. The 24-bit electronic dimmer with five dimmer curves ensures balanced colors throughout the dimming process.
    • Easily Convertible Design: For added versatility, the Midi-B FX can be easily converted back into a standard Midi-B by replacing the top hat. This optional accessory allows the fixture to adapt to different roles and settings, making it a valuable tool for any lighting designer.
    • Advanced Color Control: Featuring 2500K to 8000K color temperature correction and crossfade channels between color and CTO, the Midi-B FX enables smooth transitions between preset whites and any RGBW value or between different color macros, giving lighting designers greater flexibility and control over the final look.

    Midi-B FX is just what you need if you want top-notch RGBW wash lighting and eye-catching set design elements. It’s the perfect combo of bright, high-quality light and cool visual effects to take your production to the next level. Ready to add a new dimension to your design palette?

    • Light Source
      19 x 40W RGBW LEDs + 5 rings of circular and parallel RGB LED strips, each independently controllable
    • Light Output
      11,400 lm
    • Zoom range
      4°- 50°
    • Effects
      Linear CTO 2500K to 8000K; Preset Macro colors; Motorized Zoom; High resolution electronic Dimmer - 24 bit (5 curves); High speed electronic Strobe
    Data Sheet DMX Channels

    Highlights

    Specs

    LIGHT SOURCE TYPE

    • 19x Osram 40W RGBW LEDs.
    • Five circular and parallel rings in RGB LED strips, each independently controllable
    • 1900 lumen each LED
    • Lamp life expectancy: 50000Hrs (20000Hrs L70* )
      *It may vary depending on various factors, as type of use and environment

    PHOTOMETRIC DATA

    • Zoom range: 4° - 50°
    • 11401 Lumen Output (Integrating Sphere)
    • High efficiency optical system
    • High efficiency optical system

    NOISE LEVEL

    • Auto mode: 39.1dBA
    • SLN Fan Mode: 35.0dBA
    • Constant Fan Mode: 40.0 dBA
    • Theatre Fan mode: 34.6 dBA

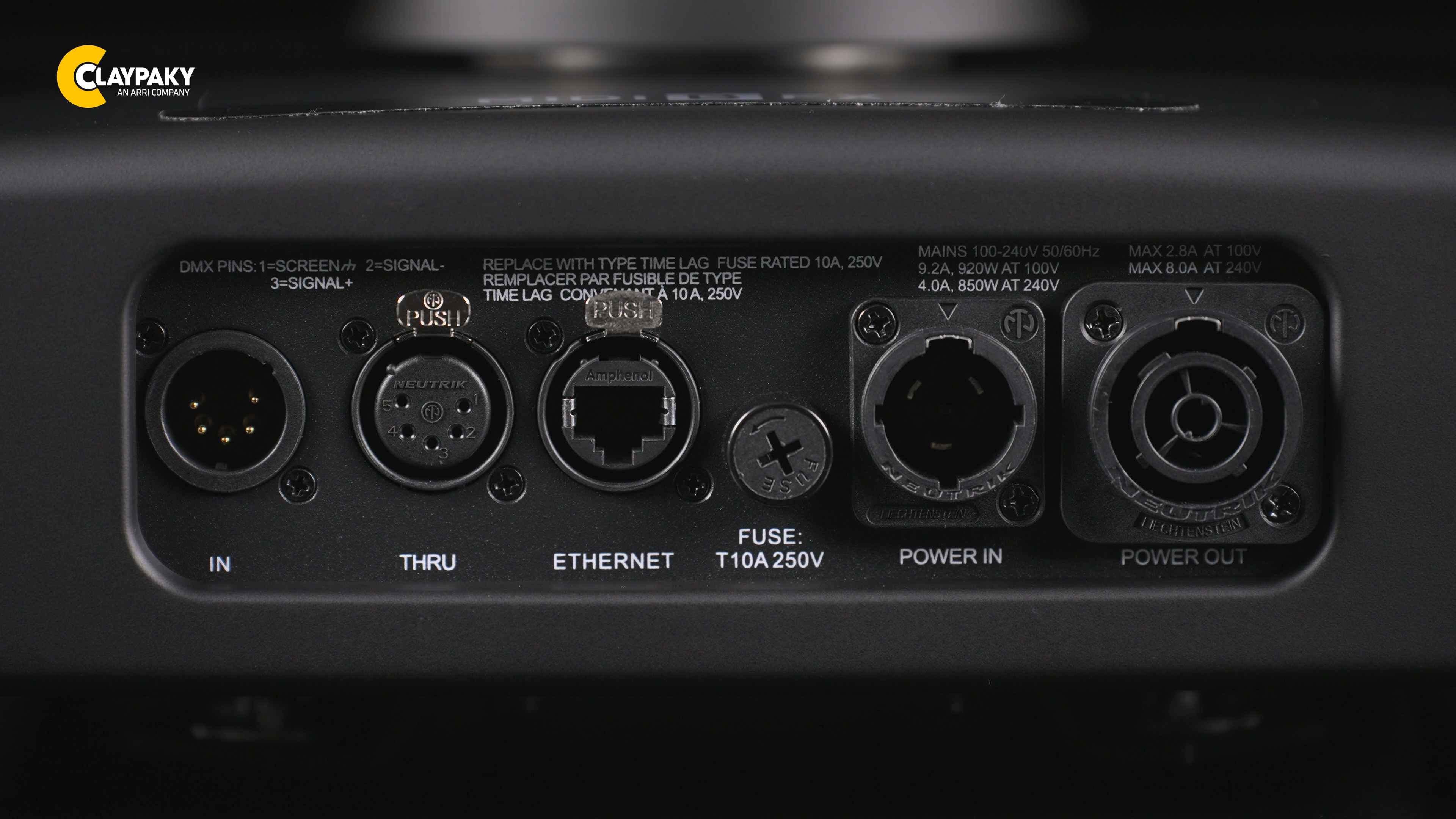

    CONTROL and CONNECTIONS

    • Personalities: 4 modes with 23/30/43/70 control channels
    • Control Protocol: DMX, Art-Net, RDM, sACN

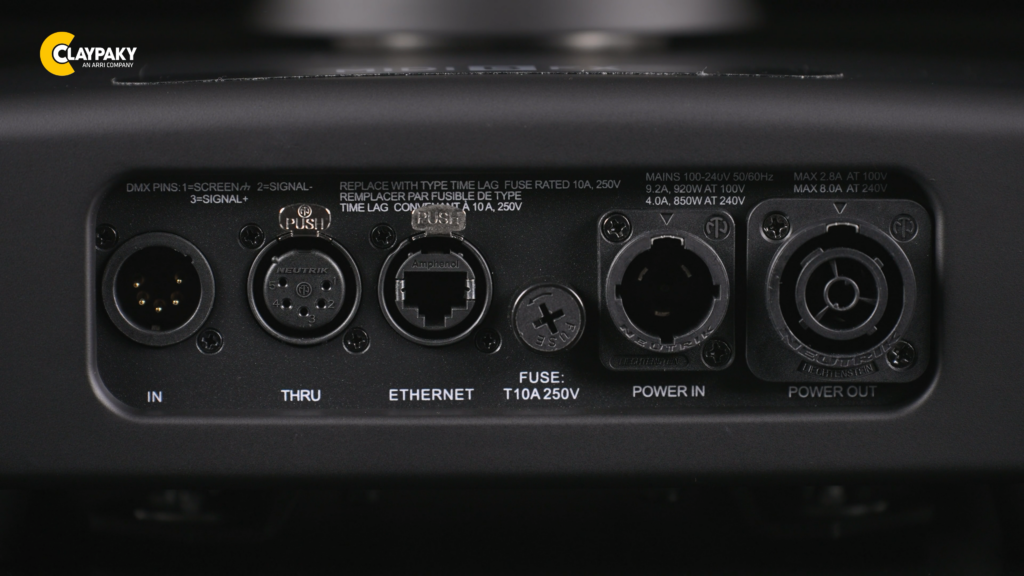

    • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
    • Ethernet port: RJ45 IN
    • Power connector: PowerCon True1 IN
    • Built In Web Server

    DYNAMIC EFFECTS

    • Colours:
      • Linear RGBW
      • Five circular and parallel rings in RGB LED strips
      • Linear CTO (2500K to 8000K color temperature control)
      • Preset Macro colors.
      • Three independently controlled LED ring
    • Movement:
      • Tilt: 220° - 16bit
      • Pan: 540° - 16bit
      • Automatic repositioning
      • Fast/Standard speed selectable by Function channel
      • Mechanical Pan/Tilt lock for safe transportation and maintenance
    • Beam:
      • Motorized Zoom
      • Automatic repositioning when DMX is disconnected
    • Dimmer/Shutter:
      • High resolution dimmer 24 bit (5 curves)
      • High speed electronic Strobe

    HARDWARE and SOFTWARE

    • Long life self-charging battery
    • Display Graphic LCD backlit b/w Display
    • Firmware upload from another fixture
    • Firmware Upgrade via Web Server
    • Diagnostic
    • DMX monitoring
    • Remote access through RDM
    • CloudIO compatibility

    HOUSING

    • Aluminum and steel structure with plastic covers
    • Two side handles for transportation
    • IP20 protection rate

    WORKING POSITION

    • Working in any position
    • Hanging system: with fast-lock omega clamps (1/4 turn) on the base pn 183102/805
    • Optional safety chain

    ELECTRICAL

    • Operating Voltage: 100-240V, 50/60 Hz
    • Power Supply: Electronic auto range with active PFC
    • Max Power consumption: 830VA

    THERMAL SPECIFICATION

    • Max ambient temperature 45°C (113°F)
    • Min ambient temperature -20°C (-4°F)
    • Max temperature of the external surface 90°C (194°F)
    • Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%

    SAFETY SPECS

    • Minimum distance of illuminated objects 8 meters (26’ 3”)
    • Minimum distance from flammable materials 0.2 meters (8”)
    • Fuse T10A – 250V
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans

    COMPLIANCE

    • In conformity with the European Directives:
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU - Electromagnetic Compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
    • cMETus Listed

    PACKAGING

    • Carton box + Polystyrene
    • Carton box + Foam shell
    • Flight case + Foam shell (4 positions)

    WEIGHT - SIZE

    •  19 kg (41.8 lbs))
    • (LxWxH): 390 x 252 x 600 (15.35 x 9.92 x 23.62 in)
    • Distance between two fixtures 900mm

    ACCESSORIES

    • Omega clamps: 2 x 183102/805 (included)
    • Power cord: CAB02B-802 (included)
    • Foam shell: F21341-001 (optional)
    • Flight case: CF1025 – without foam shells (optional)
    • Flight case:CF1025F – with 4 foam shells included (optional)
    • Safety Chain: 105041/003 (optional)
