Sharpy X Frame / FD

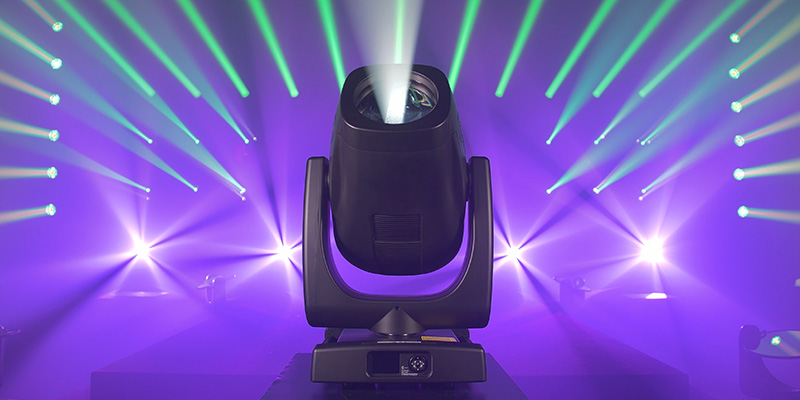

Adding to the family of the award-winning SHARPY fixtures, Claypaky introduces the SHARPY X FRAME multifunction luminaire. The SHARPY X FRAME takes the best features of the SHARPY line and integrates a four-focal plane shutter system in a lightweight, compact fixture. The unit’s source is the powerful 550- Watt arc lamp that makes this fixture extremely bright and produces deep and vivid uniform colors (including an unmatched deep red).

The unit boasts the flexibility to be the light you need when you need it. As a completely hybrid, multifunction fixture, the SHARPY X FRAME not limited as to beam effects, it can also be a spot, profile, or wash unit. This fixture replaces much larger luminaires using the longer life 550- Watt arc lamp.

Although a small fixture by most standards, nothing is sacrificed in the SHARPY X FRAME fixture’s feature set. In addition to the four-focal plane shutter system, the unit offers a rotating gobo wheel with eight rotating gobos, a static gobo wheel, four and eight-facet rotating prisms, linear frost, a color system featuring CMY, CTO and a separated color wheel, and six beam reducers starting at 0.5°.

With a zoom range from 3° to 52° (spot mode) and 2° to 29° (beam mode), the SHARPY X FRAME can do unparalleled visual effects. The unit is fitted with a 160mm front lens and proven Claypaky optics for producing sharp images and collimated beams.

The SHARPY X FRAME is the most versatile, compact hybrid fixture on the market that addresses the needs for a bright spot, aerial effects unit, framing fixture and everything in between in an affordable, compact package.


Thanks to the continuous success that Sharpy X Frame is showing internationally and across many market segments, a new version has been introduced: the SHARPY X FRAME FD. Equipped with minor, yet worthy, solutions suitable for broadcasting application, Sharpy X Frame FD has immediately found appreciation from TV Lighting Designers. It features a brilliant and lighter magenta color filter (with a different color gamut delivering “camera-friendly” tonalities), and a light frost filter allowing soft-edge effect on gobos and framing blades.

  • Light Source
    550W arc lamp
  • Light Output
    18,800 lm
  • Zoom range
    3°-52° (spot mode) and 2°-29° (beam mode)
  • Effects
    Linear CMY color mixing; Linear CTO; Fixed color wheel with 14 dichroic colors; 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos; 1 Static Gobo Wheel with 18 gobos; 4-blade Framing system;Linear heavy frost for wash effect; Animation wheel; 2 rotating prisms (4 and 8 facet); Motorized iris; Motorized Zoom and Focus; High resolution dimmer 16 bit; Shutter and Strobe effect
Data Sheet DMX Channels Photometrics PDF



Save as pdf and print


  • Philips 25R 550W lamp
  • CRI: 80+
  • Colour Temperature: 8000K
  • Lamp life expectancy: 1500 hrs
    *It may vary depending on various factors, as type of use and environment


  • Zoom range: 3° to 52° (Spot mode) – 2° to 29° (Beam mode)
  • 18800 Lumen Output (Integrating Sphere)
  • Front lens diameter: 160mm
  • High efficiency optical system


  • Auto fan mode: 49.3 dBA


  • Personalities: Single mode with 43 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN
  • DMX and RDM connectors: Locking 5 pin XLR IN/THRU
  • Ethernet port: RJ45 IN
  • Power connector: PowerCon True1
  • Built In Web Server


  • Colours:
    • Linear CMY colour mixing (brilliant and lighter Magenta in the Sharpy X Frame FD model)
    • Linear CTO
    • Fixed color wheel with 14 dichroic colorss
  • Gobos:
    • 1 Rotating gobo wheel with 8 HD Indexable and replaceable gobos
    • Rotating gobo dimensions:
    • Ext diam. 19 mm
    • Image diam. 13.5 mm
    • Thickness 1.1mm
    • 1 Static Gobo Wheel with 18 gobos
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system
    • “Total Curtain" effect allowing the full blackout with each single blade
    • Built In macros
  • Frost:
    • Linear heavy frost 5° for wash effect Sharpy X Frame
    • Linear light frost 2° for wash effect Sharpy X Frame FD
  • Rotating Effects
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 2 prisms (4 and 8 facet) with rotation in both direction at variable speed
  • Iris:
    • Motorized with variable pulse and random effects
  • Movement:
    • Tilt: 270° - 16bit
    • Pan: 540° - 16bit
    • Accuracy: Resolution ± 0.27° (Range 0.54°)
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • High resolution dimmer 16 bit
    • Shutter and Strobe effect


  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access throug


  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP20 protection rate


  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain


  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 750VA


  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2562 BTU/hr ±10% / 2700 kJ/hr ±10%


  • Minimum distance of illuminated objects 8 meters (26’ 3”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Fuse T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans


  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed


  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)


  • 28 Kg (61.7 lbs)
  • 306x350mm (base dimension) – 668 with vertical head (h)
  • Distance between two fixtures 505mm


  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
  • Foam shell: F21326/001 (optional)
  • Flight case 2 positions: CF1006 (optional)
  • Safety Chain: 105041/003 (optional)
  • Sharpy X Frame to Sharpy X Frame FD conversion kit : CA3005000102 (optional)
  • Sharpy X Frame FD to Sharpy X Frame conversion kit : CA3006000102 (optional)
