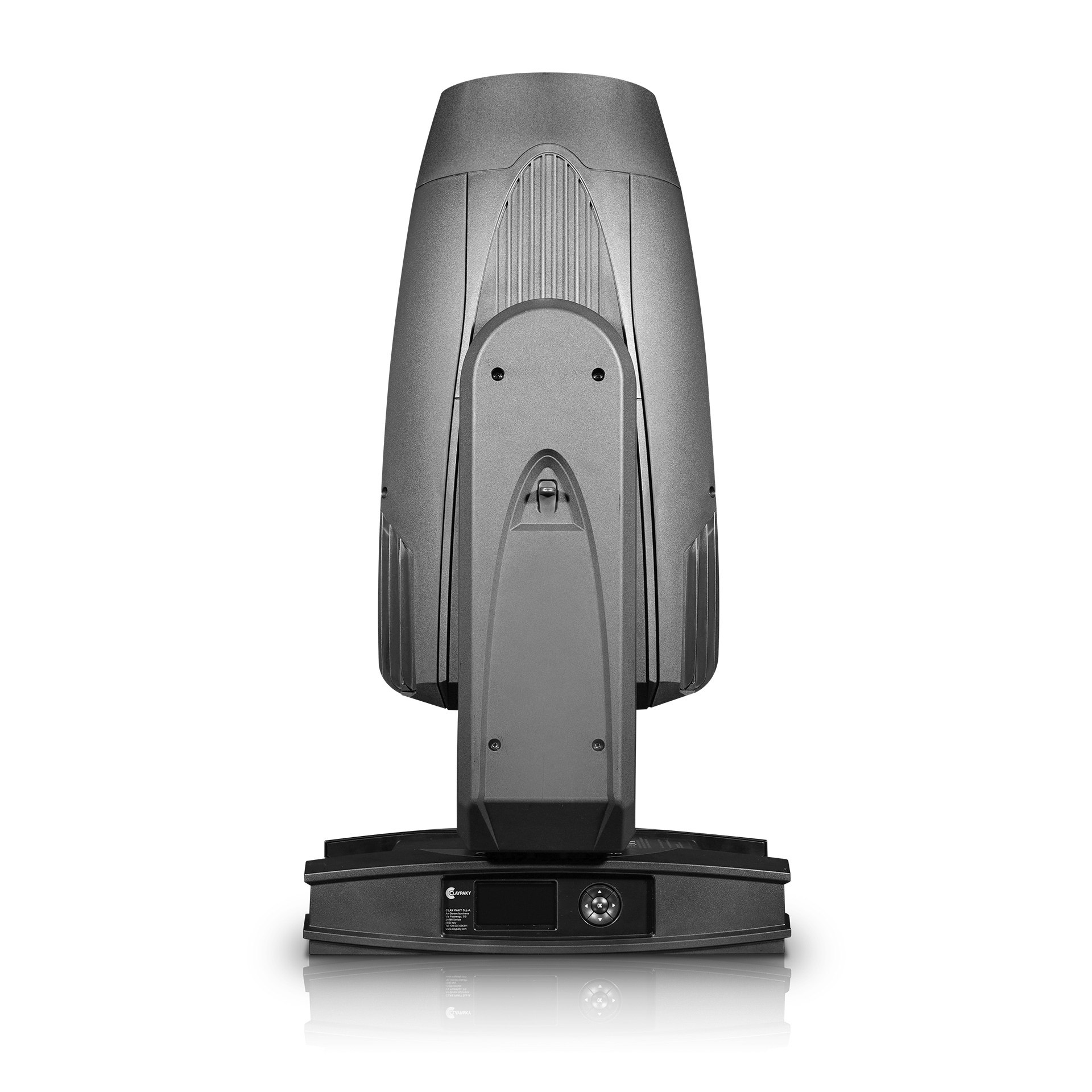

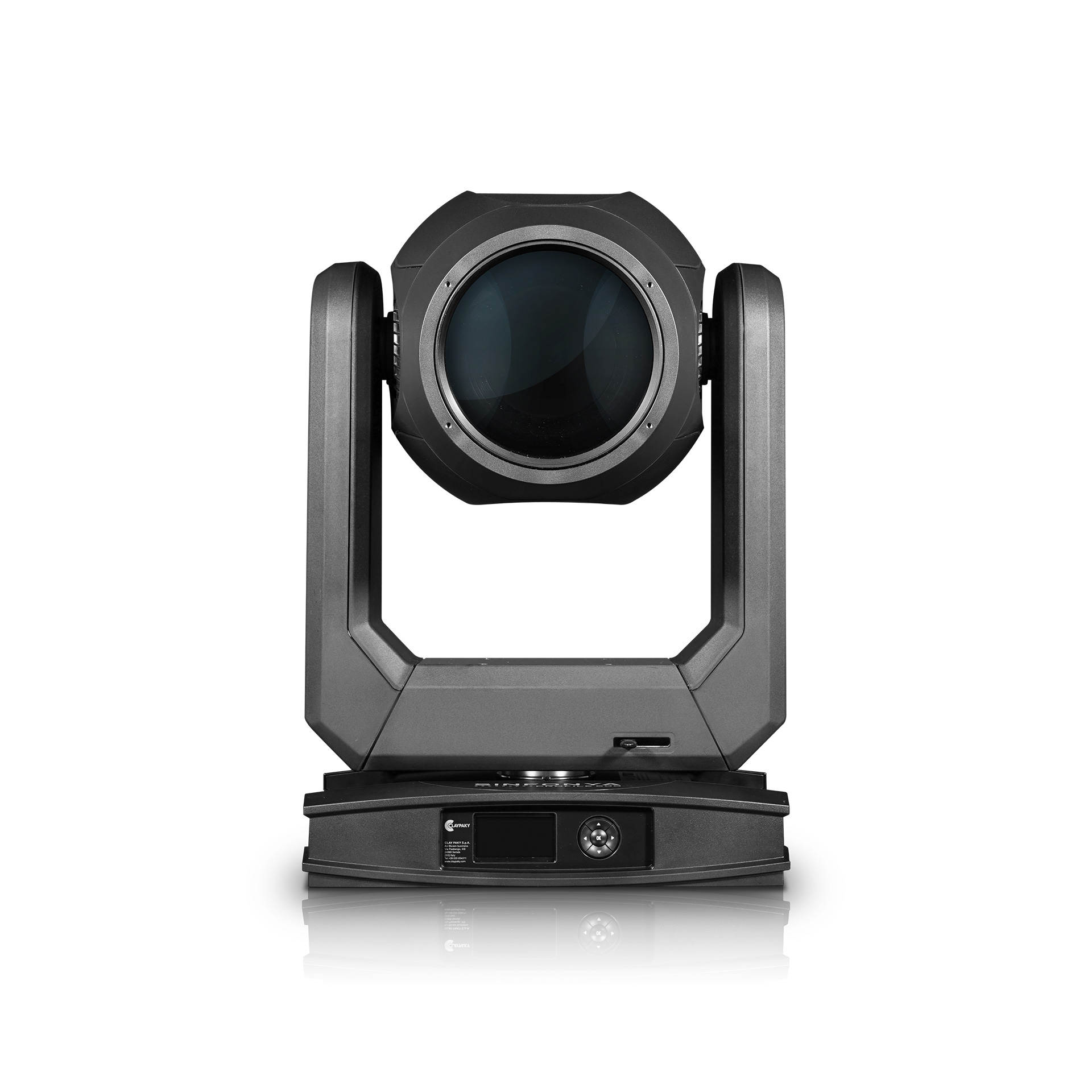

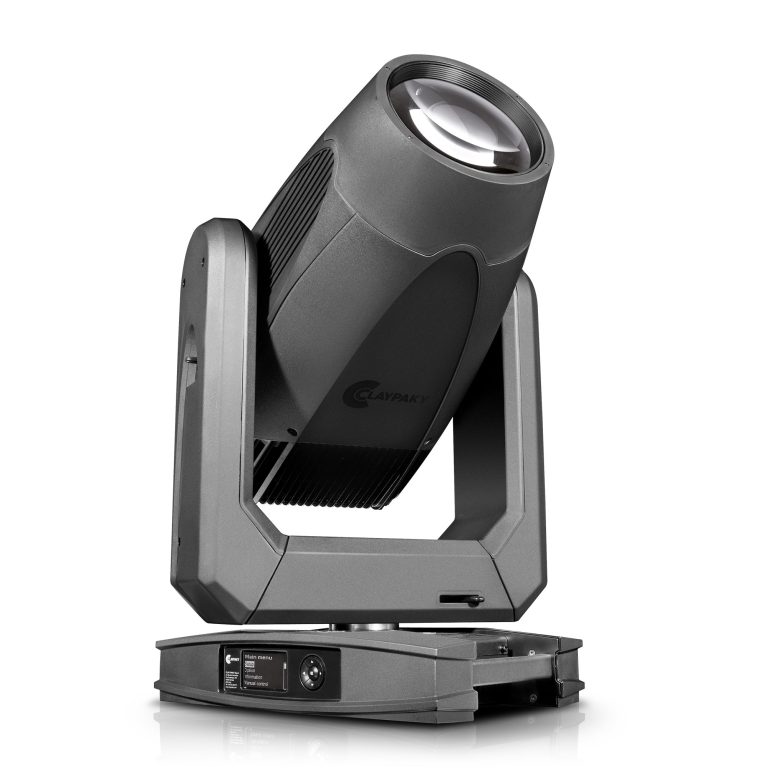

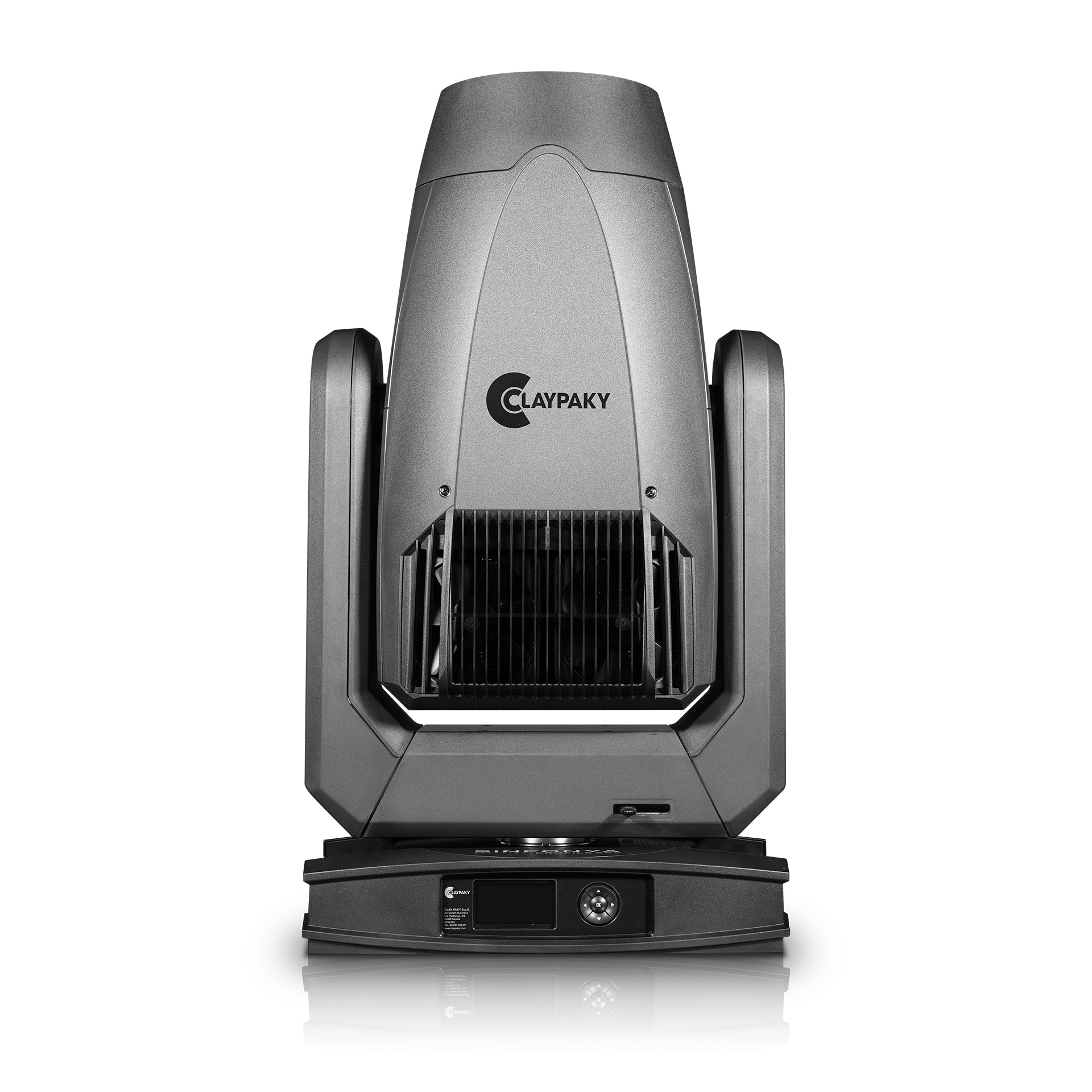

Sinfonya Profile 600

CL3018

NEW

Sinfonya Profile 600 is a unique, low noise LED based fixture, conceived and developed exclusively for the theater market. Exclusive features are TONEDOWN^TM for a low noise operation (27dB), ACCUFRAME^TM (new framing system using 2 focal planes: 40 times more precise than traditional framing systems), New Proprietary Optical System (featuring an impressive 5° to 60° Zoom); Five-color LED Light engine (RGBAL) controlled by a special, internally developed firmware algorithm; New Calibration Syncing for matching the color temperatures to other fixtures; Absolute Position for the advanced PAN & TILT control; LINEGUARD, a new frost system using two pair of blades. Sinfonya Profile 600 is the truly next generation of lighting for Theatres

Theatres are demanding applications that require extremely low noise operation, very high quality of light and control along with precision of re-positioning. We are now delighted to introduce the first of a brand-new family of LED fixtures designed and manufactured exclusively for the Theatre market.
The new Sinfonya series from Claypaky addresses all the special needs and provides brand new levels of performance that were simply not possible before.
Sinfonya Profile 600 is stylish, and packed full of technology. What makes Sinfonya different is its excellent core technology that offers endless possibilities for theatre designers thanks to a wide variety of features specifically developed for the theatrical productions.

Light Source

600W RGBAL LED Engine
Light Output

12,050 Lumen Output
Zoom range

5°- 60°
Effects

RGBAL control; Virtual CTO; Digital filters; 4-blade Framing system; 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos; Light frost 1° for soft diffusion (interchangeable); Heavy frost 5° for wash effect (fixed); Animation wheel; 4-facet rotating prism; 16 blade motorized iris; Pan & Tilt Absolute position; Motorized Zoom and Focus; Electronic Dimmer - 24 bit, 4 curves; Electronic Shutter and Strobe

Datasheet DMX Channels Photometrics PDF

Highlights

TONEDOWN™

TONEDOWN™

To enable true silent operation on stage, Claypaky redesigned the cooling system: even at full output the noise is just 27dB. In addition to this, the fan has been taken out of the base. This reduces noise even further on stage and removes black noise from other frequencies that can sometime be annoying.
The fixture can even be used with no fan at all and reduced light output for intimate moments.
TONEDOWN™ is a feature that was impossible to achieve before and gives a huge scope for designers and theatre directors to incorporate stunning new choreography and performance aspects.
ACCUFRAME™

ACCUFRAME™

Previously fixtures used four focal planes, but this led to loss of sharpness. By utilizing two planes we can physically change the design and achieve a much higher focus. We can still create the triangle and curtain effect.
Saving time in programming and re-focusing was a key request from designers.
Our team found a new way to do this and dramatically improve performance at the same time. It is 40 times more precise than traditional framing systems.

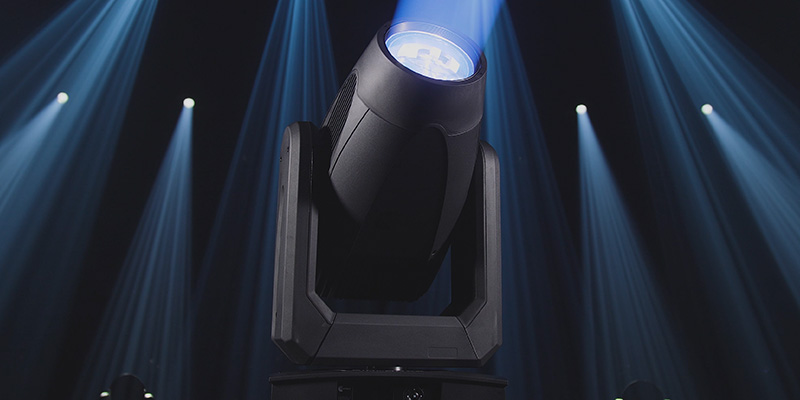

Advanced firmware and Five-color LED Light engine (RGBAL)

Advanced firmware and Five-color LED Light engine (RGBAL)

New, sophisticated firmware gives us precise control over the beam in our multicolor engine.
This provides vibrant and rich colors optimised for the stage or TV with high CRI and TLCI levels. It’s much simpler to install and operate saving time and controls our five-color LED light engine (RGBAL) precisely. More importantly the high control of the engine means the quality of light in the beam is exceptional. All this is possible thanks to the special firmware algorithm, developed internally by Claypaky.
Calibration Syncing

Calibration Syncing

This is a wonderful development that allows both older and brand-new fixtures to be perfectly tuned together to the same color temperature and outputs. Using our CloudIO software and measuring equipment we can tune the new Sinfonya fixtures to others in the theatre for you.
This provides for consistency across the theatre or touring production using a mix of fixtures.
We can measure the color reference point of another luminaire and match it perfectly your new Sinfonya fixtures on site, whatever their age and brand.

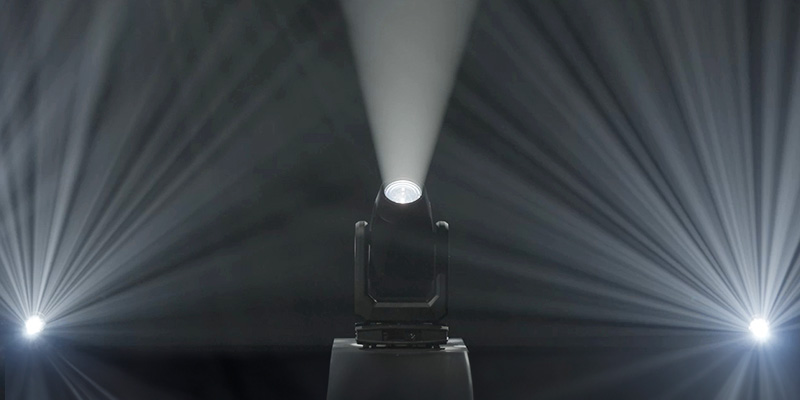

Absolute Position for the advanced PAN and TILT control

Absolute Position for the advanced PAN and TILT control

If you have the need to turn the fixture on and off during a performance, you won’t hear and see the annoying movement of Pan and Tilt re-setting. We have a sensor inside Sinfonya that remembers the position in real time, this allows for precision re-positioning crucially with no movement when doing a hard reset therefore avoiding unnecessary movement which could distract the audience.
The Absolute Position of Pan and Tilt is also the first on the market. We are so proud of this feature because it will save time for designers on stage.
LINEGUARD: a new frost system using two pair of blades.

LINEGUARD: a new frost system using two pair of blades.

Traditionally a single blade does not provide a uniform effect, our new approach using pairs provides much higher uniformity. By using two for soft edges and two for a real wash effect we can improve performance. It removes the annoying effect of unwanted reflection when the blades are inserted into the beam and is much more pleasant to the audience.

Specs

LIGHT SOURCE TYPE

• 600W RGBAL LED Engine
CRI: Up to 95
Colour Temperature: 2500 to 8500 K
LED life expectancy: 40000Hrs L70*
*It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

Zoom Range: 5°- 60°
12050 Lumen Output (Integrating Sphere)
Front Lens Diameter: 160mm
High Efficiency Optical System

NOISE LEVEL

FAN Channel: Able to control linearly the speed of the FANS
- Full Output @27dbA (20° ambient temperature)
- Full Output @35dbA (30° ambient temperature)
- Fanless modality with reduced output

CONTROL and CONNECTIONS

Personalities: Three modes with 43/49/59 control channels
Optional Wireless DMX system (Lumen Radio)
Control Protocol: DMX, Art-Net, RDM, sACN
DMX and RDM connectors: Locking 5 pin XLR IN/THRU
Ethernet port: RJ45 IN
Power connector: PowerCon True1 IN/OUT
Built In Web Server

DYNAMIC EFFECTS

Colours:
- RGBAL control
- Virtual CTO
- Digital filters
Gobos:
- 1 Rotating gobo wheel with 6 HD Indexable and replaceable gobos
- Ext Diam. 32.9 mm
- Image Diam. 22 mm
- Thickness 1.1mm
Framing system:
- 4 Blades with +/- 45° Rotation of the full system, 2 Focal Planes
- “Total Curtain" Effect Allowing the Full Blackout with each single blade
Frost:
- Light Frost 1° for Soft Diffusion (Interchangeable)
- Heavy Frost 5° for Wash Effect (Fixed)
Rotating Effects:
- Aluminum animation wheel with continuous rotation in both direction at variable speed
- 4-facet prism with rotation in both directions at variable speed
Iris:
- 16 Blade motorized with variable pulse and random effects
Movement:
- Tilt: 270° - 16bit
- Pan: 540° - 16bit
- Accuracy: Resolution ± 0.06° (Range 0.12°)
- Absolute position
- Automatic repositioning
- Mechanical Pan/Tilt lock for safe transportation and maintenance
Beam:
- Motorized Zoom and Focus
Dimmer/Shutter:
- High resolution electronic Dimmer - 24 bit, 4 curves
- High speed electronic Shutter and Strobe

HARDWARE and SOFTWARE

Long life self-charging battery
Display Graphic LCD backlit b/w Display
Firmware upload from another fixture
Firmware Upgrade via Web Server
Diagnostic
DMX monitoring
Remote access through RDM
CloudIO compatibility

HOUSING

Aluminum and steel structure with plastic covers
Two side handles for transportation
IP20 protection rate

WORKING POSITION

Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base
Optional safety chain

ELECTRICAL

Operating Voltage: 100-240V, 50/60 Hz - In/Out Max 1200 VA
Power Supply: Electronic auto range with active PFC
Max Power consumption: 770 VA

THERMAL SPECIFICATION

Max ambient temperature 40°C (104°F)
Min ambient temperature -20°C (-4°F)
Max temperature of the external surface 40°C (104°F)
Total heat dissipation: 2220 BTU/hr ±10% / 2340 kJ/hr ±10%

SAFETY SPECS

Minimum distance of illuminated objects 2 meters (6’ 7”)
Minimum distance from flammable materials 0.2 meters (8”)
Thermally protected power supply (overheating and cooling failure)
Forced ventilation with axial fans

COMPLIANCE

CE: Conforms to the European Directives
UKCA: Conforms to UK Regulations
cMETus Listed

PACKAGING

Carton box + Polystyrene
Carton box + Foam shell
Flight case + Foam shell (2 position)

WEIGHT - SIZE

36,8 Kg (81.1 lbs)
293x417mm (base dimension) – 796mm with vertical head (h)
Distance between two fixtures 700mm

ACCESSORIES

ETL Power cord 1.5mt. (bare end with IP65 PowerConTrue1 connector): CAB02B-802 (included)
Omega bracket: 2x183102/805 (Included)
Top Hat: CA3019000102 (Included)
Handle: CA3021000102 (Optional)
Gel Holder: CA3022000102 (Optional)
Frost filter (10°): CA3020000102 (Optional)
Foam shell: F21327-001 (Optional)
Flight case (2 pos.): CF1012 (Optional)
Safety Chain: 105041-003 (Optional)
Clamp: C21070 (Optional)
PowerCon Thru1: CAB0K1/802 (Optional)
