Ultimo Sharpy

CD3040
NEW Claypaky Shield Family IP66 logo

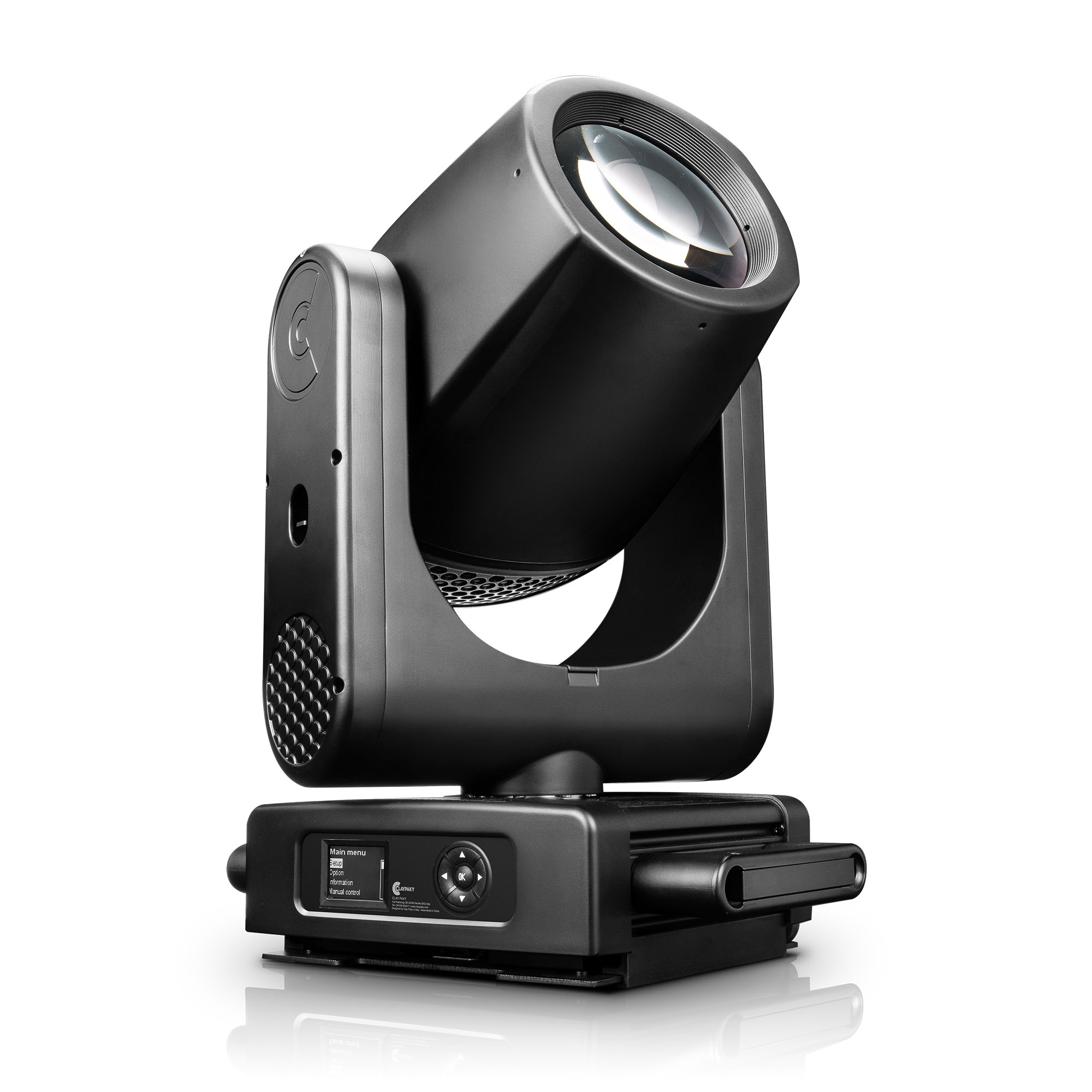

Ultimo Sharpy: The Icon Returns. Sharper Than Ever.

Meet the new benchmark in compact beam lighting: Ultimo Sharpy.
Ultimo Sharpy is more than just a comeback — it’s a leap forward. Building on the legacy of the original Sharpy, this next-generation IP66-rated beam moving head is brighter, faster, and tougher than ever. At the heart of Ultimo Sharpy lies a brand-new 250W Ultra-High Performance short-arc lamp, designed for maximum output and sustainability.
Engineered for top-tier performance in any environment — indoor or outdoor space, a live event or a broadcast — Ultimo Sharpy delivers razor-sharp beams, ultra-smooth movement, and an unbeatable power-to-size ratio.

Here’s what makes Ultimo Sharpy a must-have:

  • Compact Size, Massive Output: With an output of 100,000 lux at 20 meters (9,300+ fc at 65 feet), Ultimo Sharpy packs the punch of a much larger fixture while retaining its iconic compact shape. Its optical system ensures a crystal-clear, halo-free beam that can cut through any venue indoors or outdoors.
  • Built for the Elements: Rain? Dust? No problem! Thanks to its IP66-rated housing, Ultimo Sharpy can withstand any weather or environment. Its robust yet lightweight design and ergonomic side handles make it easy to transport, rig, and maintain, making it ideal for tours, festivals, and permanent outdoor installations.
  • Brilliant Colors and Beam Versatility: True CMY colour mixing gives you full creative freedom, from rich, saturated hues to soft pastels, with seamless transitions. A built-in frost filter instantly transforms tight beams into smooth washes, while dual rotating prisms and gobos enable you to create layered, dynamic aerial effects with real visual depth.
  • Lightning-Fast Movement: Designed for precision and speed, Ultimo Sharpy features ultra-fast tilt and infinite pan rotation for expressive, uninterrupted motion. Whether it’s a time-coded show or a live performance, the motor control responds instantly and fluidly. And with Sharpy Emulation Mode, it can be integrated into your existing setup without the need for reprogramming.
  • Eco-Smart Performance: The lamp lasts up to 6,000 hours, reducing replacement costs and downtime. Smart dimming technology protects the lamp during low-intensity cues. Combined with recyclable components and a lower mercury footprint, Ultimo Sharpy is a smarter, greener beam fixture.
  • Perfect Fades, Zero Flicker: High-resolution electronic dimming provides smooth, cinematic fades and flicker-free output for live shows, broadcasts, and films. Whether you want to make big, dramatic changes or fine-tune subtle transitions, you can enjoy flawless control every time.

Ultimo Sharpy takes everything you loved about the original and levels it up with cutting-edge tech, powerful output, and weatherproof durability. Whether you’re lighting a stadium, filming a show, or touring the world, this is your go-to fixture for stunning looks, smooth performance, and long-term value.

This iconic product launch is just the beginning. Claypaky is gearing up to celebrate its 50th anniversary—a milestone that blends decades of lighting expertise, passion, and innovation. What better way to honor our legacy than by pushing boundaries once again? Get ready for more surprises, more creativity, and more light.

Still looking for some info about the old Sharpy? Visit this page: www.claypaky.it/products/sharpy-legacy

  • Light Source
    Custom 250W Ultra-High Performance short-arc lamp (up to 6,000 hrs lifespan)
  • Light Output
    100,000 lux @ 20 m / 9,300+ fc @ 65 ft
  • Zoom range
    2° beam angle with focus lens
  • Effects
    True CMY color mixing system (wheel-based for faster transitions) / Original 14-color fixed color wheel / Original high-contrast gobo wheel (17 position + open) / Dual independently rotating prisms / Integrated 10° frost filter / Ultra-smooth electronic dimming with high-resolution fades
Press Kit Data Sheet Photometrics PDF
Get In Touch

Highlights

Specs

LIGHT SOURCE

  • Source type: Discharge lamp
  • Power: 250W
  • Colour Temperature: 7200K
  • CRI: Up to 74
  • Lamp life expectancy: 6000 hrs L70
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 2° beam angle with focus lens
  • Lumen output: 11200 (Integrating Sphere)
  • Front lens diameter: 140mm
  • Optical system: High efficiency

NOISE LEVEL

  • Fixed preset: 50.0 dBA

CONTROL and CONNECTIONS

  • Personalities: 3 personalities with 27 / 16 / 27 control channels
  • Protocols: DMX, Art-Net, RDM, sACN
  • Connectors:
    • Locking 5 pin XLR IN/OUT
    • Ethernet port: RJ45 IN/OUT
  • Power connector: PowerCon True1 IN/OUT
  • Web Server: Built In
  • CloudIO: Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Fixed color wheel with 14 dichroic colors - True CMY color mixing system
  • Gobos:
    • 1 Static Gobo Wheel with 17 gobos
  • Frost:
    • 1 Linear heavy frost 10° for wash effect
  • Rotating Effects:
    • 1 8 facet prism with rotation in both directions at variable speed
    • 1 6 facet linear prism with rotation in both directions at variable speed
  • Movement:
    • Tilt: 275°
    • Pan: infinite rotation
    • Accuracy: Resolution ± 0.46°
    • Absolute position
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Dimmer/Shutter:
    • High resolution mechaical dimmer - 24 bit, 5 curves
    • Ultra-smooth electronic dimmer with high resolution fades
  • Special feature:
    • Sharpy emulation mode for plug-and-play legacy compatibility

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w display
  • Firmware upload from another fixture
  • Firmware upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminum and steel structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 450VA @230V

THERMAL SPECIFICATION

  • Max ambient temperature: 45°C (113°F)
  • Min ambient temperature: -20°C (-4°F)
  • Max temperature of the external surface: 90°C (194°F)

SAFETY SPECS

  • Minimum distance of illuminated objects 0.2 meters (8”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans
  • F6.3A 250V 5x20 mm – External mains fuse
  • F6.3A 250V 5x20 mm – External mains

COMPLIANCE

  • CE Marking (in conformity to the following):
    • 2014/35/EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic compatibility of equipment (EMC)
    • 2104/53/EU Radio Equipment Directive (RED)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy related Products (ErP)
  • UKCA: conforms to UK Regulations:
    • S.I. 2017 N. 1206
    • S.I. 2012 N. 3032
    • S.I. 2021 N. 745
  • cMETus Listed:
    • UL 1573:2003
    • CSA C22.2 N. 166: 2015

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell

WEIGHT - SIZE

  • Weight: 19.48 Kg (42.95 lbs)
  • Base dimensions: 358x253 mm - 14.1 x 10.0 In
  • Height with vertical head (h): 534 mm - 21.0 In
  • Distance between two fixtures: 400 mm

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • ETL Power cord: CAB02B/802 (included)
    *Cord 1.5 m (bare end with IP65 PowerConTrue1 conn.)
  • Flight case: CF1048F (optional)
  • Safety Chain: 105041/001 (optional)
  • Clamp: C21070 (optional)
