Ultimo Skybeam

CD3041
NEW

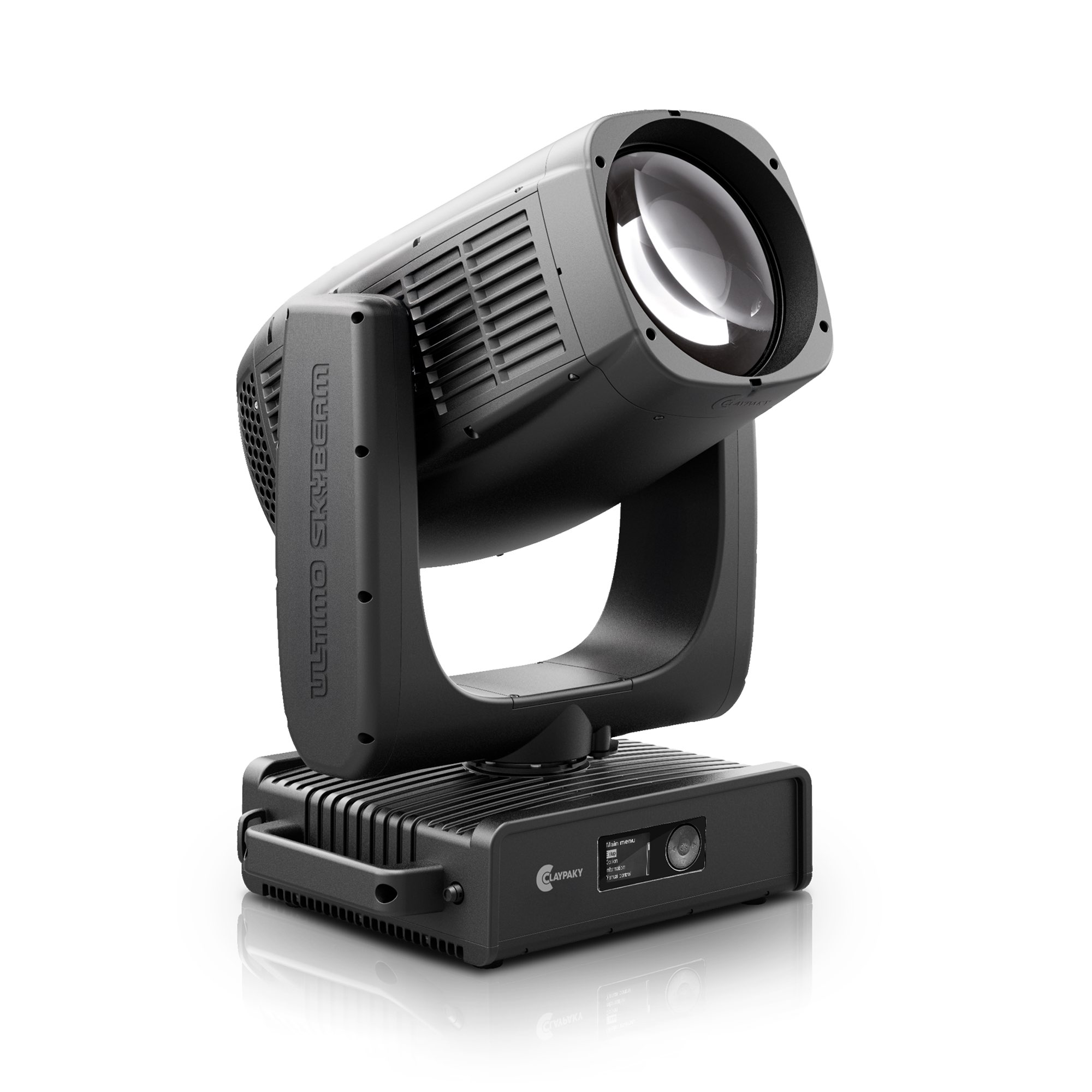

Meet the IP66-rated 420W short-arc lamp beam moving head that cuts through darkness like a laser and delivers sky-piercing effects that audiences never forget. Ultimo Skybeam transforms any venue into a show with its razor-sharp intensity and professional-grade performance.

Explore Ultimo Skybeam’s unique features:

    • Precision Beam Control: Ultimo Skybeam’s surgically precise 1.3° beam cuts through haze, fog, and atmospheric conditions. Its 200mm (7.8 in) diameter front lens and advanced internal focus system create a massive column of structured light that remains visible across vast distances, delivering the impact of a classic skytracker.
    • Efficient, Reliable, and Sustainable: Ultimo Skybeam is built for the long run. Its 420W lamp offers up to 4,000 hours of life, with reduced mercury content and lower energy consumption for more sustainable operations.

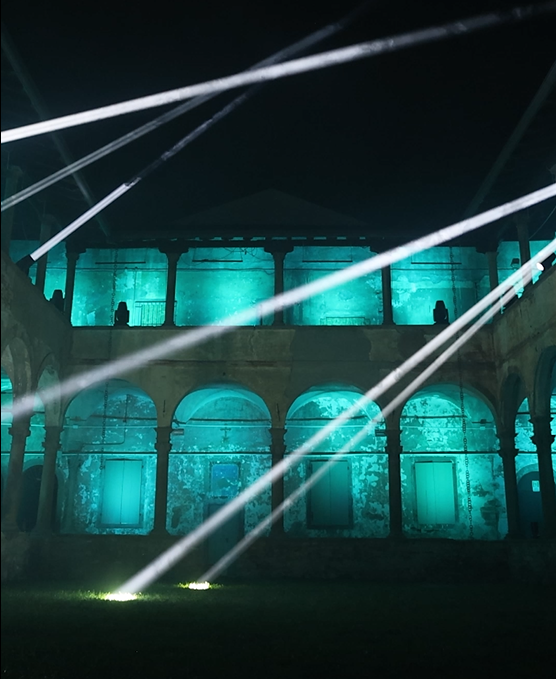

    • All-Weather Performance: With its IP66 protection rating, Ultimo Skybeam is fully sealed against water and dust, ensuring consistent performance in outdoor and harsh environments. The proprietary SunSafe Protection system automatically repositions the head to shield internal optics from direct sunlight, while the Advanced Electronic Brake System secures smooth, accurate movement. Absolute Position sensors maintain real-time precision with zero drift.
    • Full-Featured Effects Engine: Packed with features like CMY + CTO color mixing, two rotating prisms, static gobo wheel, 5° frost, motorized focus and zoom, and strobe/shutter effects, Ultimo Skybeam offers all the tools you need to craft everything from immersive atmospheres to bold, dynamic effects.
    • Wireless Control Made Simple: It shares the same design language and performance consistency as the rest of the Ultimo family—ensuring easy integration into existing systems.

Ultimo Skybeam delivers professional-level performance at a competitive investment. Whether you’re a lighting designer pushing creative boundaries or a rental company building competitive inventory, this fixture provides reliable results that enhance your reputation and bottom line.

Are you looking for a beam moving head that can cut through the night like a laser, deliver jaw-dropping aerial effects, and stand against the harshest environments? Search no more because Ultimo Skybeam is the beam for you. Ultimo Skybeam: power that cuts through the sky.

  • Light Source
    420W short-arc lamp (up to 4,000 hrs lifespan)
  • Light Output
    >14,000 lm (in integrating sphere)
  • Zoom range
    1.3° beam angle with focus lens
  • Effects
    CMY color mixing wheel / CTO wheel / 15 fixed colors / Static gobo wheel with 13 fixed gobos + 6 beam reducers / 1 8-facet rotating prism and 1 24-facet rotating prism / 5° linear soft edge frost filter / Mechanical shutter
Data Sheet Photometrics PDF
Get In Touch

Highlights

Specs

LIGHT SOURCE TYPE

  • Mercury discharge lamp 420W
  • Colour Temperature: 7800K
  • Lamp life expectancy: 5000 hrs
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 1,3° Beam mode
  • 14390 Lumen Output (Integrating Sphere)
  • Front lens diameter: ø 200mm
  • High efficiency optical system

NOISE LEVEL

  • Auto fan mode: 46.0 dBA
  • Controlled presets: Able to control linearly the speed of the fans

CONTROL and CONNECTIONS

  • Personalities: Single mode with 25 control channels
  • Control Protocol: DMX, Art-Net, RDM, sACN, CRMX (Timo FX) (Lumen Radio)
  • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
  • Ethernet port: RJ45 IN/OUT
  • Power connector: PowerCon True1 IN/OUT
  • Built In Web Server
  • Fully compatible CloudIO

DYNAMIC EFFECTS

  • Colours:
    • CMY colour mixing + 5 dichroic color x 3 wheel
    • CTO
  • Gobos:
    • 1 Static gobo wheel with 13 fixed gobos including 6 beam reducers
  • Frost:
    • 1 Linear soft edge frost 5°
  • Rotating Effects
    • 1 8-facet rotating prism
    • 1 24-facet rotating prism
  • Movement:
    • Tilt: 266,4°
    • Pan: 540°
    • Accuracy: Resolution ± 0.3° (±0° 18' 0"); Range ±0,6° (0° 36' 0")
    • Absolute position
    • Automatic repositioning
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom and Focus
  • Dimmer/Shutter:
    • Mechanical shutter

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM
  • CloudIO compatibility

HOUSING

  • Magnesium housing with plastic covers
  • Two side handles for transportation
  • IP66 protection rate

WORKING POSITION

  • Working in any position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: 700 W @ 100V

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 2400 BTU/hr ±10% / 2550 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 20 meters (65’ 7”)
  • Minimum distance from flammable materials 0.2 meters (8”)
  • Main fuse T10A – 250V
  • Battery fuse T6,3A 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

COMPLIANCE

  • CE: conforms to the European Directives
  • UKCA: conforms to UK Regulations
  • EAC: conforms to EurAseC Regulations
  • cMETus Listed

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)

WEIGHT - SIZE

  • 34 Kg (75.0 lbs)
  • 449,8x320mm (base dimension) – 687,8mm with vertical head (h)
  • Distance between two fixtures 550mm

ACCESSORIES

  • Omega clamps: 2x183102/805 (included)
  • Power cord: CAB02B/802 (included)
  • Flight case: CF1049 (optional)
  • Flight case + foam shell 2 positions: CF1049F (optional)
  • Safety Chain: 105041/003 (optional)
  • Clamp: C21070 (optional)
