Volero Twins

CL3040
Claypaky Volero Twins
NEW

What if a next-generation IP66 batten could merge the power of an effect light with the versatility of a moving head? Volero Twins does just that! It features solid beams, linear zoom, powerful strobe effects, and seamless modularity.
Equipped with dual lighting engines, endless PAN rotation, and six layers of effects, it blends bold visual impact with precision control. High-output RGBW LEDs, large lenses, and 20 cold white strobe segments create high-energy, high-definition effects for touring, TV, and EDM shows.
Volero Twins delivers a dense, solid beam with powerful, concentrated light for clean effects, ensuring high readability and sharp definition. Designed for modularity, it works as a standalone unit or connects seamlessly into modular wave configurations. Whether for long-distance projection or immersive lighting.

Volero Twins Key Features:

  • Next-Generation Design: Volero Twins redefines batten-style lighting with a sleek, panel-inspired design that enhances flexibility and visual impact. Perfect for making a statement before the first cue, it delivers bold, striking lighting.
  • Powerful Beam Projection: Each 80 x 80 mm lens projects concentrated light that cuts through haze, creating sharp effects. High-quality strobes with invisible LEDs make effects appear out of nowhere, delivering maximum impact. More powerful than the Volero Cube, these beams demand attention.
  • Long-Throw Precision: Distance is no obstacle for Volero Twins. Its long-range projection ensures your vision reaches every corner, with square lenses delivering sharp, dramatic effects. High readability keeps each beam clearly defined, offering precision for professional settings.
  • Modularity for Countless Configurations: Volero Twins is built for versatility, working as a standalone unit or within a modular system. Integrated spacers allow quick battery installation and perfect alignment, while wave mode unlocks new aesthetics. With a 3.8° to 45° zoom range, it adapts from pinpoint beams to wide washes to meet any creative need.
  • Endless Pan Feature: Volero Twins features an Endless Pan with 360° continuous rotation for smooth, uninterrupted movement. The Pan Direction Control channel allows instant reversal, perfect for mirror effects and dynamic sequences. Programming is intuitive and effortless.

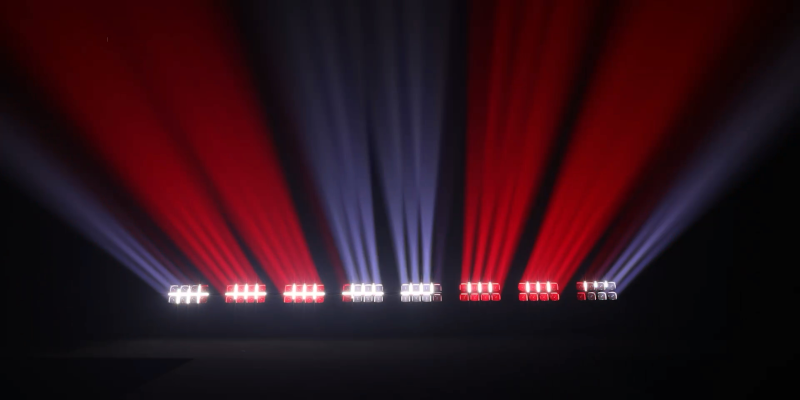

  • Advanced Layer Management: Volero Twins offers six layers for dynamic lighting, including three RGBW and three strobe layers. With single pixel mapping on RGBW (2×4) and CW arrays (20 segments), you can create complex patterns, chase sequences, and pulsing waves for limitless design possibilities.
  • All-Weather Performance: Volero Twins is built for any environment with its IP66 rating, offering reliable protection against dust and water jets for consistent performance, rain or shine.

Perfect for touring productions, TV studios, architectural installations, and EDM events. Volero Twins adapts seamlessly to any lighting requirement with uncompromising performance. Contact us today to see this next-level crossover light in action!

  • Light Source
    8 x 60W RGBW LEDs and 10 lines of cold white strobe LEDs split into 20 areas
  • Zoom range
    3.8° - 45°
  • Effects
    RGBW color mixing system; Pixel mapping control; Advanced Layer Management
Press Kit Data Sheet
Get In Touch

Highlights

Specs

Save as pdf and print



LIGHT SOURCE

  • Source type:
    • Main engine: 8 RGBW LEDs (x 60W)
    • Strobe engine: Cold white LEDs divided into 10 lines and 20 control areas (164 x 3W)
  • Power:
    • 480W (LED RGBW)
    • 492W (LED white)
  • Colour Temperature:
    • LED RGBW: 2500K to 8000 K
    • LED White: 6500 K
  • CRI:
    • Up to 70

PHOTOMETRIC DATA

  • Zoom range:
    • 3,8°- 45°
  • Lumen output:
    • 39.800 lumen output (only RGBW)

CONTROL and CONNECTIONS

  • Protocols:
    • DMX, Art-Net, RDM, sACN, Webserver
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • RJ45 IN /OUT
  • Power con:
    • PowerCon True1 IN/OUT
  • Web Server:
    • Built In
  • CloudIO:
    • Fully compatible

DYNAMIC EFFECTS

  • Colours:
    • Electronic CTO 2500 - 8000K
    • Advanced layers management (color, internal shape, pixel mapping + strobe)
    • Individual LED control of four central RGBW LEDs
    • Pre programmed shape selection of static and dynamic patterns, adjustable in color , speed, direction, fade, and strobe
  • Movement:
    • Endless Pan rotation
    • Mechanical Pan lock for safe transportation and maintenance
  • Beam:
    • Motorized Zoom
  • Dimmer/Shutter:
    • High resolution electronic dimmer, 16 bit, 5 curves
    • Electronic strobe 1 to 25 f/sec
    • High speed electronic shutter and strobe

HARDWARE and SOFTWARE

  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Magnesium housing
  • Two side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system: with fast lock Omega clamps (1/4) turn on the base

ELECTRICAL

  • Operating Voltage:
    • 100 - 240V, 50 / 60 Hz
  • Max Power consumption:
    • 1100 W @230Vac

THERMAL SPECIFICATION

  • Max ambient temperature:
    • 45°C (113°F)
  • Min ambient temperature:
    • -20°C (-4°F)



WEIGHT - SIZE

  • Weight:
    • 29,6 Kg
  • Dimensions:
    • 447 x 256 x 496 mm





Technical Documentation

E-ASSIST

For all other detailed documentation login E-Assist

You can find manuals, datasheets, DMX channel charts, photometrics, CAD symbols, spare parts, firmware files, schematics, technical notes, etc... in the new dedicated Claypaky Customer Care website (restricted access)

Sign In

Catalogues and Brochures

leaflet_Claypaky_VoleroTwins

Volero Twins leaflet

Download PDF

Video

Volero Twins – Product Presentation
