    Capitalizing on its groundbreaking light source technology and the global popularity of the Xtylos fixture used on some very high-profile productions, Claypaky is proud to introduce the next in the series of laser-based fixtures, the Xtylos Aqua. The Xtylos Aqua is IP66-rated and comparable in features and performance to the original Xtylos.

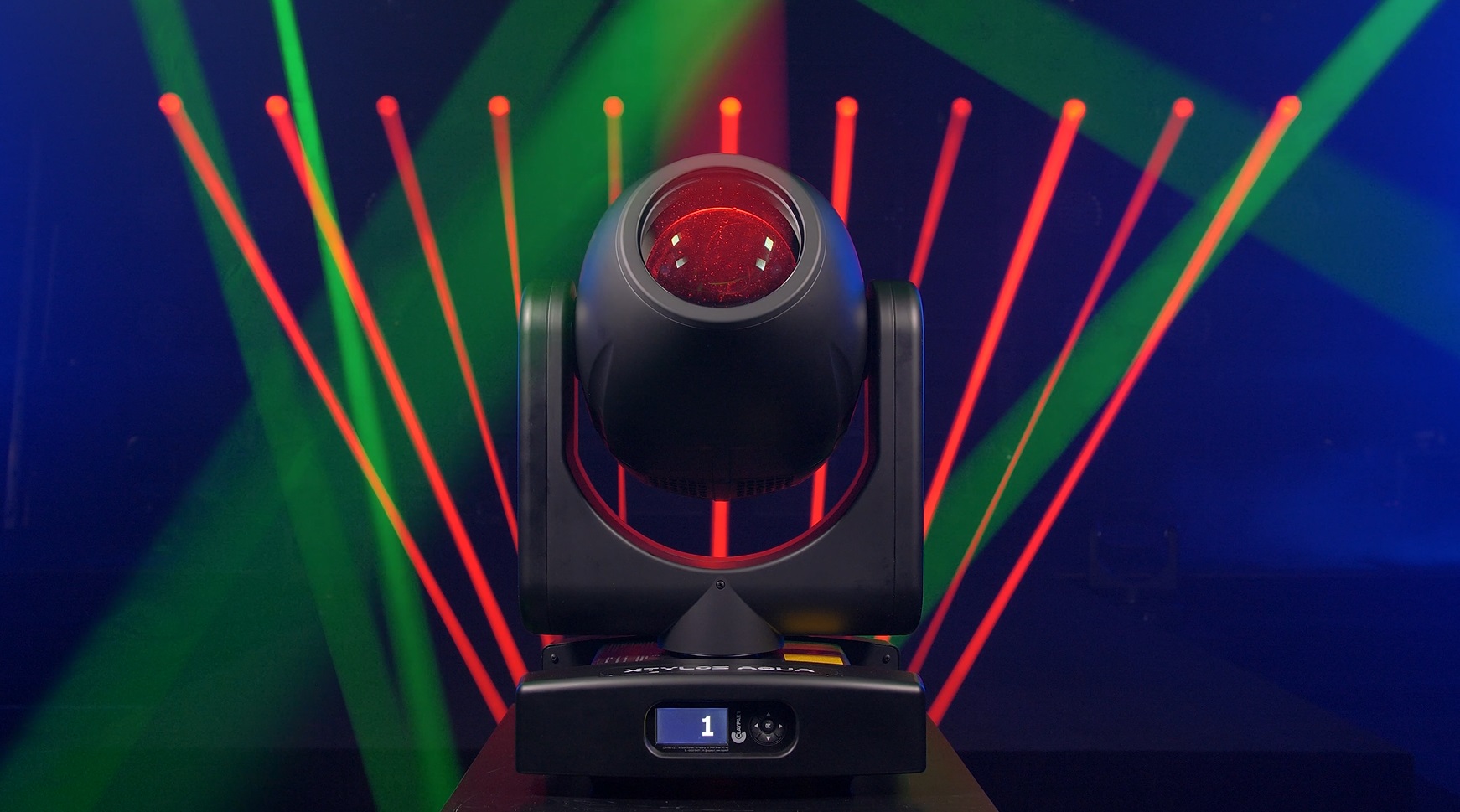

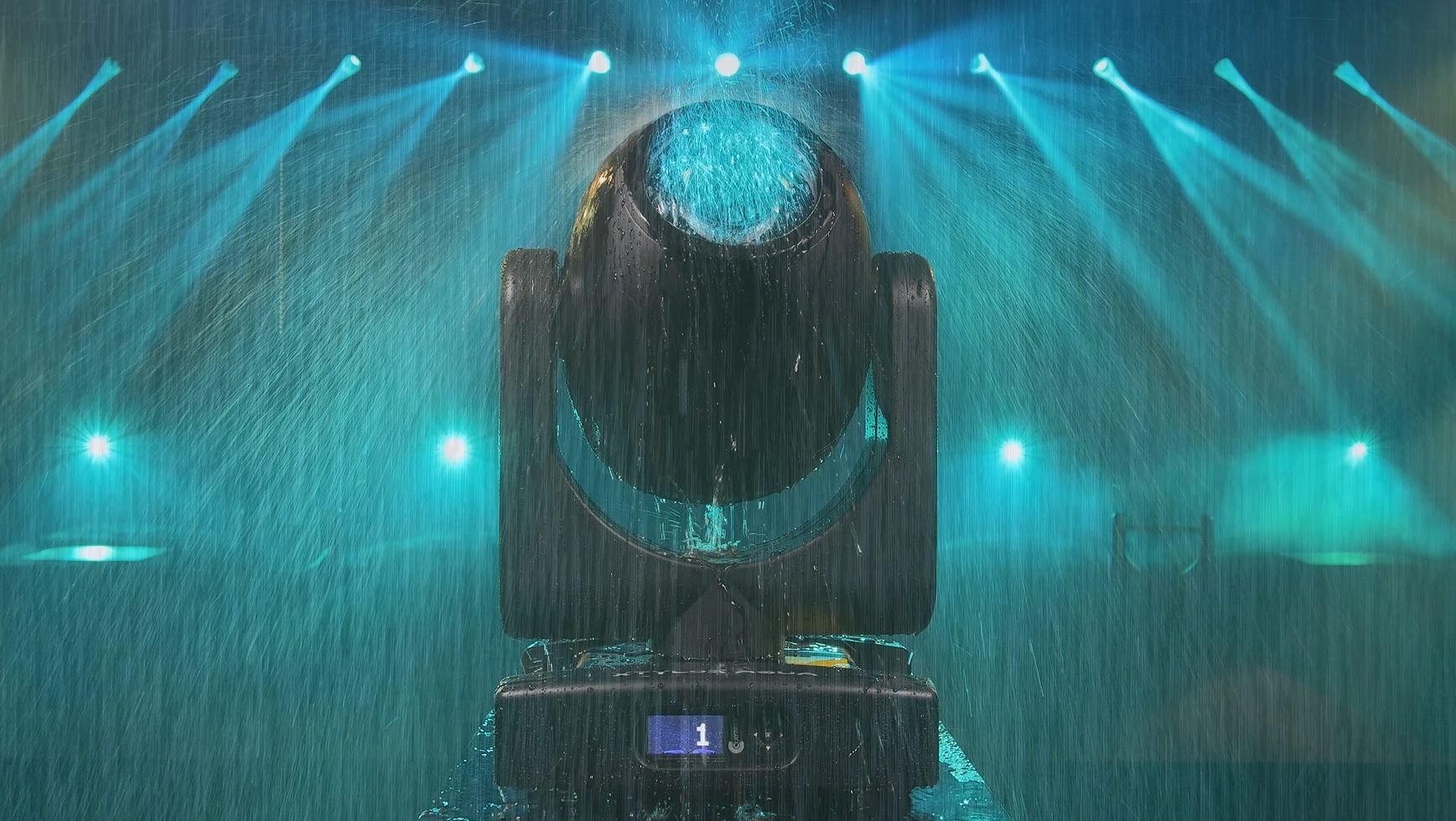

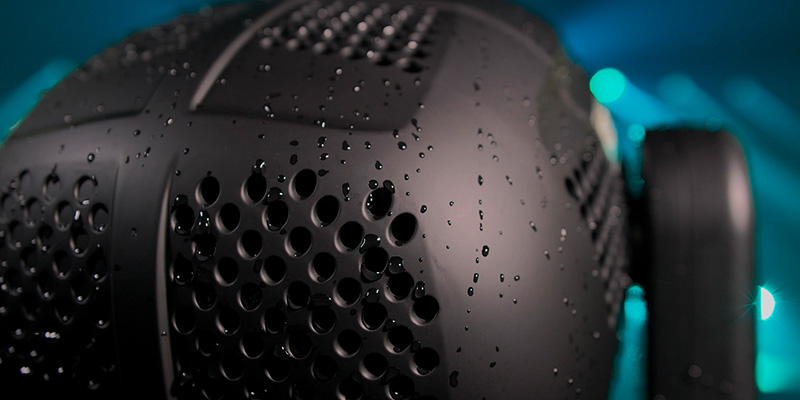

    While the initial thought of the Xtylos Aqua as an evolutionary product growing from the Xtylos fixture, it is revolutionary in design to withstand some of the harshest conditions with Marine Shield protection from the elements, and fitted with a fan to eliminate condensation from the front lens for consistent output and beam performance.

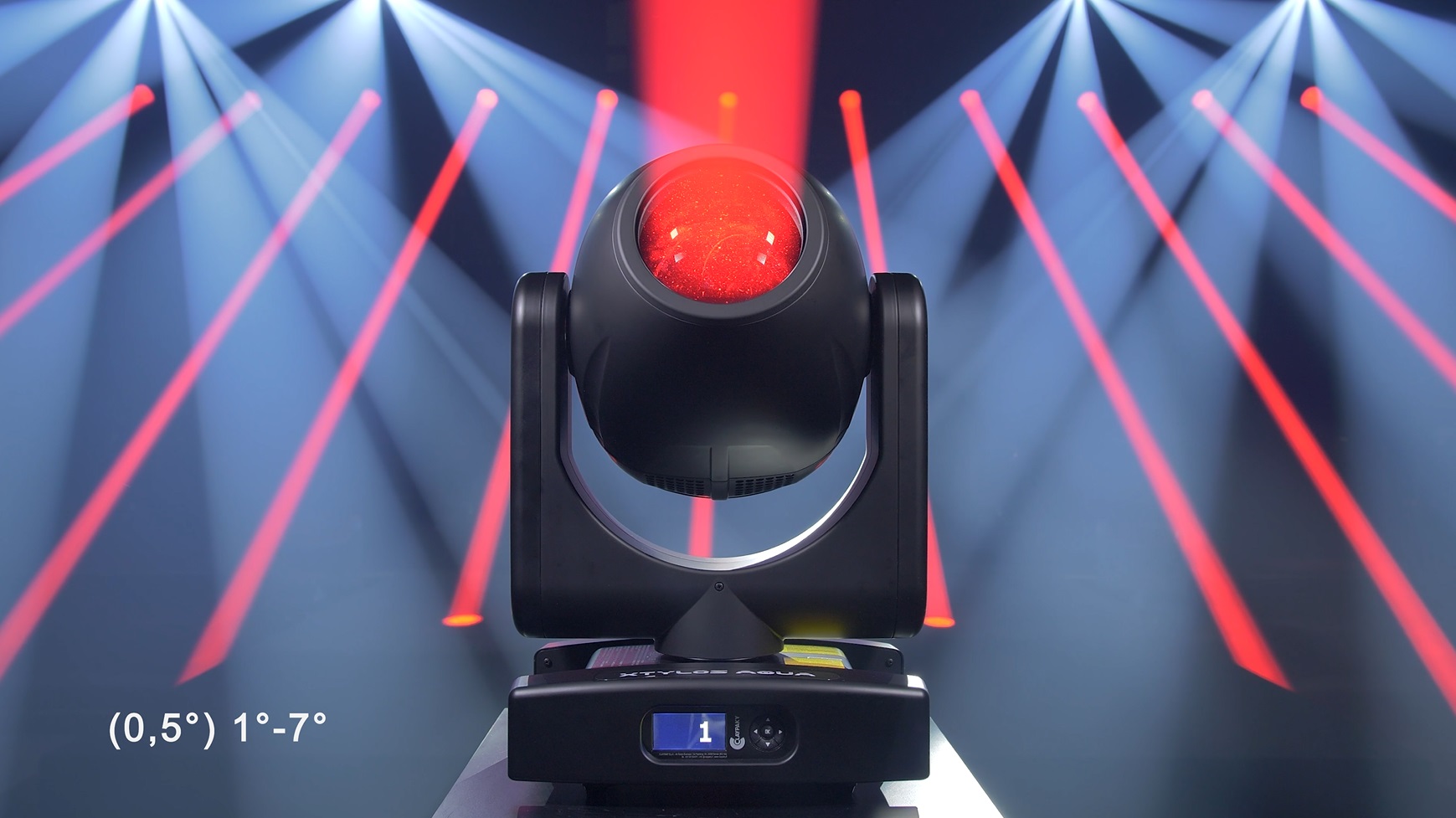

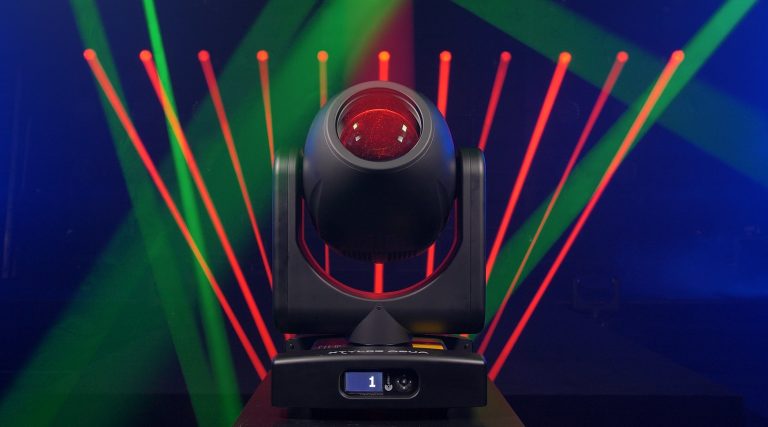

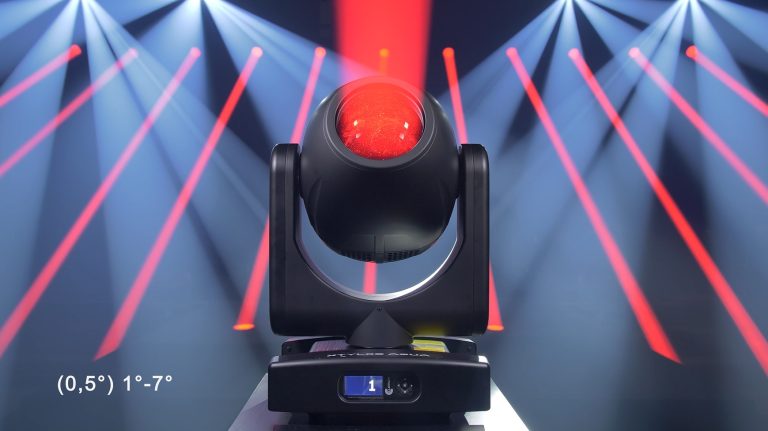

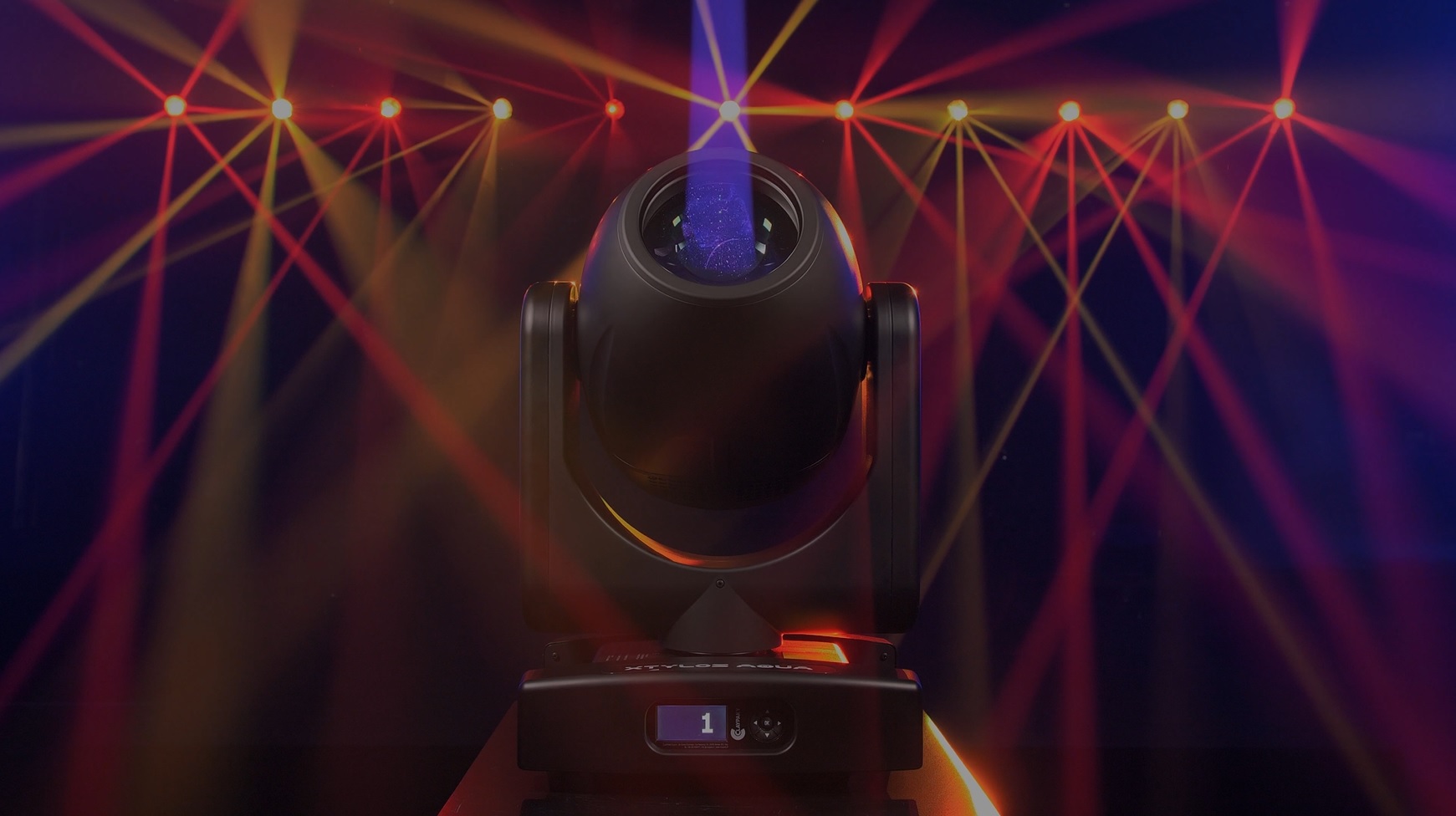

    Featuring a wireless DMX system integrated as standard, the Xtylos Aqua is a small, form factor, IP66-rated fixture powered by its innovative and proprietary RGB laser source. It offers the same effects and features as the original Xtylos, making it the first of its kind on the market. The fixture’s tight, uniform beam makes awe-inspiring aerial effects. Equipped with two gobo wheels (one rotating gobo wheel with seven rotating gobos and a static gobo wheel with 12 gobos), a prism wheel with three prisms, and a sixteen-facet prism on a dedicated channel (which can be overlapped with the prism wheel), the Xtylos Aqua gives designers the tools necessary for a wide range of effects and looks. In addition, the fixture’s beam apertures have an extremely narrow range of 1° to 7°, which can be reduced further to 0.5° using beam reducers.

    Ever since the introduction of the Xtylos fixture, Claypaky has been focused on developing new, pioneering technologies that offer new ways to motivate designers to reach further to inspire audiences. With the Xtylos, this can be done, both indoors and outdoors for television, theatre, tours, global sporting events, and much more.

    • Light Source

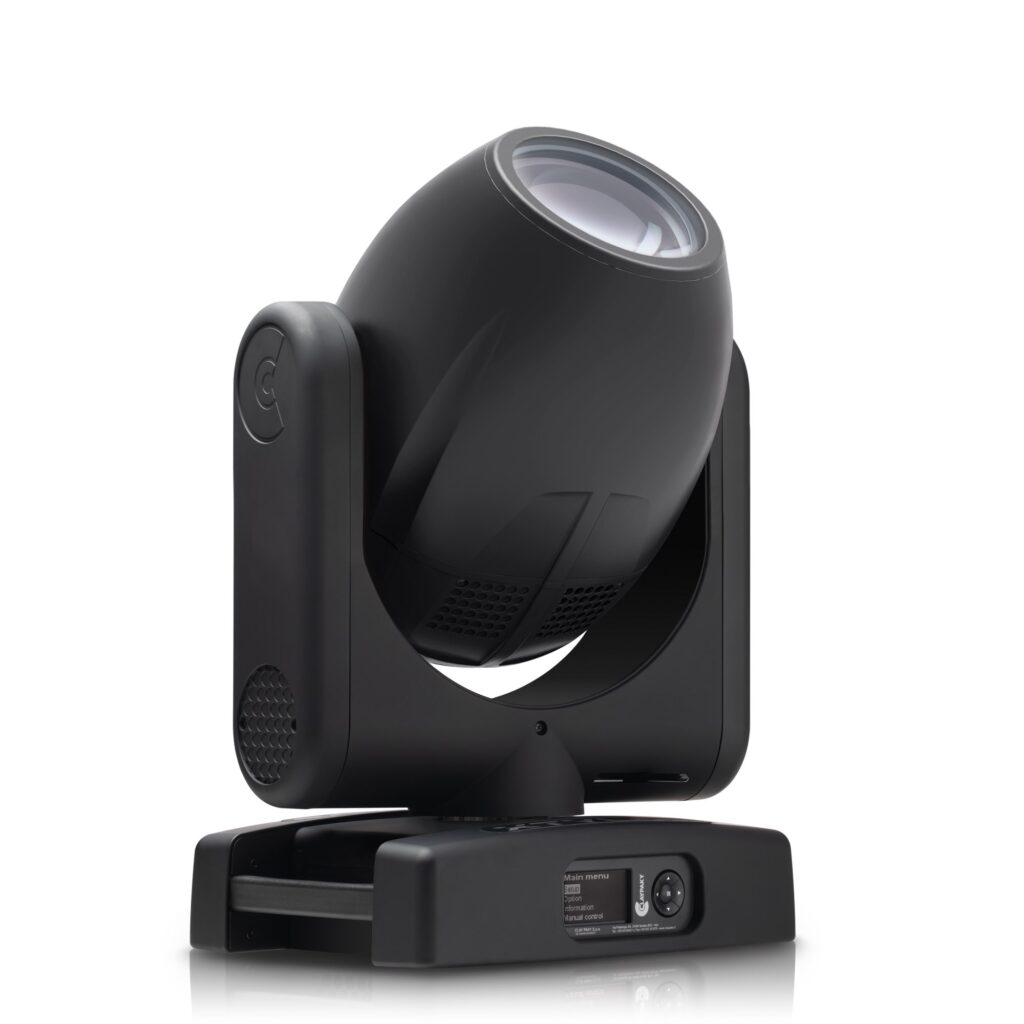

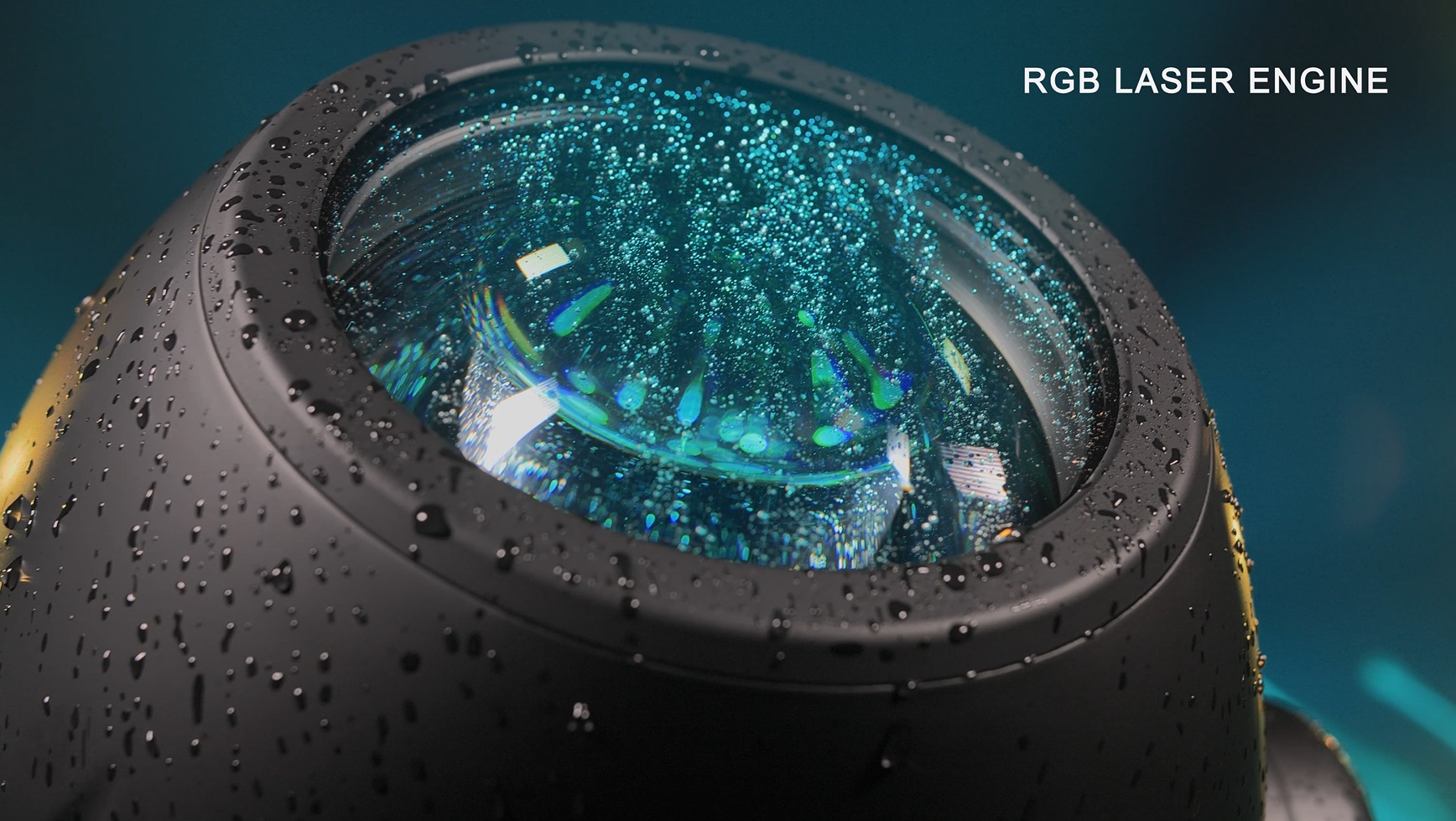

      Tailor-made RGB laser engine
    • Light Output
      Total lumen output: 2900 lm
    • Zoom range
      1°-7° range (up to 0.5° using beam diameter reducers)
    • Effects
      RGB laser based system; Linear virtual CTO 2500K – 6500K; 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos; 1 Static gobo wheel with 12 gobo slots (incl. 7 beam reducers); Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost; 16 Facets prism; Motorized Focus; 0-100% digital dimmer, 24 bit; Electronic Shutter and Strobe
    Data Sheet DMX Channels Photometrics PDF



    Save as pdf and print



    • Tailor-made laser engine, enclosed in a sealed module
    • Solid, flat field, saturated, ultra-concentrated light beam without any visible hotspots
    • Long lasting light source (20000 hours) with minimal decay*
      *It may vary depending on various factors, as type of use and environment


    • Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
    • Total lumen output: 2900 lm
    • Front lens diameter: 150 mm
    • High efficiency optical system


    • 54.2 dBA


    • Personalities: Single mode with 31 control channels
    • Integrated Wireless DMX system as standard (Wireless Solution)
    • Control Protocol: DMX, Art-Net, RDM, sACN
    • DMX and RDM connectors: Locking 5 pin XLR IN/OUT
    • Ethernet port: RJ45 IN
    • Power connector: PowerCon True1 IN/OUT
    • Built In Web Server


    • Colours:
      • RGB laser based system with derating to preserve laser diodes
      • Linear virtual CTO 2500K – 6500K
    • Gobos:
      • 1 Rotating gobo wheel with 7 HD Indexable and replaceable gobos
      • Ext diam. 25.9mm (cut @ 25mm)
      • Image diam. 11mm
      • Thickness 0.5mm
      • 1 Static gobo wheel with 12 gobo slots: 5 gobo and 7 beam reducers
    • Rotating Effects:
      • Rotating Prisms disk: Convex plane, Pyramid 6 facets, Linear 6 facets, Frost
      • 16 Facets prism with rotation in both direction at variable speed
    • Movement:
      • Tilt: 248° - 16bit
      • Pan: 540° - 16bit
      • Accuracy: Resolution ± 0.63° (Range 1.26°)
      • Automatic repositioning
      • Fast/Normal speed selectable by Function channel
      • Mechanical Pan/Tilt lock for safe transportation and maintenancee
    • Beam:
      • 1° aperture – beam mode
      • Motorized Focus – 16bit
    • Dimmer/Shutter:
      • Very precise 0-100% digital dimmer, dimmer Resolution: 24 bit
      • High speed electronic Shutter and Strobe


    • Long life self-charging battery

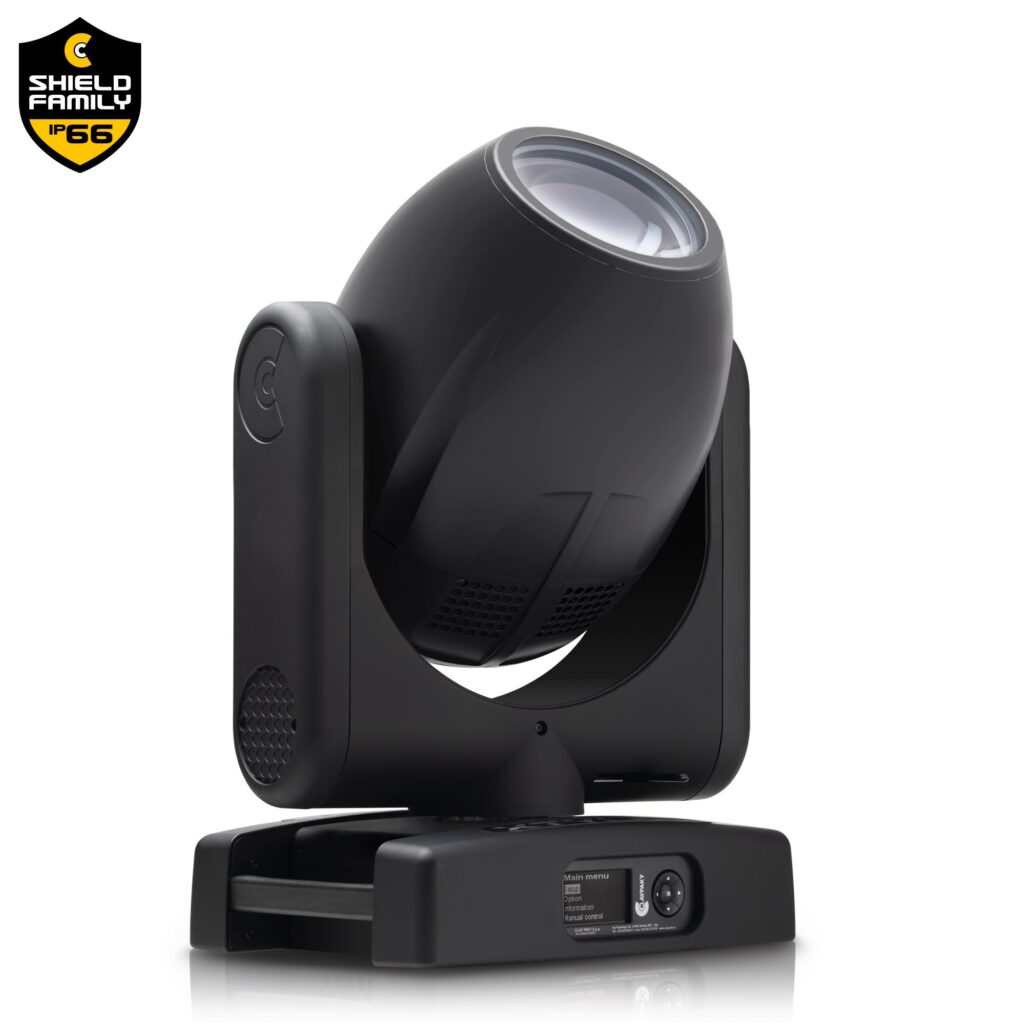

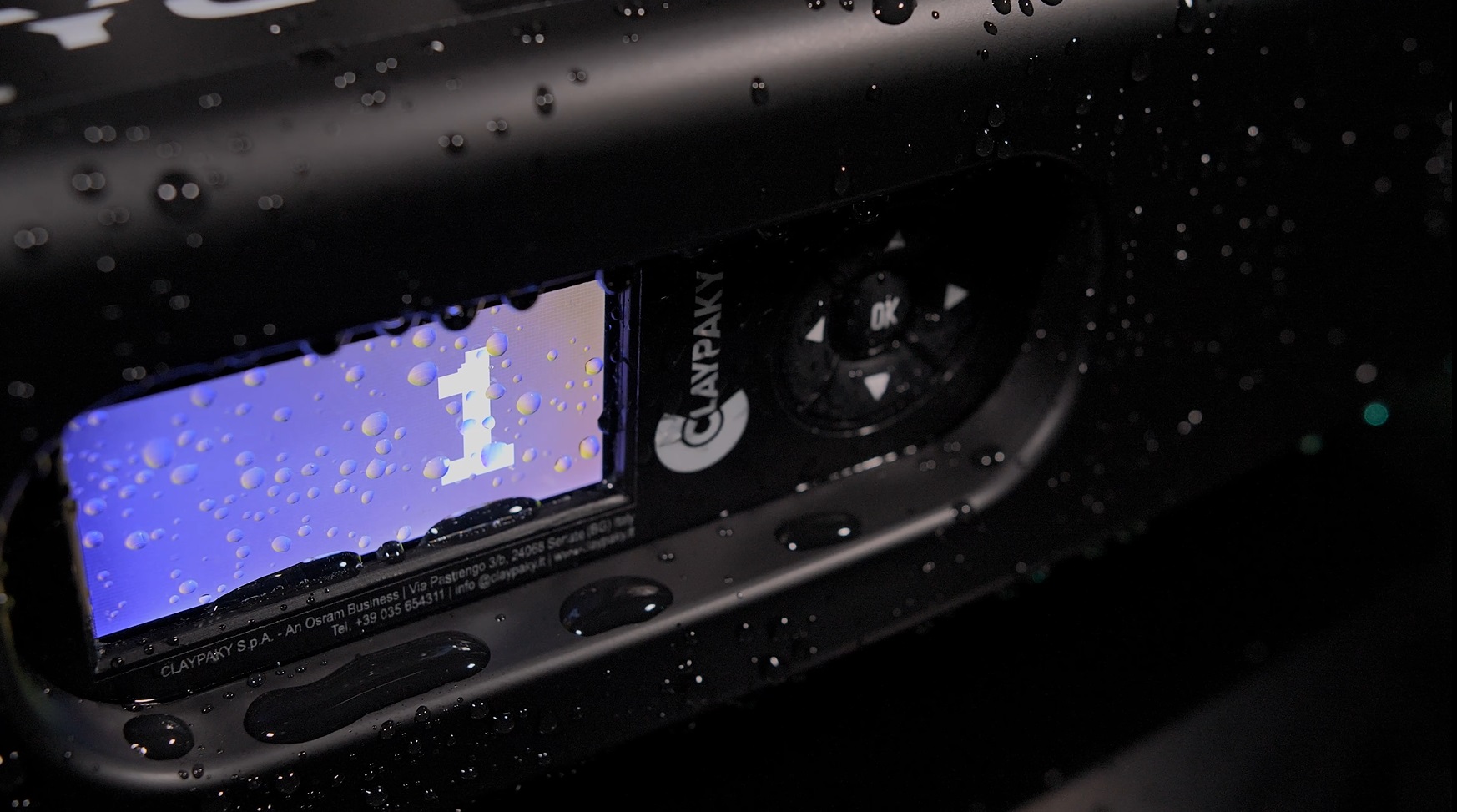

    • Display Graphic LCD backlit b/w Display
    • Firmware upload from another fixture
    • Firmware Upgrade via Web Server
    • Diagnostic
    • DMX monitoring
    • Remote access through RDM
    • CloudIO compatibility


    • Aluminum and steel structure with plastic covers
    • Two side handles for transportation
    • IP66 protection rate
    • Marine Grade protection


    • Working in any position
    • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
    • Optional safety chain


    • Operating Voltage: 100-240V, 50/60 Hz
    • Power Supply: Electronic auto range with active PFC
    • Max Power consumption: 400VA
    • Mains Out: Max 1600VA


    • Max ambient temperature 40°C (104°F)
    • Min ambient temperature -20°C (-4°F)
    • Max temperature of the external surface 60°C (140°F)
    • Total heat dissipation: 1366 BTU/hr ±10% / 1440 kJ/hr ±10%


    • Minimum distance of illuminated objects 10 meters (32’ 10”)
    • Minimum distance from flammable materials 0.2 meters (8”)
    • Thermally protected power supply (overheating and cooling failure)
    • Forced ventilation with axial fans and heat sink
    • Fuse T6A – 250V


    • In conformity with the European Directives
    • 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU - Electromagnetic Compatibility (EMC)
    • 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC - EcoDesign requirements for Energy-related Products (ErP)
    • cMETus Listed


    • Carton box + Polystyrene
    • Carton box + Foam shell
    • Flight case + Foam shell (2 positions)


    • 30.4 Kg (67.2 lbs).
    • 390x294mm (base dimension) – 608mm with vertical head (h)
    • Distance between two fixtures 400mm


    • Omega clamps: 2x183102/805 (included)
    • ETL Mains cable, 1.5mt. (Bare Ends / IP65 PowerConTrue1 connector): CAB0NL/802 (included)
    • Foam shell: F21323/001 (optional)
    • Flight case: F21323 (optional)
    • Safety Chain: 105041/001 (optional)
    • Clamp: C21070 (optional)
